CyberData 011097 Operation Manual

Voip v2 loudspeaker amplifier (poe)
Hide thumbs Also See for 011097:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual

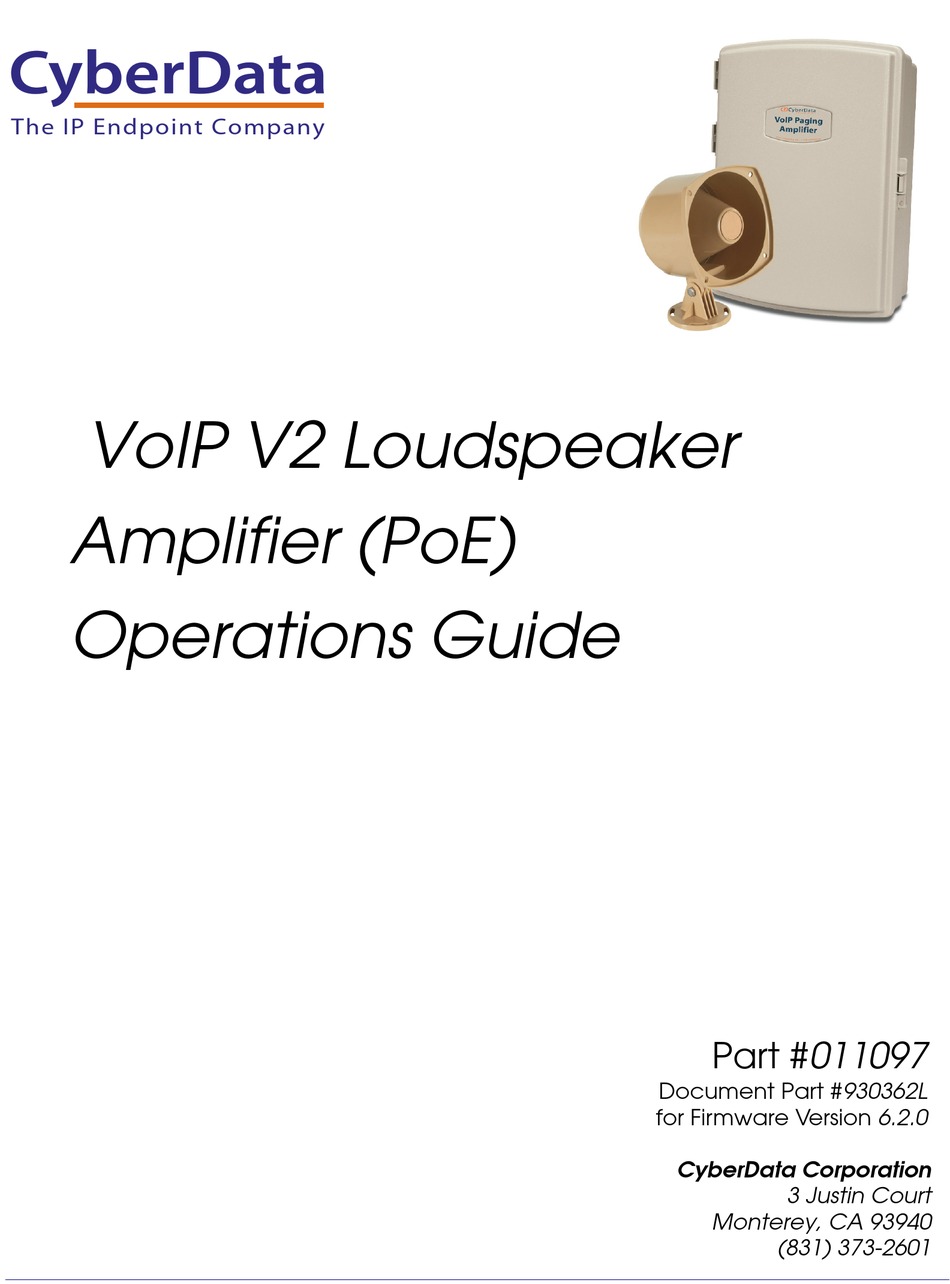

The IP Endpoint Company
VoIP V2 Loudspeaker
Amplifier (PoE)
Operations Guide
Part #011097
Document Part #930362L
for Firmware Version 6.2.0
CyberData Corporation
3 Justin Court
Monterey, CA 93940
(831) 373-2601

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 011097 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CyberData 011097

Summary of Contents for CyberData 011097

  • Page 1 The IP Endpoint Company VoIP V2 Loudspeaker  Amplifier (PoE) Operations Guide Part #011097 Document Part #930362L for Firmware Version 6.2.0 CyberData Corporation 3 Justin Court Monterey, CA 93940 (831) 373-2601...
  • Page 2 CyberData Corporation. This manual, and the products, software, firmware, and/or hardware described in this manual are the property of CyberData Corporation, provided under the terms of an agreement between CyberData Corporation and recipient of this manual, and their use is subject to that agreement and its terms.
  • Page 3 Important Safety Instructions • Section 1.2, "Typical System Installation" • Section A.1, "Important Safety Instructions" • Warning Text: “The PoE connector is intended for intra-building connections only and does not route to the outside plant.” Operations Guide 930362L CyberData Corporation...
  • Page 4 Potential safety hazards are identified in this manual through the use of words Danger, Warning, and Caution, the specific hazard type, and pictorial alert icons. CyberData Corporation 930362L Operations Guide...
  • Page 5 To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. GENERAL ALERT Warning The PoE connector is intended for intra-building connections only and does not route to the outside plant. GENERAL ALERT Operations Guide 930362L CyberData Corporation...
  • Page 6 Private Branch Exchange Power over Ethernet (as per IEEE 802.3af standard) RTFM Reset Test Function Management Session Initiated Protocol u-law A companding algorithm, primarily used in the digital telecommunication Unified Communications VoIP Voice over Internet Protocol Operations Guide 930362L CyberData Corporation...

  • Page 7: Table Of Contents

    C.3 Contact Information ........................68 C.4 Warranty ..........................69 C.4.1 Warranty & RMA Returns within the United States ............69 C.4.2 Warranty & RMA Returns outside of the United States ..........69 C.4.3 Spare in the Air Policy ....................70 Operations Guide 930362L CyberData Corporation...
  • Page 8 C.4.4 Return and Restocking Policy ..................70 C.4.5 Warranty and RMA Returns Page ................70 Index Operations Guide 930362L CyberData Corporation...

  • Page 9: Chapter 1 Product Overview

    1 Product Overview The CyberData SIP-enabled VoIP V2 Loudspeaker Amplifier (PoE) provides an easy method for implementing an IP-based overhead paging system for both new and legacy installations. With up to 25 watts of driving power (802.3at), the Amplifier provides direct drive of a standard Horn speaker and supports a line-out connector for connection to an external amplifier.

  • Page 10: Typical System Installation

    To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. GENERAL ALERT Warning The PoE connector is intended for intra-building connections only and does not route to the outside plant. GENERAL ALERT Operations Guide 930362L CyberData Corporation...

  • Page 11: Product Features

    Direct speaker drive • User-uploadable tones • Simultaneous SIP and Multicast • Autoprovisioning • Line-In capability • Nightringer (can use outbound proxy) • Weather-resistant NEMA enclosure • Multiple credentials for registering with multiple SIP servers Operations Guide 930362L CyberData Corporation...

  • Page 12: Supported Protocols

    • Audio Encodings PCMU (G.711 mu-law) PCMA (G.711 A-law) Packet Time 20 ms 1.5 Supported SIP Servers The following link contains information on how to configure the Loudspeaker Amplifier for the supported SIP servers: http://www.cyberdata.net/support/server/index.html Operations Guide 930362L CyberData Corporation...

  • Page 13: Product Specifications

    Line In: Input Signal Amplitudes 2.0 VPP maximum Input Impedance 10k Ohm Line Out: Output Signal Amplitudes 2.0 VPP maximum Output Level +2dBm nominal Total Harmonic Distortion 0.5% maximum Output Impedance 10k Ohm Part Number 011097 Operations Guide 930362L CyberData Corporation...

  • Page 14: Dimensions

    1.7 Dimensions Figure 1-3. Dimensions...

  • Page 15: Chapter 2 Installing The Voip V2 Loudspeaker Amplifier

    Table 2-1. Parts List Quantity Part Name Illustration Loudspeaker Amplifier Assembly Enclosure Installation Quick Reference Guide Loudspeaker Amplifier Mounting Accessory Kit, RoHS  (part #071057A) which includes: (3)Plastic Ribbed Anchors (3) #6 Sheet Metal Screws Operations Guide 930362L CyberData Corporation...

  • Page 16: Loudspeaker Amplifier Setup

    Installing the VoIP V2 Loudspeaker Amplifier Loudspeaker Amplifier Setup 2.2 Loudspeaker Amplifier Setup Set up and configure each Loudspeaker Amplifier before you mount it. CyberData delivers each Loudspeaker Amplifier with the factory default values indicated in Table 2-2: Table 2-2. Factory Default Settings—Default of Network...

  • Page 17: Loudspeaker Amplifier Components

    Status LED (GREEN) A steady LED confirms that the Loudspeaker Amplifier is oper- ational. The LED will blink during a page when it is online. Network Activity LED (GREEN) Network Link LED (GREEN/YELLOW) Speaker Volume Operations Guide 930362L CyberData Corporation...

  • Page 18: Loudspeaker Amplifier Nema Box Components

    2.2.2 Loudspeaker Amplifier NEMA Box Components Figure 2-5 shows all of the NEMA box components of the loudspeaker amplifier. Figure 2-5. Loudspeaker Amplifier Components—AC powered DIP Switches RTFM Switch Ethernet Connection LEDs Volume Speaker Connection Operations Guide 930362L CyberData Corporation...

  • Page 19: Connecting The Loudspeaker Amplifier

    802.3af power injector and hub. 8 Ohms Use 16 gauge wire coming out of screw terminals. Note: The maximum wire length from the amplifier to the speaker should not be more than 25 feet. 16 gauge wire Operations Guide 930362L CyberData Corporation...
  • Page 20 8 Ohms 8 Ohms 16 gauge wire 25 feet maximum distance 2 speakers in parallel (4 Ohm total) Twist wire nuts Note: Use wire nuts to connect wire from the speakers to 16 gauge wire. Operations Guide 930362L CyberData Corporation...

  • Page 21: Loudspeaker Amplifier Dip Switches

    Force high gain amplifier. If set to high power, the unit will not power ON with 802.3af compliant switch. You must use a power injector in this mode (CyberData part number 010867A). Table 2-5. DIP Switch 2 Settings DIP Switch Setting Description Manual Vol.

  • Page 22: Voip V2 Loudspeaker Amplifier System Installation And Connection Options

    Figure 2-12. Line-In Connection When line-in is enabled on the V2 Amplifier, the audio received from the line-in Line Plug connection will be played to the speaker(s) and line- out connection as the low- Amplifier est priority audio. Operations Guide 930362L CyberData Corporation...
  • Page 23 (up to 25 watts) Figure 2-14. Speaker Out Connection 802.3af Compliant Ethernet Switch High Power PoE Switch PoE Injector (High power mode with Injector) 011068 Loudspeaker VoIP Phone IP PBX Server Loudspeaker Amplifier (up to 25 watts) Operations Guide 930362L CyberData Corporation...

  • Page 24: Loudspeaker Amplifier Jumpers

    JTAG Interference—Factory Only Console Port—Factory Only 2.2.7 Ethernet Connection Table 2-7 for details about the Loudspeaker Amplifier connection. Table 2-7. Loudspeaker Amplifier Connection Connection Connection Details Location Ethernet Use a RJ 45 cable. VoIP V2 Loudspeaker Amplifier Operations Guide 930362L CyberData Corporation...

  • Page 25: Loudspeaker Type

    Installing the VoIP V2 Loudspeaker Amplifier Loudspeaker Amplifier Setup 2.2.8 Loudspeaker Type Using the amplified output, the CyberData VoIP V2 Loudspeaker Amplifier supports the 011068 Loudspeaker or equivalent unamplified loudspeaker. Figure 2-16. 011068 Loudspeaker 2.2.9 Cabling/Wiring Using the amplified output, you may connect a 011068 loudspeaker or equivalent unamplified speaker to a Loudspeaker Amplifier with good quality speaker wire that is 16 gauge and limited to 25 feet in length.

  • Page 26: Confirm Operation

    Green The Activity LED blinks to indicate network traffic. Figure 2-17. Loudspeaker Amplifier LEDs—Power and Link Power LED (blue/green) Link LED (green/yellow) Figure 2-18. Loudspeaker Amplifier LEDs—Status and Activity Status LED (green) Activity LED (green)(yellow) Operations Guide 930362L CyberData Corporation...

  • Page 27: Confirm The Ip Address And Test The Audio

    2.2.12 Adjust the Volume There are two ways to adjust the volume for the Loudspeaker Amplifier: • Speaker Volume (0-9) setting on the Device Configuration page • The external Volume dial on the Loudspeaker Amplifier face Operations Guide 930362L CyberData Corporation...
  • Page 28 2. Turn the external Volume dial (Figure 2-20) on the Loudspeaker Amplifier face. Note For the lineout volume, the volume is fixed and the volume control is adjusted through an external amplifier. Figure 2-20. External Volume Dial External volume dial Operations Guide 930362L CyberData Corporation...

  • Page 29: Configure The Loudspeaker Amplifier Parameters

    Table 2-9. Factory Default Settings Parameter Factory Default Setting IP Addressing DHCP IP Address 10.10.10.10 Web Access Username admin Web Access Password admin Subnet Mask 255.0.0.0 Default Gateway 10.0.0.1 a. Default if there is not a DHCP server present. Operations Guide 930362L CyberData Corporation...

  • Page 30: Loudspeaker Amplifier Web

    Link to the Sensor Configuration page. Link to the Multicast Configuration page. Link to the Audio Configuration page. Link to the Event Configuration page. Link to the Autoprovisioning Configuration page. Link to the Update Firmware page. Operations Guide 930362L CyberData Corporation...

  • Page 31: Log In To The Configuration Home Page

    Note You may also download CyberData’s VoIP Discovery Utility program which allows you to easily find and configure the default web address of the CyberData VoIP products.   CyberData’s VoIP Discovery Utility program is available on the VoIP V2 Loudspeaker Amplifier product page at: http://www.cyberdata.net/support/voip/discovery_utility.html...
  • Page 32 Configure the Loudspeaker Amplifier Parameters 2. When prompted, use the following default Web Access Username and Web Access Password to access the Home Page (Figure 2-21): Web Access Username: admin Web Access Password: admin Figure 2-21. Home Page Operations Guide 930362L CyberData Corporation...
  • Page 33 Shows the current status of Backup Server 2. Click the Save button to save your configuration settings. Note: You need to reboot for changes to take effect. Click on the Reboot button to reboot the system. Operations Guide 930362L CyberData Corporation...

  • Page 34: Configure The Device Parameters

    Installing the VoIP V2 Loudspeaker Amplifier Configure the Loudspeaker Amplifier Parameters 2.3.3 Configure the Device Parameters 1. Click the Device Configuration button to open the Device Configuration page. See Figure 2- Figure 2-22. Device Configuration Page Operations Guide 930362L CyberData Corporation...
  • Page 35 Note: If the test audio button is pressed while music is playing via the Enabled Line In feature, the music will be muted during the test audio message. Operations Guide 930362L CyberData Corporation...
  • Page 36 Table 2-12. Device Configuration Parameters (continued) Web Page Item Description Click on the Test Relay button to do a relay test. Click on the Reboot button to reboot the system. 3. After changing the parameters, click the Save button. Operations Guide 930362L CyberData Corporation...

  • Page 37: Configure The Network Parameters

    Installing the VoIP V2 Loudspeaker Amplifier Configure the Loudspeaker Amplifier Parameters 2.3.4 Configure the Network Parameters 1. Click the Networking button to open the Network Configuration page (Figure 2-23). Figure 2-23. Network Configuration Page Operations Guide 930362L CyberData Corporation...
  • Page 38 Loudspeaker Amplifier must be rebooted for changes to take effect. 4. Connect the Loudspeaker Amplifier to the target network. 5. From a system on the same network as the Loudspeaker Amplifier, open a browser with the new IP address of the Loudspeaker Amplifier. Operations Guide 930362L CyberData Corporation...

  • Page 39: Configure The Sip Parameters

    2.3.5 Configure the SIP Parameters 1. Click SIP Config to open the SIP Configuration page (Figure 2-24). Note For specific server configurations, go to the IP-PBX Server Compatibility page at: http://www.cyberdata.net/support/server/index.html Figure 2-24. SIP Configuration Page Operations Guide 930362L CyberData Corporation...
  • Page 40 (default is 120 seconds) (range is 100 - ?). Unregister on Reboot* • When selected, the Loudspeaker Amplifier automatically unregisters when it is rebooted. • When not selected, the Loudspeaker Amplifier remains registered when it is rebooted. Operations Guide 930362L CyberData Corporation...
  • Page 41 Click the Save button to save your configuration settings. Note: You need to reboot for changes to take effect. Click on the Reboot button to reboot the system. 3. After changing the parameters, click Save to save the settings. Operations Guide 930362L CyberData Corporation...

  • Page 42: Configure The Nightringer Parameters

    Nightringer requires SIP Registration. Nightringer cannot be used in peer to peer mode. GENERAL ALERT 1. Click on the Nightringer button to open the Nightringer Configuration page. See Figure 2-27. Figure 2-25. Night Ringer Configuration Setup Operations Guide 930362L CyberData Corporation...
  • Page 43 Click the Save button to save your configuration settings. Note: You need to reboot for changes to take effect. Click on the Reboot button to reboot the system. 3. After changing the parameters, click on the Save button. Operations Guide 930362L CyberData Corporation...

  • Page 44: Configure The Sensor Configuration Parameters

    Calling a preset extension can be set up as a point-to-point call, but currently can't send delayed DTMF tones. 1. Click Sensor Config to open the Sensor Configuration page (Figure 2-26). Figure 2-26. Sensor Configuration Page Operations Guide 930362L CyberData Corporation...
  • Page 45 Click the Save button to save your configuration settings. Note: You need to reboot for changes to take effect. Click on the Reboot button to reboot the system. 3. After changing the parameters, click Save Settings. Operations Guide 930362L CyberData Corporation...

  • Page 46: Configure The Multicast Configuration Parameters

    Multicast configuration provides the ability to join up to 10 paging zones. A paging zone can consist of one, or many, CyberData multicast group-enabled Loudspeaker Amplifiers. There is no limit to how many Loudspeaker Amplifiers can be in a given paging zone. Each multicast group is defined by a multicast address and port number.
  • Page 47 Installing the VoIP V2 Loudspeaker Amplifier Configure the Loudspeaker Amplifier Parameters 1. Click on the Multicast Configuration button to open the Multicast Configuration page. See Figure 2-27. Figure 2-27. Multicast Configuration Setup Operations Guide 930362L CyberData Corporation...
  • Page 48 Click the Save button to save your configuration settings. Note: You need to reboot for changes to take effect. Click on the Reboot button to reboot the system. 3. After changing the parameters, click on the Save button. Operations Guide 930362L CyberData Corporation...
  • Page 49 When the device is playing back buffered audio and this buffered audio is interrupted by a higher priority stream, once the higher priority streams is finished, the device will restart the lower priority stream from the beginning. Operations Guide 930362L CyberData Corporation...

  • Page 50: Configure The Audio Parameters

    Click the Audio Config button to open the Audio Configuration page. The Audio Configuration page is used to add custom audio to the board. User uploaded audio will take precedence over the audio files shipped with the Loudspeaker Amplifier. Figure 2-28. Audio Configuration Page Operations Guide 930362L CyberData Corporation...
  • Page 51 Installing the VoIP V2 Loudspeaker Amplifier Configure the Loudspeaker Amplifier Parameters Figure 2-29. Audio Configuration Page (continued) Operations Guide 930362L CyberData Corporation...
  • Page 52 '9' corresponds to the spoken word “nine.” Corresponds to the spoken word “dot.” (24 character limit) Audiotest Corresponds to the message “This is the CyberData IP speaker test message...” (24 character limit) Pagetone Corresponds to a simple tone that is unused by default (24 character limit).
  • Page 53 Web Page Item Description The Save button will download a new user audio file to the board once you've selected the file by using the Browse button. The Save button will delete any pre-existing user-uploaded audio files. Operations Guide 930362L CyberData Corporation...

  • Page 54: User-Created Audio Files

    RIFF (little-endian) data, WAVE audio, Microsoft PCM, 16 bit, mono 8000 Hz You can use the free utility Audacity to convert audio files into this format. See Figure 2-30 through Figure 2-32. Figure 2-30. Audacity 1 Figure 2-31. Audacity 2 Operations Guide 930362L CyberData Corporation...
  • Page 55 Configure the Loudspeaker Amplifier Parameters When you export an audio file with Audacity, save the output as: • WAV (Microsoft) signed 16 bit PCM. Figure 2-32. WAV (Microsoft) signed 16 bit PCM WAV (Microsoft) signed 16 bit PCM Operations Guide 930362L CyberData Corporation...

  • Page 56: Configure The Event Parameters

    Click the Event Config button to open the Event Configuration page (Figure 2-33). The Event Configuration page specifies a remote server that can be used to receive HTTP POST events when actions take place on the board. Figure 2-33. Event Configuration Page Operations Guide 930362L CyberData Corporation...
  • Page 57 Click the Save button to save your configuration settings. Note: You need to reboot for changes to take effect. Click on the Test Event button to test an event. Click on the Reboot button to reboot the system. Operations Guide 930362L CyberData Corporation...
  • Page 58 Here are example packets for every event: POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 197 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>POWERON</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 199 Content-Type: application/x-www-form-urlencoded <?xml version="1.0"...
  • Page 59 Installing the VoIP V2 Loudspeaker Amplifier Configure the Loudspeaker Amplifier Parameters Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 205 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>CALL_TERMINATED</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 197 Content-Type: application/x-www-form-urlencoded <?xml version="1.0"...
  • Page 60 Installing the VoIP V2 Loudspeaker Amplifier Configure the Loudspeaker Amplifier Parameters Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>RELAY_DEACTIVATED</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0"...

  • Page 61: Configure The Autoprovisioning Parameters

    Installing the VoIP V2 Loudspeaker Amplifier Configure the Loudspeaker Amplifier Parameters 2.3.12 Configure the Autoprovisioning Parameters 1. Click the Autoprovisioning button to open the Autoprovisioning Configuration page.  Figure 2-22. Figure 2-34. Autoprovisioning Configuration Page Operations Guide 930362L CyberData Corporation...
  • Page 62 Click the Save button to save your configuration settings. Note: You need to reboot for changes to take effect. Click on the Reboot button to reboot the system. 3. After changing the parameters, click the Save button. Operations Guide 930362L CyberData Corporation...
  • Page 63 The board gets its autoprovisioning information from an XML-formatted file hosted from a TFTP server. CyberData will provide a template for this XML file and the user can modify it for their own use.
  • Page 64 3. The board downloads and writes the firmware file again. CyberData has timed a firmware upgrade at 140 seconds. Therefore, if you suspect the board is stuck in a loop, either remove or comment out the FirmwareVersion line in the XML file and let the board boot as it normally does.
  • Page 65 You can force a change to the audio files on the board by clicking the Delete button on the Audio Configuration page or by changing the autoprovisioning file with “default” set as the file name. Operations Guide 930362L CyberData Corporation...

  • Page 66: Upgrading The Firmware

    2. Unzip the Loudspeaker Amplifier version file. This file may contain the following: • Firmware file • Release notes 3. Log in to the Loudspeaker Amplifier home page as instructed in Section 2.3.2, "Log in to the Configuration Home Page". Operations Guide 930362L CyberData Corporation...
  • Page 67 7. The Loudspeaker Amplifier will automatically reboot when the upload is complete. 8. When the countdown finishes, the Upgrade Firmware page will refresh. The uploaded firmware filename should be displayed in the system configuration (indicating a successful upgrade and reboot). Operations Guide 930362L CyberData Corporation...
  • Page 68 Use the Choose File button to navigate to the location of the Intercom firmware file that you want to upload. Click on the Submit button to automatically upload the selected firmware and reboot the system. Operations Guide 930362L CyberData Corporation...

  • Page 69: Reboot The Loudspeaker Amplifier

    To reboot a Loudspeaker Amplifier, log in to the web page as instructed in Section 2.3.2, "Log in to the Configuration Home Page". 1. On the Home Page, click the Reboot button. See Figure 2-36. Figure 2-36. Home Page Reboot button Operations Guide 930362L CyberData Corporation...
  • Page 70 Installing the VoIP V2 Loudspeaker Amplifier Configure the Loudspeaker Amplifier Parameters 2. A normal restart will occur and you will see the following Reboot page (Figure 2-37). Figure 2-37. Reboot Page Operations Guide 930362L CyberData Corporation...

  • Page 71: Appendix A Mounting The Amplifier

    Electrical Hazard: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. GENERAL ALERT Warning The PoE connector is intended for intra-building connections only and does not route to the outside plant. GENERAL ALERT Operations Guide 930362L CyberData Corporation...

  • Page 72: Mount The Loudspeaker Amplifier

    The Loudspeaker Amplifier was designed for indoor use. Mounting it on the external part of a building will require additional hardware for weatherproofing, cabling access, and lightning suppression. Consult a certified electrician for details. Note For mounting, use the three #6 SHEET METAL SCREWS to secure the enclosure. Operations Guide 930362L CyberData Corporation...
  • Page 73 4. For wall mounting, use the three #6 x 1-1/4-inch Pan Head Phillip screws to secure the speaker. Figure A-1.. Figure A-1. Mounting the Enclosure 071057A 531032 #6 PLASTIC ANCHOR (3x) 151014 #6x1 1/4" PAN HEAD PHILLIP SCREW (3x) Operations Guide 930362L CyberData Corporation...

  • Page 74: Appendix B Setting Up A Tftp Server

    1. Install and start the software. 2. Select File Configure Security tab Transmit Only. 3. Make a note of the default directory name, and then move the firmware files to be uploaded to that directory. Operations Guide 930362L CyberData Corporation...

  • Page 75: Appendix C Troubleshooting/Technical Support

    2. Go to the support page for your product, and click on the FAQs tab. C.2 Documentation The documentation for this product is released in an English language version only. You can download PDF copies of CyberData product documentation by doing the following: 1. Go to the following URL: http://www.cyberdata.net/products/voip/digitalanalog/loudspeakerampv2/docs.html 2.

  • Page 76: Contact Information

    3 Justin Court  Monterey, CA 93940  Attention: RMA "your RMA number" RMA Status Form If you need to inquire about the repair status of your product(s), please use the CyberData RMA Status form at the following web address: http://www.cyberdata.net/support/rmastatus.html Operations Guide...

  • Page 77: Warranty

    If an End of Life device cannot be repaired, the replacement offered may be the current version of the device. Products shipped to CyberData, both within and out of warranty, are shipped at the expense of the customer. CyberData will pay return shipping charges for repaired products.

  • Page 78: Spare In The Air Policy

    Warranty C.4.3 Spare in the Air Policy CyberData now offers a Spare in the Air no wait policy for warranty returns within the United States and Canada. More information about the Spare in the Air policy is available at the following web address: http://www.cyberdata.net/support/warranty/spareintheair.html...
  • Page 79 NEMA box 10 how to use and connect 11 contact information 68 low power mode 11 contact information for CyberData 68 announcing an IP address 19 Current Network Settings 30 audio (buffered) 41 current network settings 30...
  • Page 80 MGROUP high power mode (amplified outputs) 12 MGROUP Name 40 home page 23, 24 model number label 1 http web-based configuration 4 mounting an amplifier 64 multicast 38 multicast configuration 38 Multicast IP Address 40 Operations Guide 930362L CyberData Corporation...
  • Page 81 LED 9, 18 enable SIP operation 32 power, connecting to loudspeaker amplifier 11 local SIP port 32 priority user ID 32 assigning 41 SIP (session initiation protocol) 4 product SIP configuration 31 configuring 21 Operations Guide 930362L CyberData Corporation...
  • Page 82 & RMA returns outside of the United States 69 SIP server backups 32 warranty and RMA returns page 70 SIP servers supported 4 warranty policy at CyberData 69 SIP settings 32 web access password 8, 21 Spare in the Air Policy 70...
