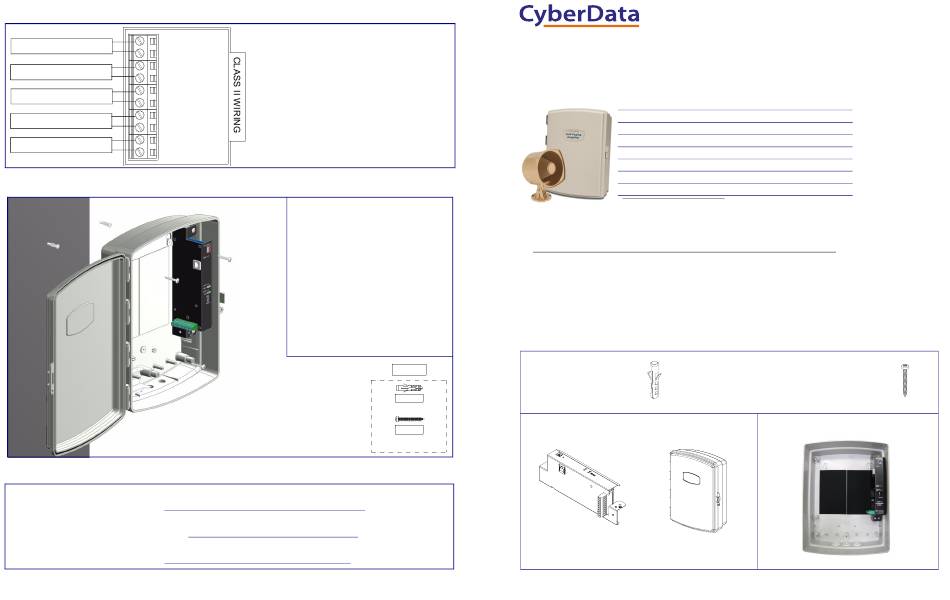

CyberData 011097 Installation Quick Reference

Connections
1-Sense (+)
Sensor Connection
2-GND
3-Relay COM
Relay Connection
4-Relay NO
5-Line-In(+)
Line-In Connection
6-Line-In(-)
7-Line-Out(+)
Line-Out Connection
8-Line-Out(-)
9-Spkr Out(+)
Speaker Connection
10-Spkr Out (-)
Mounting the Enclosure
Contacting CyberData
Sales: (831) 373-2601 ext. 334
Corporate Headquarters
Support: 831-373-2601 ext. 333
CyberData Corporation
Web: http://www.cyberdata.net/support/contactsupportvoip.php
3 Justin Court
RMA Dept: (831) 373-2601 ext. 136
Monterey, CA 93940, USA
Email: RMA@CyberData.net
RMA Status:
Phone: 831-373-2601
Fax: 831-373-4193
Warranty information is available at:
www.CyberData.net
Web: http://www.cyberdata.net/support/warranty/index.html
© 2014, CyberData Corporation, ALL RIGHTS RESERVED
To mount the enclosure:
1. Prepare holes for the screws.
2. Plug in the power adapter and use the
green Power light to verify that the
power is on.
3. Plug the Ethernet cable into the V2
Loudspeaker Amplifier. The yellow Link
light verifies the network connection.
4. For wall mounting, use the three
#6 x 1-1/4-inch Pan Head Phillip screws
to secure the speaker.
http://www.cyberdata.net/support/rmastatus.html
930344E
The IP Endpoint Company
Getting Started
• Download the VoIP V2 Loudspeaker Amplifier (PoE) Operations Guide PDF file from the Documents page at:
http://www.cyberdata.net/products/voip/digitalanalog/loudspeakerampv2/docs.html
• Create a plan for the locations of your paging amplifiers.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: The V2 Loudspeaker Amplifier enclosure is not rated for any AC voltages!
Parts
(1) Wall Mounting Kit
071057A
(3) #6 Plastic Anchors
531032
#6 PLASTIC ANCHOR (3x)
151014
#6x1 1/4" PAN HEAD
PHILLIP SCREW (3x)
Quick Reference Quick Reference
Installation Quick Reference

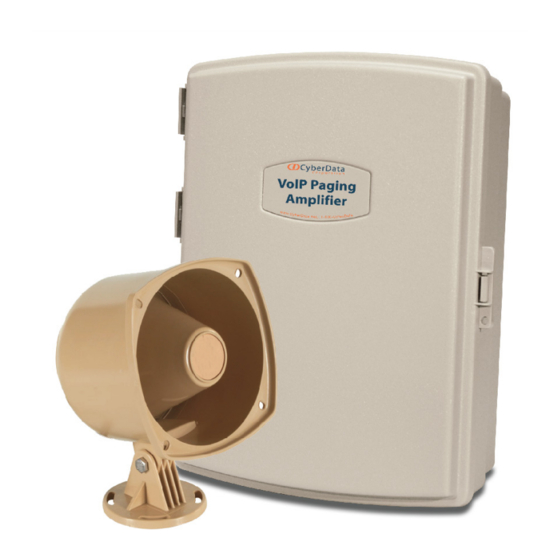

VoIP V2 Loudspeaker Amplifier
(PoE)
SIP Compliant
011097
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
(1) Enclosure
(1) Assembly
930344E
Factory Default Setting
DHCP
10.10.10.10
admin
admin
255.0.0.0
10.0.0.1
(3) #6 x 1-1/4-inch Pan Head Phillip Screws
View Inside of the Enclosure
© 2014, CyberData Corporation, ALL RIGHTS RESERVED
