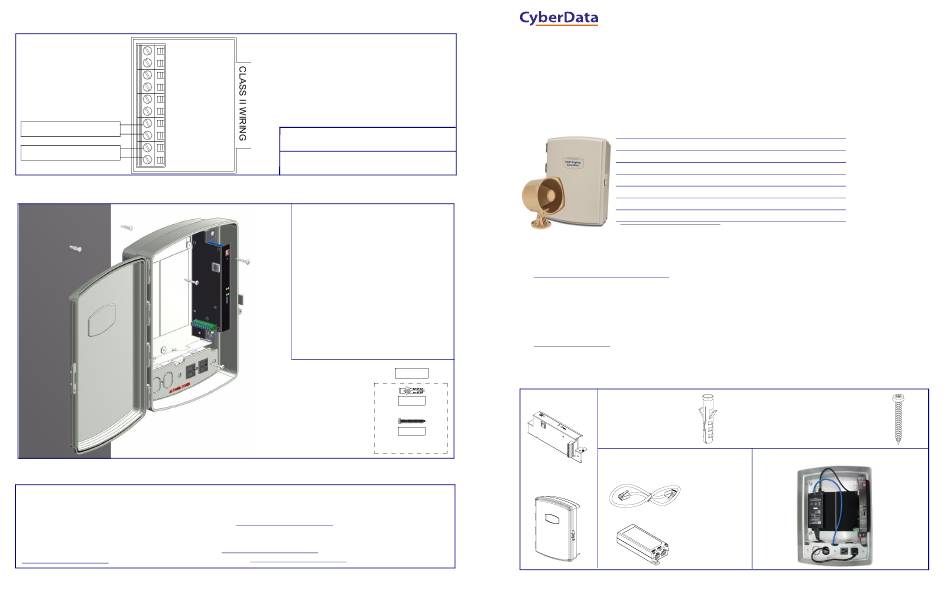

CyberData 011114 Installation Quick Reference

Connections
1-Sense (+)
2-GND
3-Relay COM
4-Relay NO
5-Line-In(+)
6-Line-In(-)
7-Line-Out(+)
Line-Out Connection
8-Line-Out(-)
9-Spkr Out(+)
Speaker Connection
10-Spkr Out (-)
Mounting the Enclosure
Contacting CyberData
Corporate Headquarters
Sales: (831) 373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: (831) 373-2601 ext. 136
RMA Email: RMA@CyberData.net
Phone: 831-373-2601
RMA Status:
Fax: 831-373-4193
Warranty Information:
http://www.cyberdata.net/
© 2016, CyberData Corporation, ALL RIGHTS RESERVED
Note: The Sense/Relay and Line-In features are
not supported with the Singlewire firmware.
Note: Line-Out is 10k Ohm at 2Vpp.
Speaker output is 8 Ohm.
To mount the enclosure:
1. Prepare holes for the screws.
2. Plug in the power adapter and use the
green Power light to verify that the
power is on.
3. Plug the Ethernet cable into the VoIP V2
Loudspeaker Amplifier. The yellow Link
light verifies the network connection.
4. For wall mounting, use the three
#6 x 1-1/4-inch Pan Head Phillip screws
to secure the speaker.
http://support.cyberdata.net/
http://support.cyberdata.net/
http://support.cyberdata.net/
930351C Quick Reference
The Singlewire-enabled VoIP V2 Loudspeaker Amplifier is compatible with InformaCast Version 4.0 and higher.
Getting Started
• Download the Operations Guide PDF file, from the Downloads tab at the following webpage:
http://www.cyberdata.net/voip/011114/
• Create a plan for the locations of your paging amplifiers.
• Prior to installation, consult local building and electrical code requirements.
Wiring the 125V AC Plug
The green wire with the yellow stripe is a ground connection for Electrostatic Discharge (ESD) protection,
and should not be removed.
To wire the 125V AC plug, consult a licensed electrician and the local building codes in your area.
071057A
V2 Loudspeaker Amplifier Parts
(1) Assembly
531032
#6 PLASTIC ANCHOR (3x)
151014
#6x1 1/4" PAN HEAD
PHILLIP SCREW (3x)
(1) Enclosure
Quick Reference

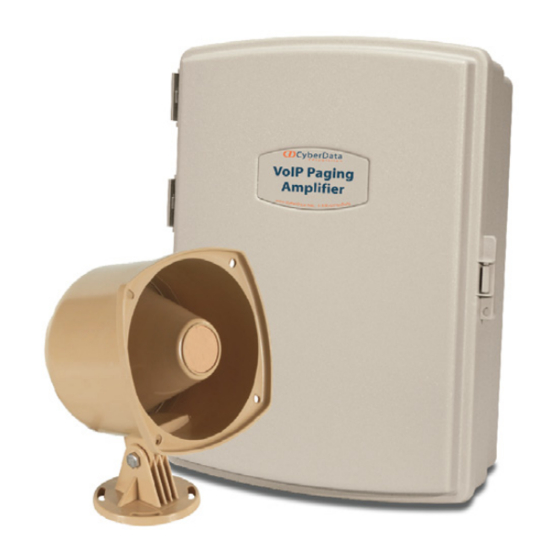

Installation Quick Reference
Singlewire-enabled
VoIP V2 Loudspeaker Amplifier
(AC-Powered)
011114
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address 10.10.10.10
Web Access Username admin
Web Access Password admin
a
Subnet Mask 255.0.0.0
a
Default Gateway 10.0.0.1
a. Default if there is not a DHCP server present.
(1) Wall Mounting Kit
(3) #6 Plastic Anchors (3) #6 x 1-1/4-inch Pan Head Phillip Screws
View Inside of the Enclosure
Additional Parts
(1) CAT 5e/CAT6 cable
(1) PoE Power Injector
930351C © 2016, CyberData Corporation, ALL RIGHTS RESERVED
