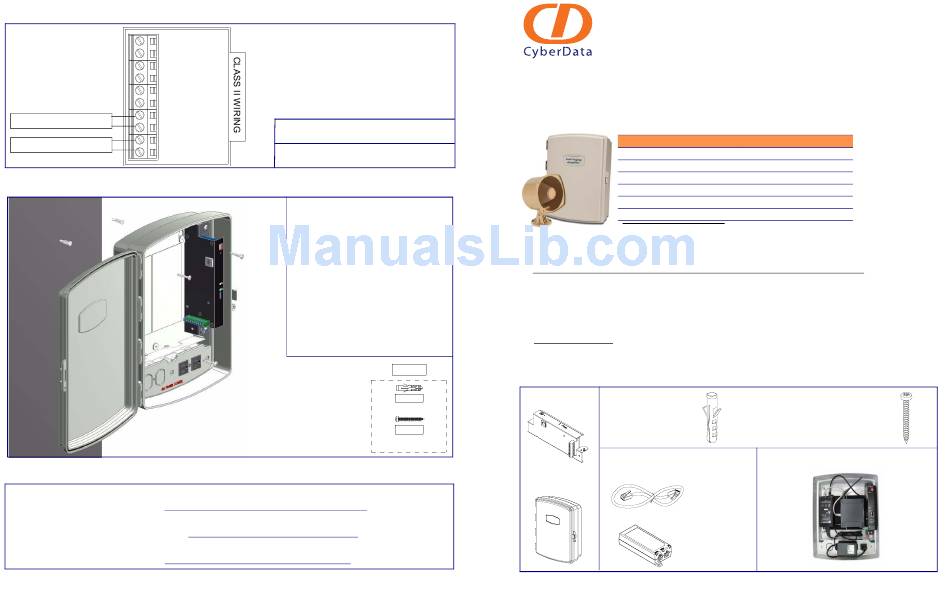

CyberData 11115 Installation Quick Reference

Connections
1-Sense (+)
2-GND
3-Relay COM
4-Relay NO
5-Line-In(+)
6-Line-In(-)
7-Line-Out(+)
Line-Out Connection
8-Line-Out(-)
9-Spkr Out(+)
Speaker Connection
10-Spkr Out (-)
Mounting the Enclosure
Contacting CyberData
Sales: (831) 373-2601 ext. 334
Corporate Headquarters
Support: 831-373-2601 ext. 333
CyberData Corporation
Web: http://www.cyberdata.net/support/contactsupportvoip.html
2555 Garden Road
RMA Dept: (831) 373-2601 ext. 136
Monterey, CA 93940, USA
Email: RMA@CyberData.net
RMA Status:
Phone: 831-373-2601
Fax: 831-373-4193
Warranty information is available at:
www.CyberData.net
Web: http://www.cyberdata.net/support/warranty/index.html
© 2010, CyberData Corporation, ALL RIGHTS RESERVED
Note: The Button/Relay and Line-In features are
not supported with the Singlewire firmware.
Note: Line-Out is 10k Ohm at 2Vpp.
Speaker output is 8 Ohm.
To mount the enclosure:
1. Prepare holes for the screws.
2. Plug in the power adapter and use the
green Power light to verify that the
power is on.
3. Plug the Ethernet cable into the VoIP V2
Loudspeaker Amplifier. The yellow
Link light verifies the network
connection.
4. For wall mounting, use the three
#6 x 1-1/4-inch Pan Head Phillip screws
to secure the speaker.
http://www.cyberdata.net/support/rmastatus.html
930352A
The Singlewire-enabled VoIP V2 Loudspeaker Amplifier is compatible with InformaCast Version 4.0 and higher.
Getting Started
• Download the Singlewire-enabled VoIP V2 Loudspeaker Amplifier Operations Guide from the Documents page at:
http://www.cyberdata.net/products/voip/digitalanalog/singlewireloudspeakerampv2/docs.html
• Create a plan for the locations of your paging amplifiers.
• Prior to installation, consult local building and electrical code requirements.
Wiring the 125V AC Plug
The green wire with the yellow stripe is a ground connection for Electrostatic Discharge (ESD) protection,
and should not be removed.
To wire the 125V AC plug, consult a licensed electrician and the local building codes in your area.
071057A
V2 Loudspeaker Amplifier Parts
531032 (1) Assembly
#6 PLASTIC ANCHOR (3x)
151014
#6x1 1/4" PAN HEAD
PHILLIP SCREW (3x)
(1) Enclosure
Quick Reference Quick Reference
Installation Quick Reference
Singlewire-enabled
VoIP V2 Loudspeaker Amplifier
(Wireless)
011115
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address 10.10.10.10
Web Access Username admin
Web Access Password admin
a
Subnet Mask 255.0.0.0
a
Default Gateway 10.0.0.1
a. Default if there is not a DHCP server present.
(1) Wall Mounting Kit
(3) #6 Plastic Anchors (3) #6 x 1-1/4-inch Pan Head Phillip Screws
Optional Parts (not included) View Inside of the Enclosure
(2) CAT 5e/CAT6 cable
(1) PoE Power Injector
930352A © 2010, CyberData Corporation, ALL RIGHTS RESERVED
