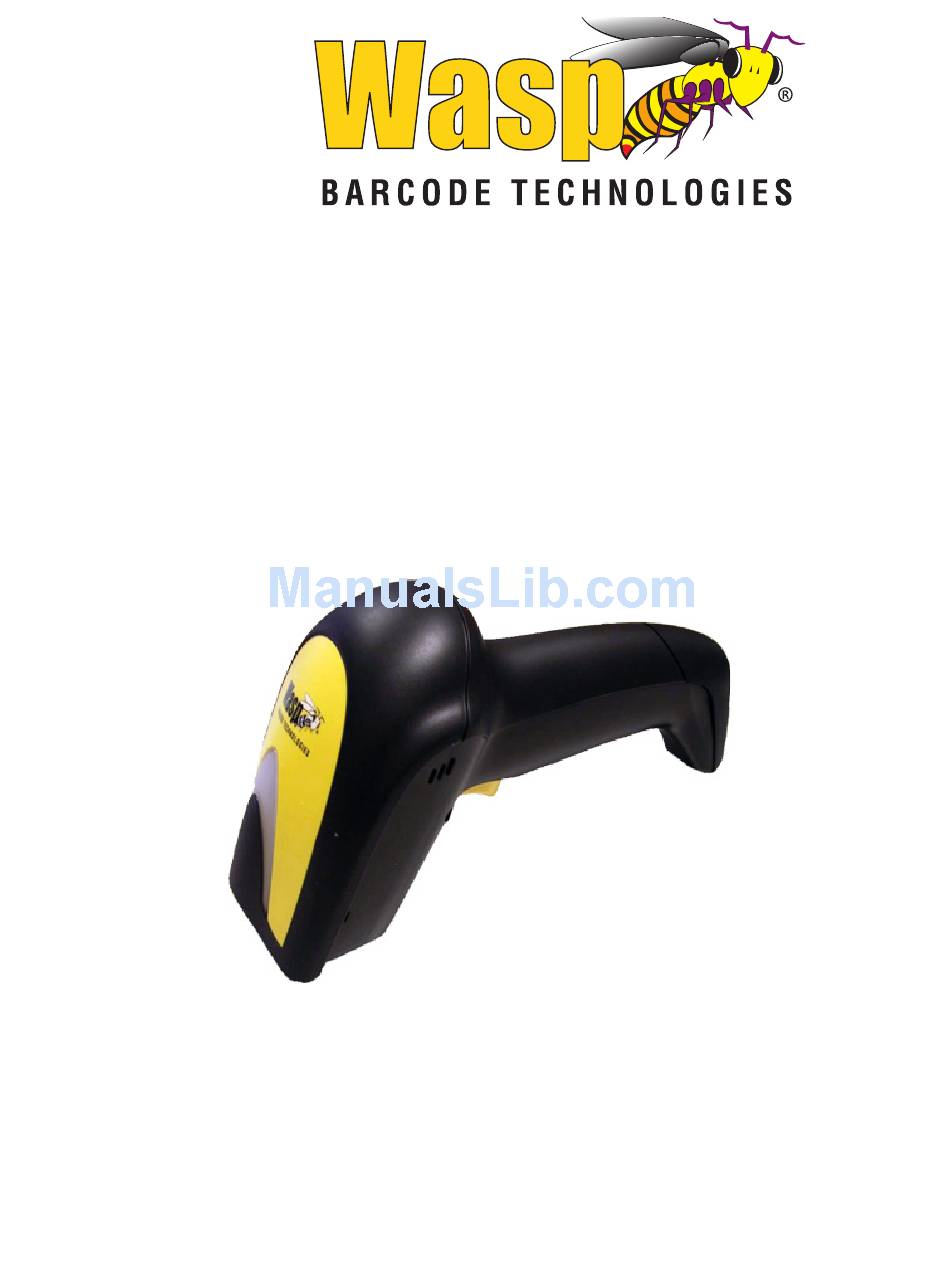

Page 1: Product Reference Guide
WLS9600 1D Laser Scanner USB Product Reference Guide...
Page 2 1400 10th Street Plano, Texas USA 75074 Tel. 214-547-4100 Tel. 214-547-4101 ©2000-2014 Wasp Barcode Technologies, Inc. (an unpublished work provided under license). Patents This product may be covered by one or more of the following patents: Design Patents: CN ZL200830142386.5; CN ZL200930006852.1; EP870787; USD599799; USD606076.
Page 3: Table Of Contents
About this Manual ......................................1 Overview ..................................................1 Manual Conventions ............................................. 2 References ........................................2 Technical Support ......................................2 Wasp Website Support ............................................2 Telephone Technical Support ..........................................2 About the Reader ......................................3 Programming the Reader ....................................3 Configuration Methods ............................................3 SETUP ........................................
Page 4 UPC-E ......................................83 UPC-E Enable/Disable ........................................83 UPC-E Check Character Transmission ..................................83 Expand UPC-E to EAN-13 ......................................84 Expand UPC-E to UPC-A .......................................84 UPC-E Number System Character Transmission ..............................85 UPC-E Minimum Reads .........................................85 GTIN FORMATTING ..................................86 EAN 13 (JAN 13) ................................... 87 WLS9600...
Page 5 Contents EAN 13 Enable/Disable .........................................87 EAN 13 Check Character Transmission ...................................87 EAN-13 Flag 1 Character .......................................88 EAN-13 ISBN Conversion ......................................88 EAN 13 Minimum Reads .......................................89 ISSN ......................................90 ISSN Enable/Disable ........................................90 EAN 8 (JAN 8) ....................................91 EAN 8 Enable/Disable ........................................91 EAN 8 Check Character Transmission ..................................91 Expand EAN 8 to EAN 13 ......................................92 EAN 8 Minimum Reads ........................................92...
Page 6 China Postal Code Decoding Level ..................................162 China Postal Code Length Control ..................................163 China Postal Code Set Length 1 ..................................... 164 China Postal Code Set Length 2 ..................................... 165 China Postal Code Character Correlation ................................166 China Postal Code Stitching ..................................... 166 CODABAR ....................................167 WLS9600...
Page 7 Contents Codabar Enable/Disable ......................................167 Codabar Check Character Calculation .................................. 167 Codabar Check Character Transmission ................................168 Codabar Start/Stop Character Transmission ..............................168 Codabar Start/Stop Character Set ..................................169 Codabar Start/Stop Character Match ................................... 169 Codabar Quiet Zones ........................................170 Codabar Minimum Reads ......................................
Page 8 Good Read LED Duration ..........................................253 Scanning Features ......................................254 Scan Mode ................................................254 Scanning Active Time ............................................255 Flash On Time ..............................................256 Flash Off Time ..............................................257 Technical Specifications ................................259 Standard Cable Pinouts .....................................261 LED and Beeper Indications ..................................262 Error Codes ........................................263 WLS9600...
Page 9 Contents Standard Defaults ..................................265 Sample Barcodes ..................................275 Keypad ......................................279 Scancode Tables ..................................283 Control Character Emulation ..................................283 Single Press and Release Keys ........................................283 Interface Type PC AT PS/2, USB-Keyboard or USB-Keyboard for APPLE ....................284 Interface type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode ......................286 Digital Interface ......................................288 IBM31xx 102-key ......................................289 IBM XT ..........................................290...
Page 10 Contents NOTES WLS9600...
Page 11: Introduction
Chapter 1 Introduction About this Manual This Product Reference Guide (PRG) is provided for users seeking advanced technical information, including connection, programming, maintenance and specifications. The Quick Reference Guide (QRG) and other publications associated with this product are downloadable free of charge from the website listed on the back cover of this manual. Overview Chapter 1, (this chapter) presents information about manual conventions, and an overview of the reader, its features and operation.
Page 12: Manual Conventions
Telephone Technical Support If you do not have internet or email access, you may contact Wasp Barcode Technologies technical support at 214-547-4100, or check the back cover of this manual for more contact information.
Page 13: About The Reader
If you need to modify any programmable settings, custom configuration can be accomplished by scanning the programming barcodes within this guide. The WLS9600 model has a Laser scan engine. Advancements in the LED technology used in the imager-based readers significantly improve the illumination of the target field of view, resulting in higher scan efficiency.
Page 14 Introduction NOTES WLS9600...
Page 15: Setup
Unpacking Check carefully to ensure the reader and any accessories ordered are present and undamaged. If any damage occurred during shipment, contact Wasp Technical Support. Information is shown page KEEP THE PACKAGING. Should the unit ever require service, it should be returned in its original shipping container.
Page 16: Installing The Interface Cable
Terminal) to supply reader power, use the approved power supply (AC Adapter). Plug the AC Adapter barrel connector into the socket on the RS-232 cable connector and the AC Adapter plug into a standard power outlet. Figure 2. RS-232 Connection WLS9600...
Page 17: Product Reference Guide
Installing the Interface Cable Keyboard Wedge Connection The Keyboard Wedge cable has a ‘Y’ connection from the reader. Connect the female to the male end from the keyboard and the remaining end at the keyboard port at the terminal/PC. Reference Figure Figure 3.
Page 18: Interface Selection
Some interfaces require the scanner to start in the disabled state when powered up. If additional scanner configuration is desired while in this state, pull the trig- ger and hold it for five seconds. The scanner will change to a state that allows pro- gramming with barcodes. WLS9600...
Page 19 Interface Selection Table 1. Available Interfaces RS-232 FEATURES RS-232 standard interface Select RS232-STD RS-232 Wincor-Nixdorf Set RS-232 Interface Select RS232-WN Features starting on page 19 RS-232 for use with OPOS/UPOS/JavaPOS Select RS-232 OPOS USB Com to simulate RS-232 standard interface Select USB-COM-STD USB-OEM FEATURES...
Page 20 WEDGE Interface Select KBD-AT-ALT Features starting on page 33 Keyboard Wedge for IBM AT PS2 with alternate key encoding but without external keyboard Select KBD-AT-ALT-NK PC/XT w/Standard Key Encoding Select KBD-XT Keyboard Wedge for IBM Terminal 3153 Select KBD-IBM-3153 WLS9600...
Page 21 Interface Selection KEYBOARD (continued) FEATURES Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make only keyboard Select KBD-IBM-M Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make break keyboard Select KBD-IBM-MB Keyboard Wedge for DIGITAL Terminals VT2xx, VT3xx, VT4xx Set KEYBOARD WEDGE Select KBD-DIG-VT...
Page 22: Customizing Configuration Settings
Laser Features: Describes options and programming specific to laser models. Software Version Transmission The software version of the device can be transmitted over the RS-232 and Keyboard interfaces by scanning the following label. Transmit Software Version WLS9600...
Page 23: Resetting The Product Configuration To Defaults
Customizing Configuration Settings Resetting the Product Configuration to Defaults Restore Custom Defaults If you aren’t sure what programming options are in your imager, or you’ve changed some options and want to restore the Custom Default Configuration that may have been saved in the scanner, scan the Restore Custom Default Configuration barcode below.
Page 24 Setup NOTES WLS9600...
Page 25: Configuration Using Barcodes
Chapter 3 Configuration Using Barcodes This and following sections provide programming barcodes to configure your reader by changing the default settings. For details about additional methods of programming, see Configuration Methods on page You must first enable your reader to read barcodes in order to use this Setup, starting on page 5 section.
Page 26: Reading Configuration Barcodes
You can then start again at the begin- ning. 4. Complete the programming sequence by scanning the ENTER/EXIT PROGRAM- MING barcode to exit Programming Mode. For detailed descriptions, programming information and examples for setting selected References, starting on page 231. configuration items, see WLS9600...
Page 27: Global Interface Features
ENTER/EXIT PROGRAMMING MODE Host Commands — Obey/Ignore GLOBAL INTERFACE FEATURES The following interface features are configurable by all interface types. Host Commands — Obey/Ignore This option specifies whether the reader will obey or ignore host commands. When set to ignore, the reader will ignore all host commands except for those necessary for: •...
Page 28 Global Interface Features ENTER/EXIT PROGRAMMING MODE NOTES WLS9600...
Page 29: Only Interface
RS-232 ONLY INTERFACE on page 20 on page 21 on page 21 on page 22 ARITY on page 23 ANDSHAKING ONTROL Use the programming barcodes in this section if modifications to the standard RS-232 interface settings are necessary to meet your system’s requirements. Additional settings which apply to "RS-232/USB-Com both the RS-232 and USB interfaces are available in the next section, Interfaces"...
Page 30: Baud Rate
231 for information on this feature. Baud Rate = 1200 Baud Rate = 2400 Baud Rate = 4800 DEFAULT Baud Rate = 9600 Baud Rate = 19,200 Baud Rate = 38,400 Baud Rate = 57,600 Baud Rate = 115,200 WLS9600...
Page 31: Data Bits
ENTER/EXIT PROGRAMMING MODE Data Bits Data Bits This parameter allows the reader to interface with devices requiring a 7-bit or 8-bit ASCII protocol for sending and receiving data. 7 Data Bits DEFAULT 8 Data Bits Stop Bits page 231 Set the number of stop bits to match host device requirements. See for more information on this feature.
Page 32: Parity
ENTER/EXIT PROGRAMMING MODE Parity This feature specifies parity required for sending and receiving data. Select the parity type according to host device requirements. See page 231 for more information. DEFAULT Parity = None Parity = Even Parity = Odd WLS9600...
Page 33: Handshaking Control
ENTER/EXIT PROGRAMMING MODE Handshaking Control Handshaking Control page 231 for more information about this feature. DEFAULT Handshaking Control = RTS Handshaking Control = RTS/CTS Handshaking Control = RTS/XON/XOFF Handshaking Control = RTS On/CTS Handshaking Control = RTS/CTS Scan Control Product Reference Guide...
Page 34: Rs-232/Usb-Com Interfaces
RS-232/USB-COM INTERFACES NTERCHARACTER ELAY on page 25 ASCII BEL on page 25 OT ON on page 26 ACK NAK O on page 27 PTIONS ACK C on page 28 HARACTER NAK C HARACTER on page 28 ACK NAK T IMEOUT ALUE on page 29 ACK NAK R...
Page 35: Intercharacter Delay
ENTER/EXIT PROGRAMMING MODE Intercharacter Delay Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments.
Page 36: Beep On Not On File
Beep On Not on File This option enables/disables the action of the reader to sound a three beep sequence upon receiving a Not-On-File (NOF) host command. Beep On Not On File = Disable DEFAULT Beep On Not On File = Enable WLS9600...
Page 37: Ack Nak Options
ENTER/EXIT PROGRAMMING MODE ACK NAK Options ACK NAK Options This enables/disables the ability of the reader to support the RS-232 ACK/NAK protocol. page 233 for more information. DEFAULT ACK/NAK Protocol = Disable ACK/NAK ACK/NAK Protocol = Enable for label transmission ACK/NAK Protocol = Enable for host-command acknowledge ACK/NAK Protocol = Enable for label transmission and host-...
Page 38: Ack Character
Setting to previously defined characters such as XON, XOFF, or host com- mands conflicts with normal operation of these characters. 8-bit data is not Data Bits recognized when the option has been set as 7 Data Bits. Select NAK Character Setting 0x15 ‘NAK’ Character DEFAULT WLS9600...
Page 39: Ack Nak Timeout Value
ENTER/EXIT PROGRAMMING MODE ACK NAK Timeout Value ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments.
Page 40: Ack Nak Error Handling
Valid NAK Character Indicate Transmission Failure This option enables/disables the reader’s ability to sound an error beep to indicate a transmission failure while in ACK/NAK mode Indicate Transmission Failure = Disable Indication DEFAULT Indicate Transmission Failure = Enable Indication WLS9600...
Page 41: Disable Character
ENTER/EXIT PROGRAMMING MODE Disable Character Disable Character Specifies the value of the RS-232 host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 42 ENTER/EXIT PROGRAMMING MODE NOTES WLS9600...
Page 43: Keyboard Interface
KEYBOARD INTERFACE OUNTRY on page 34 TATE on page 37 on page 38 UMLOCK on page 39 ONTROL HARACTERS on page 40 EDGE UIET NTERVAL NTERCHARACTER ELAY on page 41 NTERCODE ELAY on page 42 USB K EYBOARD PEED on page 43 USB K EYBOARD UMERIC...
Page 44: Country Mode
Country Mode = Belgium Country Mode = Britain Supports only the interfaces listed in the Country Mode fea- ture description. Country Mode = Croatia Supports only the interfaces listed in the Country Mode feature description. Country Mode = Czech Republic WLS9600...
Page 45 ENTER/EXIT PROGRAMMING MODE Country Mode Country Mode (continued) Supports only the interfaces listed in the Country Mode fea- ture description. Country Mode = Denmark Country Mode = France Country Mode = French Canadian Country Mode = Germany Supports only the interfaces listed in the Country Mode feature description.
Page 46 Country Mode = Portugal Supports only the interfaces listed in the Country Mode fea- ture description. Country Mode = Romania Supports only the interfaces listed in the Country Mode feature description. Country Mode = Slovakia Country Mode = Spain WLS9600...
Page 47: Caps Lock State
ENTER/EXIT PROGRAMMING MODE Caps Lock State Country Mode (continued) Country Mode = Sweden Supports only the interfaces listed in the Country Mode fea- ture description. Country Mode = Switzerland Caps Lock State This option specifies the format in which the reader sends character data. This applies to keyboard wedge interfaces and Bluetooth HID Profile.
Page 48: Numlock
This option specifies the setting of the Numbers Lock (Numlock) key while in keyboard wedge interface. This only applies to alternate key encoding interfaces. It does not apply to USB keyboard. DEFAULT Numlock = Numlock key unchanged Numlock = Numlock key toggled WLS9600...
Page 49: Send Control Characters
ENTER/EXIT PROGRAMMING MODE Send Control Characters Send Control Characters This feature Specifies how the reader transmits ASCII control characters to the host. Reference Appendix E, Scancode Tables for more information about control characters. Options are as follows: Control Character 00 . Characters from 00 to 0x1F are sent as control character Ctrl+Keys, special keys are located from 0x80 to 0xA1.
Page 50: Wedge Quiet Interval
“References” for detailed information and examples for setting this feature. Select Wedge Quiet Interval Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the begin- ning. CANCEL 10 = Quiet Interval of 100 ms DEFAULT WLS9600...
Page 51: Intercharacter Delay
ENTER/EXIT PROGRAMMING MODE Intercharacter Delay Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments.
Page 52: Intercode Delay
“References” for detailed information and examples for setting this feature. Set Intercode Delay Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the begin- ning. CANCEL 00 = No Wedge Intercode Delay DEFAULT WLS9600...
Page 53: Usb Keyboard Speed
ENTER/EXIT PROGRAMMING MODE USB Keyboard Speed USB Keyboard Speed This option specifies the USB poll rate for a USB keyboard. This feature applies ONLY to the USB Keyboard interface. DEFAULT USB Keyboard Speed = 1ms USB Keyboard Speed = 2ms USB Keyboard Speed = 3ms USB Keyboard Speed = 4ms USB Keyboard Speed = 5ms...
Page 54: Usb Keyboard Numeric Keypad
USB Keyboard Speed = 8ms USB Keyboard Speed = 9ms USB Keyboard Speed = 10ms USB Keyboard Numeric Keypad This option Controls whether numeric characters will be sent using standard keys or the numeric keypad. DEFAULT Standard Keys Numeric Keypad WLS9600...
Page 55: Usb-Oem Interface
USB-OEM INTERFACE USB-OEM D on page 46 EVICE SAGE on page 46 NTERFACE PTIONS Feature settings for USB interfaces differ depending upon which host type the reader will be connected with. Use the feature settings in this chapter to specifically configure for the USB- OEM interface.
Page 56: Usb-Oem Device Usage
POS system. USB-OEM Device Usage = Table Top Scanner DEFAULT USB-OEM Device Usage = Handheld Scanner Interface Options This feature provides for an interface-specific control mechanism. Obey Scanner Configuration Host Commands DEFAULT Ignore Scanner Configuration Host Commands WLS9600...
Page 57: Wand Emulation Interface
WAND EMULATION INTERFACE IGNAL PEED on page 48 on page 48 OLARITY on page 49 TATE on page 49 RANSMIT OISE ABEL YMBOLOGY ONVERSION on page 50 This chapter provides feature/settings configuration for the Wand Emulation interface. Appendix B, Standard Defaults Reference for a listing of standard factory settings.
Page 58: Wand Signal Speed
Quiet zones and spaces are low, bars are high TTL logic levels: 0V <= Low <= 0.7V 2.4V <= High <= 5.25V Wand Polarity = Quiet Zones & Spaces High, Bars Low DEFAULT Wand Polarity = Quiet Zones & Spaces Low, Bars High WLS9600...
Page 59: Wand Idle State
ENTER/EXIT PROGRAMMING MODE Wand Idle State Wand Idle State This feature specifies the level of the Wand output signal when the reader is idle. TTL logic levels: 0V <= Low <= 0.7V 2.4V <= High <= 5.25V Wand Idle State = Low DEFAULT Wand Idle State = High Transmit Noise...
Page 60: Label Symbology Conversion
• Convert to Code 128 symbology DEFAULT Label Symbology Conversion = No conversion Label Symbology Conversion = Convert to Code 39 Label Symbology Conversion = Convert to Code 39 Full ASCII Label Symbology Conversion = Convert to Code 128 WLS9600...
Page 61: Data Format
DATA FORMAT LOBAL REFIX UFFIX on page 52 AIM ID LOBAL on page 53 GS1-128 AIM ID on page 54 ABEL starting on page 55 Label ID: Pre-loaded Sets • Label ID: Set Individually Per Symbology • Label ID Control •...
Page 62: Global Prefix/Suffix
Set Global Prefix Set Global Suffix Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL No Global Prefix DEFAULT Global Suffix = 0x0D (CR) WLS9600...
Page 63: Global Aim Id
ENTER/EXIT PROGRAMMING MODE Global AIM ID Global AIM ID This feature enables/disables addition of AIM IDs for all symbology types. AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned barcode data. AIM label identifiers consist of three characters as follows: •...
Page 64: Gs1-128 Aim Id
If Global AIM ID is disabled, the AIM ID for GS1-128 can be enabled/disabled independently. The AIM ID for GS1-128 is a ]C1, ]C2 or ]C3. AIM IDs for other symbologies can be enabled/disabled independently as well. Contact Customer Support for assistance GS1-128 AIM ID = Disable DEFAULT GS1-128 AIM ID = Enable WLS9600...
Page 65: Label Id
ENTER/EXIT PROGRAMMING MODE Label ID Label ID A Label ID is a customizable code of up to three ASCII characters (each can be one of hex 0x01- 0xFF), used to identify a barcode (symbology) type. It can be appended previous to or following the transmitted barcode data depending upon how this option is enabled.
Page 66: Label Id Control
Label ID Transmission = Enable as Prefix Label ID Transmission = Enable as Suffix Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the begin- ning. CANCEL WLS9600...
Page 67: Label Id Symbology Selection
ENTER/EXIT PROGRAMMING MODE Label ID Symbology Selection Label ID Symbology Selection This option selects the symbology for which a Label ID is to be configured. See "Label ID" on page 55 or page in “References” for more detailed instructions. Set UPC-A Label ID Character(s) Set UPC-A/P2 Label ID Character(s) Set UPC-A/P5 Label ID Character(s) Set UPC-A/GS1-128 Label ID Character(s)
Page 68 Set UPC-E/GS1-128 Label ID Character(s) Set EAN 13 Label ID Character(s) Set EAN 13/P2 Label ID Character(s) Set EAN 13/P5 Label ID Character(s) Set EAN 13/GS1-128 Label ID Character(s) Set EAN 8 Label ID Character(s) Set EAN 8/P2 Label ID Character(s) WLS9600...
Page 69 ENTER/EXIT PROGRAMMING MODE Label ID Symbology Selection Label ID Symbology Selection (continued) Set EAN 8/P5 Label ID Character(s) Set EAN 8/GS1-128 Label ID Character(s) Set GTIN Label ID Character(s) Set GTIN/P2 Label ID Character(s) Set GTIN/P5 Label ID Character(s) Set GTIN/GS1-128 Label ID Character(s) Set Code 39 Label ID Character(s) Product Reference Guide...
Page 70 Set Code 128 Label ID Character(s) Set GS1-128 Label ID Character(s) Set ISBT 128 Label ID Character(s) Set Codablock F Label ID Character(s) Set Interleaved 2 of 5 Label ID Character(s) Set Follett 2 of 5 Label ID Character(s) WLS9600...
Page 71 ENTER/EXIT PROGRAMMING MODE Label ID Symbology Selection Label ID Symbology Selection (continued) Set Interleaved 2 of 5 CIP HR Label ID Character(s) Set Standard 2 of 5 Label ID Character(s) Set Industrial 2 of 5 Label ID Character(s) Set IATA Label ID Character(s) Set China Postal Code Label ID Character(s) Set Codabar Label ID Character(s) Set ABC Codabar Label ID Character(s)
Page 72 Set Code 11 Label ID Character(s) Set DataBar Omnidirectional Label ID Character(s) Set DataBar Expanded Label ID Character(s) Set DataBar Limited Label ID Character(s) Set Code 93 Label ID Character(s) Set MSI Label ID Character(s) Set Plessey Label ID Character(s) WLS9600...
Page 73: Set Global Mid Label Id Characters
ENTER/EXIT PROGRAMMING MODE Set Global Mid Label ID Characters Label ID Symbology Selection (continued) Set Anker Plessey Label ID Character(s) Set Code 4 Label ID Character(s) Set Code 5 Label ID Character(s) Set Global Mid Label ID Characters Specifies mid-label ID that is added for transmission between the labels of a two-label pair. To configure this feature, scan the ENTER/EXIT PROGRAMMING MODE barcode above to place the unit in Programming Mode, then the “Set Global Mid Label ID Character(s)”...
Page 74: Case Conversion
FF, then no conversion is done. If less than the expected string of 16 characters are selected, scan the ENTER/ EXIT barcode twice to accept the selections and exit Programming Mode. Configure Character Conversion 0xFFFFFFFFFFFFFFFF DEFAULT (No character conversion) WLS9600...
Page 75: Reading Parameters
READING PARAMETERS on page 66 on page 71 OUBLE IMEOUT OLUME LED D on page 67 on page 72 ABEL IMEOUT URATION OWER LERT on page 68 on page 73 HEN TO NDICATE on page 68 CANNING CTIVE on page 74 on page 69 LASH on page 74...
Page 76: Double Read Timeout
Double Read Timeout = 0.1 Second Double Read Timeout = 0.2 Second Double Read Timeout = 0.3 Second Double Read Timeout = 0.4 Second Double Read Timeout = 0.5 Second DEFAULT Double Read Timeout = 0.6 Second Double Read Timeout = 0.7 Second WLS9600...
Page 77: Label Gone Timeout
ENTER/EXIT PROGRAMMING MODE Label Gone Timeout Double Read Timeout (continued) Double Read Timeout = 0.8 Second Double Read Timeout = 0.9 Second Double Read Timeout = 1 Second Label Gone Timeout This feature sets the time after the last label segment is seen before the reader prepares for a new label.
Page 78: Led And Beeper Indicators
. This option, which uses CTS, is only valid for RS-232 interfaces. DEFAULT Indicate Good Read = After Decode Indicate Good Read = After Transmit Indicate Good Read = After CTS Goes Inactive, Then Active WLS9600...
Page 79: Good Read Beep Type
ENTER/EXIT PROGRAMMING MODE Good Read Beep Type Good Read Beep Type Specifies whether the good read beep has a mono or bitonal beep sound. DEFAULT Good Read Beep Type = Mono Good Read Beep Type = Bitonal Good Read Beep Frequency Adjusts the good read beep to sound at a selectable low, medium or high frequency, selectable from the list below.
Page 80: Good Read Beep Length
Good Read Beep Length = 100 msec Good Read Beep Length = 120 msec Good Read Beep Length = 140 msec Good Read Beep Length = 160 msec Good Read Beep Length = 180 msec Good Read Beep Length = 200 msec WLS9600...
Page 81: Good Read Beep Volume
ENTER/EXIT PROGRAMMING MODE Good Read Beep Volume Good Read Beep Volume Selects the beeper volume (loudness) upon a good read beep. There are three selectable volume levels. Good Read Beep Volume = Beeper Off Good Read Beep Volume = Low Good Read Beep Volume = Medium DEFAULT Good Read Beep Volume = High...
Page 82: Good Read Led Duration
Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the begin- ning. CANCEL 003 = Good Read LED stays on for 300 ms DEFAULT Indicators are dimmed during sleep. WLS9600...
Page 83: Scanning Features
ENTER/EXIT PROGRAMMING MODE Scan Mode SCANNING FEATURES Scan Mode Selects the reader’s scan operating mode. See page 254 in “References” for descriptions. DEFAULT Scan Mode = Trigger Single Scan Mode = Trigger Hold Multiple Scan Mode = Trigger Pulse Multiple Scan Mode = Flashing Scan Mode = Always On a.
Page 84: Scanning Active Time
Select Flash ON Time Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the begin- ning. CANCEL 10 = Flash is ON for 1 Second DEFAULT WLS9600...
Page 85: Flash Off Time
ENTER/EXIT PROGRAMMING MODE Flash Off Time Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments. See page 257 in “References”...
Page 86 Scanning Features ENTER/EXIT PROGRAMMING MODE NOTES WLS9600...
Page 87: Code Selection
CODE SELECTION The reader supports the following symbologies (barcode types). Symbology-dependent options for each symbology are included in this chapter. EAN/UPC on page 79 on page 148 TANDARD Coupon Control • NDUSTRIAL on page 154 UPC-A Code IATA • • UPC-E •...
Page 88: Disable All Symbologies
1. Scan the ENTER/EXIT PROGRAMMING barcode below. 2. Scan the Disable All Symbologies barcode. 3. Complete the programming sequence by scanning the ENTER/EXIT PROGRAM- MING barcode. ENTER/EXIT PROGRAMMING MODE Disable All Symbologies This does not disable the reading of programming labels. WLS9600...
Page 89: Code Ean/Upc
ENTER/EXIT PROGRAMMING MODE Coupon Control CODE EAN/UPC Coupon Control This feature is used to control the reader’s method of processing coupon labels. Coupon Control = Allow all coupon barcodes to be decoded DEFAULT Coupon Control = Enable only UPCA coupon decoding Coupon Control = Enable only GS1 DataBar™...
Page 90: Upc-A
When disabled, the reader will not read UPC-A barcodes. UPC-A = Disable DEFAULT UPC-A = Enable UPC-A Check Character Transmission Enable this option to transmit the check character along with UPC-A barcode data. UPC-A Check Character Transmission = Don’t Send DEFAULT UPC-A Check Character Transmission = Send WLS9600...
Page 91: Expand Upc-A To Ean-13
ENTER/EXIT PROGRAMMING MODE Expand UPC-A to EAN-13 Expand UPC-A to EAN-13 Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. DEFAULT UPC-A to EAN-13 = Don’t Expand UPC-A to EAN-13 = Expand UPC-A Number System Character Transmission This feature enables/disables transmission of the UPC-A number system character.
Page 92: Upc-A Minimum Reads
This feature specifies the minimum number of consecutive times a UPC-A label must be decoded before it is accepted as a good read. DEFAULT UPC-A Minimum Reads = 1 UPC-A Minimum Reads = 2 UPC-A Minimum Reads = 3 UPC-A Minimum Reads = 4 WLS9600...
Page 93: Upc-E
ENTER/EXIT PROGRAMMING MODE UPC-E Enable/Disable UPC-E The following options apply to the UPC-E symbology. UPC-E Enable/Disable When disabled, the reader will not read UPC-E barcodes. UPC-E = Disable DEFAULT UPC-E = Enable UPC-E Check Character Transmission Enable this option to transmit the check character along with UPC-E barcode data. UPC-E Check Character Transmission = Don’t Send DEFAULT UPC-E Check Character Transmission = Send...
Page 94: Expand Upc-E To Ean-13
ID to match those required for EAN-13. DEFAULT UPC-E to EAN-13 = Don’t Expand UPC-E to EAN-13 = Expand Expand UPC-E to UPC-A Expands UPC-E data to the UPC-A data format. DEFAULT UPC-E to UPC-A = Don’t Expand UPC-E to UPC-A = Expand WLS9600...
Page 95: Upc-E Number System Character Transmission
ENTER/EXIT PROGRAMMING MODE UPC-E Number System Character Transmission UPC-E Number System Character Transmission This feature enables/disables transmission of the UPC-E system number character. UPC-E Number System Character = Do not transmit DEFAULT UPC-E Number System Character = Transmit UPC-E Minimum Reads Specifies the minimum number of consecutive times a UPC-E label must be decoded before it is accepted as a good read.
Page 96: Gtin Formatting
GTIN 14-character format. If add-on information is present on the base label prior to the con- version taking place, the add-on information will be appended to the converted GTIN label. DEFAULT GTIN Formatting = Disable GTIN Formatting = Enable WLS9600...
Page 97: Ean 13 (Jan 13)
ENTER/EXIT PROGRAMMING MODE EAN 13 Enable/Disable EAN 13 (JAN 13) The following options apply to the EAN 13 (Jan 13) symbology. EAN 13 Enable/Disable When disabled, the reader will not read EAN 13/JAN 13 barcodes. EAN 13 = Disable DEFAULT EAN 13 = Enable EAN 13 Check Character Transmission Enable this option to transmit the check character along with EAN 13 barcode data.
Page 98: Ean-13 Flag 1 Character
EAN-13 Flag 1 Char= Don’t transmit DEFAULT EAN-13 Flag 1 Char= Transmit EAN-13 ISBN Conversion This option enables/disables conversion of EAN 13/JAN 13 Bookland labels starting with 978 to ISBN labels. DEFAULT EAN-13 ISBN Conversion = Disable EAN-13 ISBN Conversion = Convert to ISBN WLS9600...
Page 99: Ean 13 Minimum Reads
ENTER/EXIT PROGRAMMING MODE EAN 13 Minimum Reads EAN 13 Minimum Reads This feature specifies the minimum number of consecutive times an EAN 13 label must be decoded before it is accepted as good read. DEFAULT EAN 13 Minimum Reads = 1 EAN 13 Minimum Reads = 2 EAN 13 Minimum Reads = 3 EAN 13 Minimum Reads = 4...
Page 100: Issn
ISSN ENTER/EXIT PROGRAMMING MODE ISSN The following options apply to the ISSN symbology. ISSN Enable/Disable Enables/disables conversion of EAN/JAN13 Bookland labels starting with 977 to ISSN labels. DEFAULT ISSN = Disable ISSN = Enable WLS9600...
Page 101: Ean 8 (Jan 8)
ENTER/EXIT PROGRAMMING MODE EAN 8 Enable/Disable EAN 8 (JAN 8) The following options apply to the EAN 8 (Jan 8) symbology. EAN 8 Enable/Disable When disabled, the reader will not read EAN 8/JAN 8 barcodes. EAN 8 = Disable DEFAULT EAN 8 = Enable EAN 8 Check Character Transmission Enable this option to transmit the check character along with EAN 8 barcode data.
Page 102: Expand Ean 8 To Ean 13
This feature specifies the minimum number of consecutive times an EAN 8 (Jan 8) label must be decoded before it is accepted as good read. DEFAULT EAN 8 Minimum Reads = 1 EAN 8 Minimum Reads = 2 EAN 8 Minimum Reads = 3 EAN 8 Minimum Reads = 4 WLS9600...
Page 103: Upc/Ean Global Settings
ENTER/EXIT PROGRAMMING MODE UPC/EAN Decoding Level UPC/EAN GLOBAL SETTINGS This section provides configuration settings for UPC-A, UPC-E, EAN 13 and EAN 8 symbologies, and affects all of these unless otherwise marked for each feature description. UPC/EAN Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs.
Page 104: Upc/Ean Correlation
This feature enables/disables calculation and verification of price/weight check digits. DEFAULT Price Weight Check = Disabled Price Weight Check = 4-digit price-weight check Price Weight Check = 5-digit price-weight check Price Weight Check = European 4-digit price-weight check Price Weight Check = European 5-digit price-weight check WLS9600...
Page 105: In-Store Minimum Reads
ENTER/EXIT PROGRAMMING MODE In-Store Minimum Reads In-Store Minimum Reads This feature specifies the minimum number of consecutive times an in-store label must be decoded before it is accepted as good read. In-store labels are defined as UPC-A labels with a number-system character of 2 or 4 as well as EAN 8 and EAN 13 labels with a Flag1 character of 2 or an EAN 13 label starting with the three characters '980'.
Page 106: Add-Ons
Conditional add-on settings (if enabled) are considered by the reader before optional add-on settings. DEFAULT Optional Add-Ons = Disable P2 Optional Add-Ons = Enable P2 DEFAULT Optional Add-Ons = Disable P5 Optional Add-Ons = Enable P5 DEFAULT Optional Add-Ons = Disable GS1-128 Optional Add-Ons = Enable GS1-128 WLS9600...
Page 107: Optional Add-On Timer
ENTER/EXIT PROGRAMMING MODE Optional Add-On Timer Optional Add-On Timer This option sets the time the reader will look for an add-on when an add-on fragment has been seen and optional add-ons are enabled. (Also see "Optional GS1-128 Add-On Timer" on page 100.) Optional Add-on Timer = 10ms Optional Add-on Timer = 20ms...
Page 108 Add-Ons ENTER/EXIT PROGRAMMING MODE Optional Add-On Timer (continued) Optional Add-on Timer = 60ms DEFAULT Optional Add-on Timer = 70ms Optional Add-on Timer = 100ms Optional Add-on Timer = 120ms Optional Add-on Timer = 140ms Optional Add-on Timer = 160ms WLS9600...
Page 109 ENTER/EXIT PROGRAMMING MODE Optional Add-On Timer Optional Add-On Timer (continued) Optional Add-on Timer = 180ms Optional Add-on Timer = 200ms Optional Add-on Timer = 220ms Optional Add-on Timer = 240ms Optional Add-on Timer = 260ms Optional Add-on Timer = 280ms Optional Add-on Timer = 300ms Product Reference Guide...
Page 110: Optional Gs1-128 Add-On Timer
"Optional Add-On Timer" on page DEFAULT Optional GS1-128 Add-On Timer = Disable Optional GS1-128 Add-On Timer = 10ms Optional GS1-128 Add-On Timer = 20ms Optional GS1-128 Add-On Timer = 30ms Optional GS1-128 Add-On Timer = 40ms Optional GS1-128 Add-On Timer = 50ms WLS9600...
Page 111 ENTER/EXIT PROGRAMMING MODE Optional GS1-128 Add-On Timer Optional GS1-128 Add-On Timer (continued) Optional GS1-128 Add-On Timer = 60ms Optional GS1-128 Add-On Timer = 70ms Optional GS1-128 Add-On Timer = 100ms Optional GS1-128 Add-On Timer = 120ms Optional GS1-128 Add-On Timer = 140ms Optional GS1-128 Add-On Timer = 160ms Product Reference Guide...
Page 112 Optional GS1-128 Add-On Timer = 180ms Optional GS1-128 Add-On Timer = 200ms Optional GS1-128 Add-On Timer = 220ms Optional GS1-128 Add-On Timer = 240ms Optional GS1-128 Add-On Timer = 260ms Optional GS1-128 Add-On Timer = 280ms Optional GS1-128 Add-On Timer = 300ms WLS9600...
Page 113: P2 Add-Ons Minimum Reads
ENTER/EXIT PROGRAMMING MODE P2 Add-Ons Minimum Reads P2 Add-Ons Minimum Reads This feature specifies the minimum number of times a P2 add-on must be read before it is marked as valid and then combined with a base label P2 Add-Ons Minimum Reads = 1 DEFAULT P2 Add-Ons Minimum Reads = 2 P2 Add-Ons Minimum Reads = 3...
Page 114: P5 Add-Ons Minimum Reads
This feature specifies the minimum number of times a P5 add-on must be read before it is marked as valid and then combined with a base label DEFAULT P5 Add-Ons Minimum Reads = 1 P5 Add-Ons Minimum Reads = 2 P5 Add-Ons Minimum Reads = 3 P5 Add-Ons Minimum Reads = 4 WLS9600...
Page 115: Gs1-128 Add-Ons Minimum Reads
ENTER/EXIT PROGRAMMING MODE GS1-128 Add-Ons Minimum Reads GS1-128 Add-Ons Minimum Reads This feature specifies the minimum number of times an GS1-128 add-on must be read before it is marked as valid and then combined with a base label DEFAULT GS1-128 Add-Ons Minimum Reads = 1 GS1-128 Add-Ons Minimum Reads = 2 GS1-128 Add-Ons Minimum Reads = 3 GS1-128 Add-Ons Minimum Reads = 4...
Page 116: Code 39
When disabled, any check character in the label is treated as a data character DEFAULT Code 39 Check Character Calculation = Don’t Calculate Code 39 Check Character Calculation = Calculate Std Check Code 39 Check Character Calculation = Calculate Mod 7 Check WLS9600...
Page 117: Code 39 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE Code 39 Check Character Transmission Code 39 Check Character Calculation (continued) Code 39 Check Character Calculation = Enable Italian Post Check Code 39 Check Character Calculation = Enable Daimler Chrysler Check Code 39 Check Character Transmission Enable this option to transmit the check character along with Code 39 barcode data. Code 39 Check Character Transmission = Don’t Send DEFAULT Code 39 Check Character Transmission = Send...
Page 118: Code 39 Start/Stop Character Transmission
Code 39 Start/Stop Character Transmission = Don’t Transmit Code 39 Start/Stop Character Transmission = Transmit Code 39 Full ASCII Enables/disables the translation of Code 39 characters to Code 39 full-ASCII characters. DEFAULT Code 39 Full ASCII = Disable Code 39 Full ASCII = Enable WLS9600...
Page 119: Code 39 Quiet Zones
ENTER/EXIT PROGRAMMING MODE Code 39 Quiet Zones Code 39 Quiet Zones This feature specifies the number of quiet zones for Code 39 labels. Quiet zones are blank areas at the ends of a barcode, typically 10 times the width of the narrowest bar or space in the label. Code 39 Quiet Zones = Quiet Zone on one side Code 39 Quiet Zones = Quiet Zones on two sides DEFAULT...
Page 120: Code 39 Minimum Reads
This feature specifies the minimum number of consecutive times a Code 39 label must be decoded before it is accepted as good read. Code 39 Minimum Reads = 1 DEFAULT Code 39 Minimum Reads = 2 Code 39 Minimum Reads = 3 Code 39 Minimum Reads = 4 WLS9600...
Page 121: Code 39 Decoding Level
ENTER/EXIT PROGRAMMING MODE Code 39 Decoding Level Code 39 Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. See page 242 for more information on this feature. This configuration item applies to Code 39 and Code 32.
Page 122: Code 39 Length Control
For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set. DEFAULT Code 39 Length Control = Variable Length Code 39 Length Control = Fixed Length WLS9600...
Page 123: Code 39 Set Length 1
ENTER/EXIT PROGRAMMING MODE Code 39 Set Length 1 Code 39 Set Length 1 This feature specifies one of the barcode lengths for Code 39 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 124: Code 39 Set Length 2
Scan ENTER/EXIT PROGRAMMING MODE Select Code 39Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the begin- ning. CANCEL 50 = Length 2 is 50 Characters DEFAULT WLS9600...
Page 125: Code 39 Interdigit Ratio
ENTER/EXIT PROGRAMMING MODE Code 39 Interdigit Ratio Code 39 Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Code 39 labels. Code 39 Interdigit Ratio = Disable Code 39 Interdigit Ratio = 1 Code 39 Interdigit Ratio = 2 Code 39 Interdigit Ratio = 3 DEFAULT Code 39 Interdigit Ratio = 4...
Page 126 Code 39 ENTER/EXIT PROGRAMMING MODE Code 39 Interdigit Ratio (continued) Code 39 Interdigit Ratio = 6 Code 39 Interdigit Ratio = 7 Code 39 Interdigit Ratio = 8 Code 39 Interdigit Ratio = 9 Code 39 Interdigit Ratio = 10 WLS9600...
Page 127: Code 39 Character Correlation
ENTER/EXIT PROGRAMMING MODE Code 39 Character Correlation Code 39 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids.
Page 128: Code 32 (Ital Pharmaceutical Code)
"Code 39 Quiet Zones" on page 109 "Code 39 Minimum Reads" on page 110 "Code 39 Decoding Level" on page 111 "Code 39 Interdigit Ratio" on page 115 "Code 39 Character Correlation" on page 117 "Code 39 Stitching" on page 117 WLS9600...
Page 129: Code 32 Check Char Transmission
ENTER/EXIT PROGRAMMING MODE Code 32 Check Char Transmission Code 32 Check Char Transmission Enable this option to transmit the check character along with Code 32 barcode data. DEFAULT Code 32 Check Character Transmission = Don’t Send Code 32 Check Character Transmission = Send Code 32 Start/Stop Character Transmission This option enables/disables transmission of Code 32 start and stop characters DEFAULT...
Page 130: Code 39 Cip (French Pharmaceutical)
CODE 39 CIP (FRENCH PHARMACEUTICAL) The following options apply to the Code 39 CIP symbology. Code 39 CIP Enable/Disable Enables/Disables ability of the reader to decode Code 39 CIP labels. DEFAULT Code 39 CIP = Disable Code 39 CIP = Enable WLS9600...
Page 131: Code 128
ENTER/EXIT PROGRAMMING MODE Code 128 Enable/Disable CODE 128 The following options apply to the Code 128 symbology. Code 128 Enable/Disable When disabled, the reader will not read Code 128 barcodes. Code 128 = Disable DEFAULT Code 128 = Enable Expand Code 128 to Code 39 This feature enables/disables expansion of Code 128 labels to Code 39 labels.
Page 132: Code 128 Check Character Transmission
Code 128 Check Character Transmission = Send Code 128 Function Character Transmission Enables/disables transmission of Code128 function characters 1, 2, 3, and 4. DEFAULT Code 128 Function Character Transmission = Don’t Send Code 128 Function Character Transmission = Send WLS9600...
Page 133: Code 128 Sub-Code Change Transmission
ENTER/EXIT PROGRAMMING MODE Code 128 Sub-Code Change Transmission Code 128 Sub-Code Change Transmission Enables/disables the transmission of “Sub-Code exchange” characters (NOT transmitted by standard decoding). DEFAULT Code 128 Sub-Code Change Transmission = Disable Code 128 Sub-Code Change Transmission = Enable Product Reference Guide...
Page 134: Code 128 Quiet Zones
Code 128 Quiet Zones = No Quiet Zones Code 128 Quiet Zones = Quiet Zone on one side Code 128 Quiet Zones = Quiet Zones on two sides DEFAULT Code 128 Quiet Zones = Auto Code 128 Quiet Zones = Virtual Quiet Zones on two sides WLS9600...
Page 135: Code 128 Minimum Reads
ENTER/EXIT PROGRAMMING MODE Code 128 Minimum Reads Code 128 Minimum Reads This feature specifies the minimum number of consecutive times a Code 128 label must be decoded before it is accepted as good read. DEFAULT Code 128 Minimum Reads = 1 Code 128 Minimum Reads = 2 Code 128 Minimum Reads = 3 Code 128 Minimum Reads = 4...
Page 136: Code 128 Decoding Level
Code 128 Decoding Level = 1 (Conservative) Code 128 Decoding Level = 2 DEFAULT Code 128 Decoding Level = 3 Code 128 Decoding Level = 4 Code 128 Decoding Level = 5 (Aggressive) WLS9600...
Page 137: Code 128 Length Control
ENTER/EXIT PROGRAMMING MODE Code 128 Length Control Code 128 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 128 symbology. See page 242 for more information.. DEFAULT Code 128 Length Control = Variable Length Code 128 Length Control = Fixed Length Product Reference Guide...
Page 138: Code 128 Set Length 1
Select Code 128 Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the begin- ning. CANCEL 01 = Length 1 is 1 Character DEFAULT WLS9600...
Page 139: Code 128 Set Length 2
ENTER/EXIT PROGRAMMING MODE Code 128 Set Length 2 Code 128 Set Length 2 This feature specifies one of the barcode lengths for Code 128 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 140: Code 128 Character Correlation
Code 128 Stitching = Disable DEFAULT Code 128 Stitching = Enable WLS9600...
Page 141: Gs1-128
ENTER/EXIT PROGRAMMING MODE GS1-128 Enable GS1-128 The following options apply to the GS1-128 symbology. (Also known as USS-128, GS1-128, GTIN-128, UCC-128, EAN-128.) GS1-128 Enable This option enables/disables the ability of the reader to translate GS1-128 labels to the GS1-128 data format. Options are: •...
Page 142: Code Isbt 128
ISBN 128 Concatenation = Enable ISBT 128 Force Concatenation When enabled, this feature forces concatenation for ISBT. ISBT 128 Concatenation This option is only valid when is enabled . DEFAULT ISBT 128 Force Concatenation = Disable ISBT 128 Force Concatenation = Enable WLS9600...
Page 143: Isbt 128 Concatenation Mode
ENTER/EXIT PROGRAMMING MODE ISBT 128 Concatenation Mode ISBT 128 Concatenation Mode Specifies the concatenation mode between Static and Dynamic. ISBT 128 Concatenation This option is only valid when is enabled (see page 132). DEFAULT ISBT 128 Concatenation Mode = Static ISBT 128 Concatenation Mode = Dynamic Product Reference Guide...
Page 144: Isbt 128 Dynamic Concatenation Timeout
ISBT 128 Dynamic Concatenation Timeout = 100 msec DEFAULT ISBT 128 Dynamic Concatenation Timeout = 200 msec ISBT 128 Dynamic Concatenation Timeout = 500 msec ISBT 128 Dynamic Concatenation Timeout = 750 msec ISBT 128 Dynamic Concatenation Timeout = 1 second WLS9600...
Page 145: Codablock F
ENTER/EXIT PROGRAMMING MODE Codablock F Enable/Disable CODABLOCK F The following options apply to the Codablock F symbology. Codablock F Enable/Disable Enables/Disables ability of reader to decode Codablock F labels. DEFAULT Codablock F = Disable Codablock F = Enable Codablock F EAN Enable/Disable Enables/Disables the Codablock F EAN subtype (code with FNC1 in the first position)..
Page 146: Codablock F Aim Check
Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set. DEFAULT Codablock F Length Control = Variable Length Codablock F = Fixed Length WLS9600...
Page 147: Codablock F Set Length 1
ENTER/EXIT PROGRAMMING MODE Codablock F Set Length 1 Codablock F Set Length 1 Specifies one of the barcode lengths for Codablock F Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 148: Codablock F Set Length 2
Scan ENTER/EXIT PROGRAMMING MODE Select Codablock F Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 100 = Length 2 is 100 Characters DEFAULT WLS9600...
Page 149: Interleaved 2 Of 5 (I 2 Of 5)
ENTER/EXIT PROGRAMMING MODE I 2 of 5 Enable/Disable INTERLEAVED 2 OF 5 (I 2 OF 5) The following options apply to the I 2 of 5 symbology. I 2 of 5 Enable/Disable When disabled, the reader will not read I 2 of 5 barcodes. DEFAULT I 2 of 5 = Disable I 2 of 5 = Enable...
Page 150: I 2 Of 5 Check Character Transmission
I 2 of 5 Check Character Transmission Enable this option to transmit the check character along with I 2 of 5 barcode data. I 2 of 5 Check Character Transmission = Don’t Send DEFAULT I 2 of 5 Check Character Transmission = Send WLS9600...
Page 151: I 2 Of 5 Minimum Reads
ENTER/EXIT PROGRAMMING MODE I 2 of 5 Minimum Reads I 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times an I 2 of 5 label must be decoded before it is accepted as good read. I 2 of 5 Minimum Reads = 1 DEFAULT I 2 of 5 Minimum Reads = 2...
Page 152: Of 5 Decoding Level
2 of 5 Decoding Level = 1 (Conservative) 2 of 5 Decoding Level = 2 DEFAULT 2 of 5 Decoding Level = 3 2 of 5 Decoding Level = 4 2 of 5 Decoding Level = 5 (Aggressive) WLS9600...
Page 153: I 2 Of 5 Length Control
ENTER/EXIT PROGRAMMING MODE I 2 of 5 Length Control I 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the I 2 of 5 symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length.
Page 154: I 2 Of 5 Set Length 1
Select I 2 of 5 Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the begin- ning. CANCEL 06 = Length 1 is 6 Characters DEFAULT WLS9600...
Page 155: I 2 Of 5 Set Length 2
ENTER/EXIT PROGRAMMING MODE I 2 of 5 Set Length 2 I 2 of 5 Set Length 2 This feature specifies one of the barcode lengths for I 2 of 5 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length...
Page 156: I 2 Of 5 Character Correlation
DEFAULT I 2 of 5 Stitching = Disable I 2 of 5 Stitching = Enable WLS9600...
Page 157: Follett 2 Of 5
ENTER/EXIT PROGRAMMING MODE Follett 2 of 5 Enable/Disable FOLLETT 2 OF 5 The following options apply to the Follett 2 of 5 symbology. Follett 2 of 5 Enable/Disable Enables/Disables ability of imager to decode Follett 2 of 5 labels. DEFAULT Follett 2 of 5 = Disable Follett 2 of 5 = Enable INTERLEAVED 2 OF 5 CIP HR...
Page 158: Standard 2 Of 5
Standard 2 of 5 Check Character Calculation This option enables/disables calculation and verification of an optional Standard 2 of 5 check character. DEFAULT Standard 2 of 5 Check Character Calculation = Disable Standard 2 of 5 Check Character Calculation = Enable WLS9600...
Page 159: Standard 2 Of 5 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE Standard 2 of 5 Check Character Transmission Standard 2 of 5 Check Character Transmission This feature enables/disables transmission of an optional Standard 2 of 5 check character. Standard 2 of 5 Check Character Transmission = Don’t Send DEFAULT Standard 2 of 5 Check Character Transmission = Send Standard 2 of 5 Minimum Reads...
Page 160: Standard 2 Of 5 Decoding Level
For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set. DEFAULT Standard 2 of 5 Length Control = Variable Length Standard 2 of 5 Length Control = Fixed Length WLS9600...
Page 161: Standard 2 Of 5 Set Length 1
ENTER/EXIT PROGRAMMING MODE Standard 2 of 5 Set Length 1 Standard 2 of 5 Set Length 1 This feature specifies one of the barcode lengths for Standard 2 of 5 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length...
Page 162: Standard 2 Of 5 Set Length 2
Select Standard 2 of 5 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the begin- ning. CANCEL 50 = Length 2 is 50 Characters DEFAULT WLS9600...
Page 163: Standard 2 Of 5 Character Correlation
ENTER/EXIT PROGRAMMING MODE Standard 2 of 5 Character Correlation Standard 2 of 5 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids.
Page 164: Industrial 2 Of 5
Industrial 2 of 5 Check Character Calculation Enables/Disables calculation and verification of an optional Industrial 2 of 5 check character. DEFAULT Industrial 2 of 5 Check Character Calculation = Disable Industrial 2 of 5 Check Character Calculation = Enable WLS9600...
Page 165: Industrial 2 Of 5 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE Industrial 2 of 5 Check Character Transmission Industrial 2 of 5 Check Character Transmission Enables/disables transmission of an Industrial 2 of 5 check character. Industrial 2 of 5 Check Character Transmission = Disable DEFAULT Industrial 2 of 5 Check Character Transmission = Enable Industrial 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Industrial 2 of 5 symbology.
Page 166: Industrial 2 Of 5 Set Length 1
Select Industrial 2 of 5 Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 01 = Length 1 is 1 Character DEFAULT WLS9600...
Page 167: Industrial 2 Of 5 Set Length 2
ENTER/EXIT PROGRAMMING MODE Industrial 2 of 5 Set Length 2 Industrial 2 of 5 Set Length 2 This feature specifies one of the barcode lengths for Industrial 2 of 5 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed...
Page 168: Industrial 2 Of 5 Minimum Reads
Industrial 2 of 5 Minimum Reads = 3 Industrial 2 of 5 Minimum Reads = 4 Industrial 2 of 5 Stitching Enables/disables fixed length stitching for Industrial 2 of 5. DEFAULT Industrial 2 of 5 Stitching = Disable Industrial 2 of 5 Stitching = Enable WLS9600...
Page 169: Industrial 2 Of 5 Character Correlation
ENTER/EXIT PROGRAMMING MODE Industrial 2 of 5 Character Correlation Industrial 2 of 5 Character Correlation Enable/disables character correlation for Industrial 2 of 5. DEFAULT Industrial 2 of 5 Character Correlation = Disable Industrial 2 of 5 Character Correlation = Enable Product Reference Guide...
Page 170: Code Iata
Enables/Disables the ability of the reader to decode IATA labels. DEFAULT IATA = Disable IATA = Enable IATA Check Character Transmission Enables/Disables calculation and verification of an optional Industrial 2 of 5 check character. IATA Check Character Transmission = Disable DEFAULT IATA Check Character Transmission = Enable WLS9600...
Page 171: China Postal Code
ENTER/EXIT PROGRAMMING MODE China Postal Code Enable/Disable CHINA POSTAL CODE The following options apply to the China Postal Code symbology. China Postal Code Enable/Disable When disabled, the reader will not read China Postal Code barcodes. DEFAULT China Postal Code = Disable China Postal Code = Enable China Postal Code Check Character Calculation This option enables/disables calculation and verification of an optional China Postal Code...
Page 172: China Postal Code Minimum Reads
China Postal Code Minimum Reads = 2 China Postal Code Minimum Reads = 3 China Postal Code Minimum Reads = 4 China Postal Code Decoding Level "2 of 5 Decoding The China Postal Code Decoding Level feature is set using Level" on page 142 WLS9600...
Page 173: China Postal Code Length Control
ENTER/EXIT PROGRAMMING MODE China Postal Code Length Control China Postal Code Length Control This feature specifies either variable length decoding or fixed length decoding for the China Postal Code symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length.
Page 174: China Postal Code Set Length 1
Select China Postal Code Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the begin- ning. CANCEL 06 = Length 1 is 6 Characters DEFAULT WLS9600...
Page 175: China Postal Code Set Length 2
ENTER/EXIT PROGRAMMING MODE China Postal Code Set Length 2 China Postal Code Set Length 2 This feature specifies one of the barcode lengths for China Postal Code Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length...
Page 176: China Postal Code Character Correlation
Postal Code barcode are presented to the reader with this feature enabled, the barcode parts will be assembled by the reader’s software, and the data will be decoded if all barcode proofing requirements are met. DEFAULT China Postal Code Stitching = Disable China Postal Code Stitching = Enable WLS9600...
Page 177: Codabar
ENTER/EXIT PROGRAMMING MODE Codabar Enable/Disable CODABAR The following options apply to the Codabar symbology. Codabar Enable/Disable When disabled, the reader will not read Codabar barcodes. DEFAULT Codabar = Disable Codabar = Enable Codabar Check Character Calculation Enable this option to enables/disables calculation and verification of an optional Codabar check character.
Page 178: Codabar Check Character Transmission
Codabar Check Character Transmission = Don’t Send DEFAULT Codabar Check Character Transmission = Send Codabar Start/Stop Character Transmission Enable this option to enable/disable transmission of Codabar start and stop characters Codabar Start/Stop Character Transmission = Don’t Transmit DEFAULT Codabar Start/Stop Character Transmission = Transmit WLS9600...
Page 179: Codabar Start/Stop Character Set
ENTER/EXIT PROGRAMMING MODE Codabar Start/Stop Character Set Codabar Start/Stop Character Set This option specifies the format of transmitted Codabar start/stop characters Codabar Check Character Set = ABCD/TN*E Codabar Check Character Set = ABCD/ABCD Codabar Check Character Set = abcd/tn*e DEFAULT Codabar Check Character Set = abcd/abcd Codabar Start/Stop Character Match When enabled, this option requires that start and stop characters match...
Page 180: Codabar Quiet Zones
Codabar Quiet Zones = Quiet Zone on one side Codabar Quiet Zones = Quiet Zones on two sides DEFAULT Codabar Quiet Zones = Auto Codabar Quiet Zones = Virtual Quiet Zones on two sides Codabar Quiet Zones = Small Quiet Zones on two sides WLS9600...
Page 181: Codabar Minimum Reads
ENTER/EXIT PROGRAMMING MODE Codabar Minimum Reads Codabar Minimum Reads This feature specifies the minimum number of consecutive times a Codabar label must be decoded before it is accepted as good read. Codabar Minimum Reads = 1 DEFAULT Codabar Minimum Reads = 2 Codabar Minimum Reads = 3 Codabar Minimum Reads = 4 Product Reference Guide...
Page 182: Codabar Decoding Level
See page 242 for more information on this feature. Codabar Decoding Level = 1 (Conservative) Codabar Decoding Level = 2 DEFAULT Codabar Decoding Level = 3 Codabar Decoding Level = 4 Codabar Decoding Level = 5 WLS9600...
Page 183: Codabar Length Control
ENTER/EXIT PROGRAMMING MODE Codabar Length Control Codabar Length Control This feature specifies either variable length decoding or fixed length decoding for the Codabar symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set.
Page 184: Codabar Set Length 1
Scan ENTER/EXIT PROGRAMMING MODE Select Codabar Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the begin- ning. CANCEL 03 = Length 1 is 3 Characters DEFAULT WLS9600...
Page 185: Codabar Set Length 2
ENTER/EXIT PROGRAMMING MODE Codabar Set Length 2 Codabar Set Length 2 This feature specifies one of the barcode lengths for Codabar Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 186: Codabar Interdigit Ratio
This feature specifies the ratio between an intercharacter space and module for Codabar labels. Codabar Interdigit Ratio = Disable Codabar Interdigit Ratio = 1 Codabar Interdigit Ratio = 2 Codabar Interdigit Ratio = 3 DEFAULT Codabar Interdigit Ratio = 4 Codabar Interdigit Ratio = 5 WLS9600...
Page 187 ENTER/EXIT PROGRAMMING MODE Codabar Interdigit Ratio Codabar Interdigit Ratio (continued) Codabar Interdigit Ratio = 6 Codabar Interdigit Ratio = 7 Codabar Interdigit Ratio = 8 Codabar Interdigit Ratio = 9 Codabar Interdigit Ratio = 10 Product Reference Guide...
Page 188: Codabar Character Correlation
DEFAULT Codabar Stitching = Disable Codabar Stitching = Enable WLS9600...
Page 189: Abc Codabar
ENTER/EXIT PROGRAMMING MODE ABC Codabar Enable/Disable ABC CODABAR The following options apply to the ABC Codabar symbology. ABC Codabar Enable/Disable Enables/Disables ability of reader to decode ABC Codabar labels. DEFAULT ABC Codabar = Disable ABC Codabar = Enable ABC Codabar Concatenation Mode Specifies the concatenation mode between Static and Dynamic.
Page 190: Abc Codabar Dynamic Concatenation Timeout
ABC Codabar Dynamic Concatenation Timeout = 100 msec DEFAULT ABC Codabar Dynamic Concatenation Timeout = 200 msec ABC Codabar Dynamic Concatenation Timeout = 500 msec ABC Codabar Dynamic Concatenation Timeout = 750 msec ABC Codabar Dynamic Concatenation Timeout = 1 Second WLS9600...
Page 191: Abc Codabar Force Concatenation
ENTER/EXIT PROGRAMMING MODE ABC Codabar Force Concatenation ABC Codabar Force Concatenation Forces labels starting or ending with D to be concatenated. DEFAULT ABC Codabar Force Concatenation = Disable ABC Codabar Force Concatenation = Enable Product Reference Guide...
Page 192: Code 11
This option enables/disables calculation and verification of optional Code 11 check character. Code 11 Check Character Calculation = Disable Code 11 Check Character Calculation = Check C Code 11 Check Character Calculation = Check K DEFAULT Code 11 Check Character Calculation = Check C and K WLS9600...
Page 193: Code 11 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE Code 11 Check Character Transmission Code 11 Check Character Transmission This feature enables/disables transmission of an optional Code 11 check character. Code 11 Check Character Transmission = Don’t Send DEFAULT Code 11 Check Character Transmission = Send Code 11 Minimum Reads This feature specifies the minimum number of consecutive times a Code 11 label must be decoded before it is accepted as good read.
Page 194: Code 11 Length Control
For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set. DEFAULT Code 11 Length Control = Variable Length Code 11 Length Control = Fixed Length WLS9600...
Page 195: Code 11 Set Length 1
ENTER/EXIT PROGRAMMING MODE Code 11 Set Length 1 Code 11 Set Length 1 This feature specifies one of the barcode lengths for Code 11 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 196: Code 11 Set Length 2
Select Code 11 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the begin- ning. CANCEL 50 = Length 2 is 50 Characters DEFAULT WLS9600...
Page 197: Code 11 Interdigit Ratio
ENTER/EXIT PROGRAMMING MODE Code 11 Interdigit Ratio Code 11 Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Code 11 labels. Code 11 Interdigit Ratio = Disable Code 11 Interdigit Ratio = 1 Code 11 Interdigit Ratio = 2 Code11 Interdigit Ratio = 3 DEFAULT Code 11 Interdigit Ratio = 4...
Page 198 Code 11 ENTER/EXIT PROGRAMMING MODE Code 11 Interdigit Ratio (continued) Code 11 Interdigit Ratio = 6 Code 11 Interdigit Ratio = 7 Code 11 Interdigit Ratio = 8 Code 11 Interdigit Ratio = 9 Code 11 Interdigit Ratio = 10 WLS9600...
Page 199: Code 11 Decoding Level
ENTER/EXIT PROGRAMMING MODE Code 11 Decoding Level Code 11 Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. See page 242 for more information on this feature. Codabar Decoding Level = 1 (Conservative) Codabar Decoding Level = 2 DEFAULT...
Page 200: Code 11 Character Correlation
DEFAULT Code 11 Stitching = Disable Code 11 Stitching = Enable WLS9600...
Page 201: Gs1 Databar™ Omnidirectional
ENTER/EXIT PROGRAMMING MODE GS1 DataBar™ Omnidirectional Enable/Disable GS1 DATABAR™ OMNIDIRECTIONAL The following options apply to the GS1 DataBar™ Omnidirectional (formerly RSS-14) symbology. GS1 DataBar™ Omnidirectional Enable/Disable When disabled, the reader will not read GS1 DataBar™ Omnidirectional barcodes. DEFAULT GS1 DataBar™ Omnidirectional = Disable GS1 DataBar™...
Page 202: Gs1 Databar™ Omnidirectional Minimum Reads
Omnidirectional label must be decoded before it is accepted as good read DEFAULT GS1 DataBar™ Omnidirectional Minimum Reads = 1 GS1 DataBar™ Omnidirectional Minimum Reads = 2 GS1 DataBar™ Omnidirectional Minimum Reads = 3 GS1 DataBar™ Omnidirectional Minimum Reads = 4 WLS9600...
Page 203: Gs1 Databar™ Expanded
ENTER/EXIT PROGRAMMING MODE GS1 DataBar™ Expanded Enable/Disable GS1 DATABAR™ EXPANDED The following options apply to the GS1 DataBar™ Expanded (formerly RSS Expanded) symbology. GS1 DataBar™ Expanded Enable/Disable When disabled, the reader will not read GS1 DataBar™ Expanded barcodes. DEFAULT GS1 DataBar™ Expanded = Disable GS1 DataBar™...
Page 204: Gs1 Databar™ Expanded Minimum Reads
Variable Length. For variable-length decoding, a minimum length may be set. Fixed Length. For fixed-length decoding, two different lengths may be set. DEFAULT GS1 DataBar™ Expanded Length Control = Variable Length GS1 DataBar™ Expanded Length Control = Fixed Length WLS9600...
Page 205: Gs1 Databar™ Expanded Set Length 1
ENTER/EXIT PROGRAMMING MODE GS1 DataBar™ Expanded Set Length 1 GS1 DataBar™ Expanded Set Length 1 This feature specifies one of the barcode lengths for GS1 DataBar™ Expanded Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 206: Gs1 Databar™ Expanded Set Length 2
Select GS1 DataBar™ Expanded Set Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the begin- ning. CANCEL 74 = Length 2 is 74 Characters DEFAULT WLS9600...
Page 207: Gs1 Databar™ Limited
ENTER/EXIT PROGRAMMING MODE GS1 DataBar™ Limited Enable/Disable GS1 DATABAR™ LIMITED The following options apply to the GS1 DataBar™ Limited (formerly RSS Limited) symbology. GS1 DataBar™ Limited Enable/Disable When disabled, the reader will not read GS1 DataBar™ Limited barcodes. DEFAULT GS1 DataBar™ Limited = Disable GS1 DataBar™...
Page 208: Gs1 Databar™ Limited Minimum Reads
DEFAULT GS1 DataBar™ Limited Minimum Reads = 1 GS1 DataBar™ Limited Minimum Reads = 2 GS1 DataBar™ Limited Minimum Reads = 3 GS1 DataBar™ Limited Minimum Reads = 4 WLS9600...
Page 209: Code 93
ENTER/EXIT PROGRAMMING MODE Code 93 Enable/Disable CODE 93 The following options apply to the Code 93 symbology. Code 93 Enable/Disable Enables/Disables ability of reader to decode Code 93 labels. DEFAULT Code 93 = Disable Code 93 = Enable Code 93 Check Character Calculation Enables/disables calculation and verification of an optional Code 93 check character.
Page 210: Code 93 Check Character Transmission
Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set. DEFAULT Code 93 Length Control = Variable Length Code 93 = Fixed Length WLS9600...
Page 211: Code 93 Set Length 1
ENTER/EXIT PROGRAMMING MODE Code 93 Set Length 1 Code 93 Set Length 1 Specifies one of the barcode lengths for Code 93 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 212: Code 93 Set Length 2
Scan ENTER/EXIT PROGRAMMING MODE Select Code 93 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT WLS9600...
Page 213: Code 93 Minimum Reads
ENTER/EXIT PROGRAMMING MODE Code 93 Minimum Reads Code 93 Minimum Reads This feature specifies the minimum number of consecutive times a Code 93 label must be decoded before it is accepted as good read. DEFAULT Code 93 Minimum Reads = 1 Code 93 Minimum Reads = 2 Code 93 Minimum Reads = 3 Code 93 Minimum Reads = 4...
Page 214: Code 93 Decoding Level
Code 93 Decoding Level = Disable Code 93 Decoding Level = 1 (Conservative) Code 93 Decoding Level = 2 DEFAULT Code 93 Decoding Level = 3 Code 93 Decoding Level = 4 Code 93 Decoding Level = 5 (Aggressive) WLS9600...
Page 215: Code 93 Quiet Zones
ENTER/EXIT PROGRAMMING MODE Code 93 Quiet Zones Code 93 Quiet Zones Enables/disables quiet zones for Code 93. Code 93 Quiet Zones = No Quiet Zones Code 93 Quiet Zones = Quiet Zone on one side Code 93 Quiet Zones = Quiet Zones on two sides DEFAULT Code 93 Quiet Zones = Auto Code 93 Quiet Zones = Virtual Quiet Zones on two sides...
Page 216: Code 93 Stitching
Disable/enable fixed or variable length stitching for Code 93. Code 93 Stitching = Disable DEFAULT Code 93 Stitching = Enable Code 93 Character Correlation Enables/disables Character Correlation for Code 93. DEFAULT Code 93 Character Correlation = Disable Code 93 Character Correlation = Enable WLS9600...
Page 217: Msi
ENTER/EXIT PROGRAMMING MODE MSI Enable/Disable The following options apply to the MSI symbology. MSI Enable/Disable Enables/Disables ability of reader to decode MSI labels. DEFAULT MSI = Disable MSI = Enable MSI Check Character Calculation Enables/Disables calculation and verification of an optional MSI check character. MSI Check Character Calculation = Disable DEFAULT MSI Check Character Calculation = Enable Mod10...
Page 218: Msi Check Character Transmission
MSI symbology. For variable length decoding, a minimum and maximum length may be Variable Length. set. For fixed length decoding, two different lengths may be set. Fixed Length. DEFAULT MSI Length Control = Variable Length MSI = Fixed Length WLS9600...
Page 219: Msi Set Length 1
ENTER/EXIT PROGRAMMING MODE MSI Set Length 1 MSI Set Length 1 This feature specifies one of the barcode lengths for . Length 1 is the MSI Length Control minimum label length if in Mode, or the first fixed length if in Variable Length Fixed Length Mode.
Page 220: Msi Set Length 2
Scan ENTER/EXIT PROGRAMMING MODE Select MSI Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT WLS9600...
Page 221: Msi Minimum Reads
ENTER/EXIT PROGRAMMING MODE MSI Minimum Reads MSI Minimum Reads This feature specifies the minimum number of consecutive times an MSI label must be decoded before it is accepted as good read. MSI Minimum Reads = 1 MSI Minimum Reads = 2 MSI Minimum Reads = 3 DEFAULT MSI Minimum Reads = 4...
Page 222: Msi Decoding Level
MSI Decoding Level = Disable MSI Decoding Level = 1 (conservative) MSI Decoding Level = 2 DEFAULT MSI Decoding Level = 3 MSI Decoding Level = 4 MSI Decoding Level = 5 (aggressive) WLS9600...
Page 223: Plessey
ENTER/EXIT PROGRAMMING MODE Plessey Enable/Disable PLESSEY The following options apply to the Plessey symbology. Plessey Enable/Disable Enables/Disables ability of reader to decode Plessey labels. DEFAULT Plessey = Disable Plessey = Enable Product Reference Guide...
Page 224: Plessey Check Character Calculation
Enable Anker check char. verification Plessey Check Character Calculation = Enable Plessey std. and Anker check char verification Plessey Check Character Transmission Enables/disables transmission of an MSI check character. Plessey Check Character Transmission = Disable DEFAULT Plessey Check Character Transmission = Enable WLS9600...
Page 225: Plessey Length Control
ENTER/EXIT PROGRAMMING MODE Plessey Length Control Plessey Length Control This feature specifies either variable length decoding or fixed length decoding for the Plessey symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set.
Page 226: Plessey Set Length 1
Scan ENTER/EXIT PROGRAMMING MODE Select Plessey Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 01 = Length 1 is 1 Character DEFAULT WLS9600...
Page 227: Plessey Set Length 2
ENTER/EXIT PROGRAMMING MODE Plessey Set Length 2 Plessey Set Length 2 This feature specifies one of the barcode lengths for Plessey Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 228: Plessey Minimum Reads
This feature specifies the minimum number of consecutive times a Plessey label must be decoded before it is accepted as good read. Plessey Minimum Reads = 1 Plessey Minimum Reads = 2 Plessey Minimum Reads = 3 DEFAULT Plessey Minimum Reads = 4 WLS9600...
Page 229: Plessey Decoding Level
ENTER/EXIT PROGRAMMING MODE Plessey Decoding Level Plessey Decoding Level Specifies the decoding level for Plessey. Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. page 242 for more information on this feature.
Page 230: Plessey Stitching
ENTER/EXIT PROGRAMMING MODE Plessey Stitching Enables/disables fixed length stitching for Plessey. DEFAULT Plessey Stitching = Disable Plessey Stitching = Enable Plessey Character Correlation Enables/disables Character Correlation for Plessey. DEFAULT Plessey Character Correlation = Disable Plessey Character Correlation = Enable WLS9600...
Page 231: Code 4
ENTER/EXIT PROGRAMMING MODE Code 4 Enable/Disable CODE 4 The following options apply to the Code 4 symbology. Code 4 Enable/Disable Enables/Disables ability of imager to decode Code 4 labels. DEFAULT Code 4 = Disable Code 4 = Enable Code 4 Check Character Transmission This feature enables/disables transmission of an optional Code 4 check character.
Page 232: Code 4 Hex To Decimal Conversion
Code 4 Hex to Decimal Conversion = Enable CODE 5 The following options apply to the Code 5 symbology. Code 5 Enable/Disable Enables/Disables ability of imager to decode Code 5 labels. DEFAULT Code 5 = Disable Code 5 = Enable WLS9600...
Page 233: Code 5 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE Code 5 Check Character Transmission Code 5 Check Character Transmission This feature enables/disables transmission of an optional Code 5 check character. Code 5 Check Character Transmission = Don’t Send DEFAULT Code 5 Check Character Transmission = Send Code 5 Hex to Decimal Conversion This feature enables/disables the conversion of hexidecimal label data to decimal label data.
Page 234: Code 4 And Code 5 Common Configuration Items
Code 4 and Code 5 Decoding Level = 1 (conservative) Code 4 and Code 5 Decoding Level = 2 DEFAULT Code 4 and Code 5 Decoding Level = 3 Code 4 and Code 5 Decoding Level = 4 Code 4 and Code 5 Decoding Level = 5 (aggressive) WLS9600...
Page 235: Code 4 And Code 5 Minimum Reads
ENTER/EXIT PROGRAMMING MODE Code 4 and Code 5 Minimum Reads Code 4 and Code 5 Minimum Reads This feature specifies the minimum number of consecutive times a Code 4 or Code 5 label must be decoded before it is accepted as good read. DEFAULT Code 4 or Code 5 Minimum Reads = 1 Code 4 or Code 5 Minimum Reads = 2...
Page 236 Code 4 and Code 5 Common Configuration Items ENTER/EXIT PROGRAMMING MODE NOTES WLS9600...
Page 237: Laser Features
LASER FEATURES on page 228 ASER NGLE on page 228 ASER IRECTIONAL ECODING on page 229 LWAYS IMEOUT on page 230 This section provides options and programming related to the reader’s laser features. Reference Appendix B, Standard Defaults for a listing of standard factory settings. For hands-free or stand operations, it is recommended that Flashing scan "Scan Mode"...
Page 238: Laser Scan Angle
Shuts down the motor (laser mirror dithering) during laser engine idle time to reduce overall scanner power consumption. Dither Enable. Allows the laser engine motor to continue dithering when laser is not active; may provide an improved read response time. DEFAULT Dither Disable Dither Enable WLS9600...
Page 239: Bi-Directional Read Decoding
ENTER/EXIT PROGRAMMING MODE Bi-Directional Read Decoding Bi-Directional Read Decoding This configuration provides control over the good read and barcode label requirement. This programming option for Gyphon Laser affects all barcode symbologies. Bi-Directional Read Disable. When Bi-directional reading is disabled, the laser scan is only required to obtain a valid label read in one scanning direction.
Page 240: Always On Scan Mode Timeout
ENTER/EXIT PROGRAMMING MODE Always On Scan Mode Timeout When the WLS9600 is in Always On scanning mode, timeout periods can be configured. If the programmed Always On Timeout elapses, the reader will shut down and a trigger pull is required to resume operation.
Page 241: References
Chapter 5 References This section contains explanations and examples of selected barcode features. See the Configuration section for the actual barcode labels used to configure the reader. RS-232 Parameters RS-232 Only Baud Rate Baud rate is the number of bits of data transmitted per second. Set the reader's baud rate to match the baud rate setting of the host device.
Page 242: Rs-232/Usb Com Parameters
Divide by 10 (pad with leading zeroes to yield two-digits) Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT INTERCHARACTER DELAY SETTING Scan Two Characters From ‘0’ and ‘5’ ‘5’ and ‘0’ ‘6’ and ‘0’ ‘8’ and ‘5’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE WLS9600...
Page 243 RS-232 Parameters ACK NAK Options This enables/disables the ability of the reader to support the RS-232 ACK/NAK protocol. When configured, the reader and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Options are: •...
Page 244 Hex equivalent from ASCII 0x15 0x24 0x40 0x3E Chart Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT ACK CHARACTER SETTING Scan Two Characters From ‘1’ and ‘5’ ‘2’ and ‘4’ ‘4’ and ‘0’ ‘3’ AND ‘E’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE WLS9600...
Page 245 RS-232 Parameters ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout. To set this value: 1.
Page 246 Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT ACK NAK RETRY COUNT SETTING Scan Three Characters From ‘0’ , ‘0’ and ‘0’ ‘0’ , ‘0’ and ‘3’ ‘0’ , ‘5’ and ‘4’ ‘2’ , ‘5’ and ‘5’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE WLS9600...
Page 247 RS-232 Parameters Disable Character Specifies the value of the RS-232 host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 248 ASCII 0x65 0x7D 0x45 0xFF Chart Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT DISABLE CHARACTER VALUE SETTING Scan Two Characters From ‘6’ and ‘5’ ‘7’ and ‘D’ ‘4’ and ‘5’ ‘F’ AND ‘F’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE WLS9600...
Page 249: Keyboard Interface
Keyboard Interface Keyboard Interface Wedge Quiet Interval Specifies the amount of time the reader looks for keyboard activity before it breaks the keyboard connection in order to transmit data to host. The range is from 0 to 990ms in 10ms increments. This feature applies ONLY to the Keyboard Wedge interface.
Page 250: Intercharacter Delay
Divide by 10 (and pad with leading zeroes to yield two- digits) Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT INTERCHARACTER DELAY SETTING Scan Two Characters From ‘0’ and ‘5’ ‘1’ and ‘5’ ‘6’ and ‘0’ ‘8’ and ‘5’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE WLS9600...
Page 251: Intercode Delay
Keyboard Interface Intercode Delay Specifies the delay between labels transmitted to the host for this interface. The selectable range for this feature is from 0 to 99 seconds. Follow these instructions to set this feature: 1. Determine the desired setting. 2.
Page 252: Symbologies
If you make a mistake before the last character, scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. 5. Scan the ENTER/EXIT PROGRAMMING MODE barcode to exit Prog Mode. WLS9600...
Page 253 Symbologies Set Length 2 This feature allows you to set one of the barcode lengths for the specified symbology. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 254: Data Editing
You can add any character from the ASCII Chart (from 00-FF) on the inside back cover of this manual as a prefix, suffix or Label ID. • Enter prefixes and suffixes in the order in which you want them to appear on the output. WLS9600...
Page 255: Global Prefix/Suffix
Data Editing Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the barcode data) and/ or as a suffix (in a position following the barcode data) as indicated in Figure 7. Figure 7. Prefix and Suffix Positions OR...
Page 256: Global Aim Id
Code 11 a. UPC-A and UPC-E labels are converted to EAN 13 when adding AIM IDs. b. ISBN (X with a 0 modifier character) Figure 8. AIM ID Prefix Label ID AIM ID Bar Code Data Label ID Suffix WLS9600...
Page 257: Label Id
Data Editing Label ID A Label ID is a customizable code of up to three ASCII characters (each can be one of hex 0x01- 0xFF), used to identify a barcode (symbology) type. It can be appended previous to or following the transmitted barcode data depending upon how this option is enabled.
Page 258 Interleaved 2 of 5 CIP HR 650000 650000 ISBN 490000 400000 ISBT128 660000 660000 ISSN 6E0000 6E0000 400000 5A0000 Plessey 610000 610000 730000 500000 UPCA 410000 430000 UPCA P2 410000 460000 UPCA P5 410000 470000 UPCA P8 410000 510000 WLS9600...
Page 259 Data Editing Label ID: Set Individually Per Symbology To configure a Label ID individually for a single symbology: 1. Go to page 55 and scan the ENTER/EXIT barcode. 2. Select Label ID position as either BEFORE (Enable as Prefix) or AFTER (Enable as suf- fix) by scanning the appropriate barcode in the section "Label ID Control"on page Reference Figure 9 for Label ID positioning options if multiple identification features are...
Page 260 You can then start again at the beginning. Scan the ENTER/EXIT barcode (Scanner exits Label ID entry) Scan the ENTER/EXIT barcode (Scanner exits Programming Mode) once again DB*[barcode [barcode Result: +[barcode data] [barcode data]PH data] data]=C3 WLS9600...
Page 261: Character Conversion
Data Editing Character Conversion Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first character in the pair is the character that will be converted. The second character in the pair is the character to convert to. If the character to convert in a pair is FF, then no conversion is done.
Page 262: Reading Parameters
Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT LABEL GONE TIMEOUT SETTING Scan Three Characters From ‘0’ , ‘0’ and ‘5’ ‘0’ , ‘1’ and ‘5’ ‘1’ , ‘8’ and ‘0’ ‘‘2’ , ‘5’ and ‘5’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE WLS9600...
Page 263: Good Read Led Duration
Reading Parameters Good Read LED Duration This feature specifies the amount of time that the Good Read LED remains on following a good read. The good read LED on time can be set within a range of 10 milliseconds to 2,550 milliseconds (0.001 to 2.55 seconds) in 100ms increments.
Page 264: Scanning Features
Flash Off Time. When Flash is ON the imager reads continuously; when Flash is OFF scanning is deactivated. Flashing is the recommended scan mode for WLS9600 hands-free (stand mode) of operation Always On. No trigger pull is required to read a barcode. Scanning is continually on. If the trigger is pulled, the reader acts as if it is in Trigger Single Mode.
Page 265: Scanning Active Time
Scanning Features Scanning Active Time This setting specifies the amount of time that the reader stays in scan ON state once the state is entered. The range for this setting is from 1 to 255 seconds in 1-second increments. Follow these instructions to set this feature: 1.
Page 266: Flash On Time
Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT FLASH OFF TIME SETTING Scan Two Characters From ‘0’ and ‘5’ ‘1’ and ‘0’ ‘5’ and ‘2’ ‘9’ and ‘9’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE WLS9600...
Page 267: Flash Off Time
Scanning Features Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments. Follow these instructions to set this feature. 1.
Page 268 References NOTES WLS9600...
Page 269: Technical Specifications
Appendix A Technical Specifications Table contains Physical and Performance Characteristics, User Environment and Regulatory information. Table provides Standard Cable Pinouts. Table 45. Technical Specifications Item Description Physical Characteristics Black/Yellow Color Dimensions Height 7.1”/181 mm Length 3.9”/100 mm Width 2.8”/71 mm Weight (without cable) Approximately 6.0 ounces/169 g Electrical Characteristics...
Page 270 13 mils DOF based on EAN. All others are Code 39. All labels grade A, typical environmental light, 20°C, label inclina- tion 10° b. See "Interface Selection"on page for a listing of available interface sets by model type. WLS9600...
Page 271: Standard Cable Pinouts
Technical Specifications Standard Cable Pinouts Figure 10 and Table provide standard pinout information. Figure 10. Standard Cable Pinouts Bottom of Scanner Cable Strain Relief Pin 10 To Host Pin 1 Cable Cable Clip (Latch) Interface Cable Port The signal descriptions in Table apply to the connector on the reader and are for reference only.
Page 272: Led And Beeper Indications
Upon successful read of a label, the flashes momentar- software shall turn the green spot on for the time specified by the configured value. Good Read LED Duration a. Except when in sleep mode or when a other than 00 is selected WLS9600...
Page 273: Error Codes
Technical Specifications Table 48 . Programming Mode Indications Programming Mode - The following indications ONLY occur when the reader is in Programming Mode. Label Program- A valid programming label has Reader sounds four low frequency LED blinks continuously ming Mode Entry been scanned.
Page 274 Technical Specifications NOTES WLS9600...
Page 275: Standard Defaults
Appendix B Standard Defaults The most common configuration settings are listed in the “Default” column of the table below. Page references are also provided for feature descriptions and programming barcodes for each parameter. A column has also been provided for recording of your preferred default settings for these same configurable features.
Page 276 Global Suffix = 0x0D (CR) Global AIM ID Disable GS1-128 AIM ID Enable Label ID: Pre-loaded Sets USA Set Label ID Control Disable Set Global Mid Label ID Characters No Mid Label ID Character Case Conversion Disable Character Conversion No Char Conversion WLS9600...
Page 277 Standard Defaults Page Parameter Default Your Setting Number READING PARAMETERS Double Read Timeout 0.6 Second Label Gone Timeout 160 ms Power On Alert 4 Beeps Good Read: When to Indicate After Decode Good Read Beep Type Mono Good Read Beep Frequency Medium Good Read Beep Length 80 ms...
Page 278 P2 Add-Ons Minimum Reads P5 Add-Ons Minimum Reads GS1-128 Add-Ons Minimum Reads Code 39 Code 39 Enable/Disable Enable Code 39 Check Character Calculation Don’t Calculate Code 39 Check Character Transmission Don’t Send Code 39 Start/Stop Character Transmission Don’t Transmit WLS9600...
Page 279 Standard Defaults Page Parameter Default Your Setting Number Code 39 Full ASCII Disable Code 39 Quiet Zones Auto Code 39 Minimum Reads Code 39 Decoding Level Code 39 Length Control Variable Code 39 Set Length 1 Code 39 Set Length 2 Code 39 Interdigit Ratio Code 39 Character Correlation Disable...
Page 280 Follett 2 of 5 Follett 2 of 5 Enable/Disable Disable Interleaved 2 of 5 CIP HR Interleaved 2 of 5 CIP HR Enable/Disable Disable Standard 2 of 5 Standard 2 of 5 Enable/Disable Disable Standard 2 of 5 Check Character Calculation Disable WLS9600...
Page 281 Standard Defaults Page Parameter Default Your Setting Number Standard 2 of 5 Check Character Transmission Send Standard 2 of 5 Minimum Reads Standard 2 of 5 Decoding Level Standard 2 of 5 Length Control Variable Standard 2 of 5 Set Length 1 Standard 2 of 5 Set Length 2 Standard 2 of 5 Character Correlation Disable...
Page 282 Code 11 Check Character Transmission Send Code 11 Minimum Reads Code 11 Length Control Variable Code 11 Set Length 1 Code 11 Set Length 2 Code 11 Interdigit Ratio Code 11 Decoding Level Code 11 Character Correlation Disable Code 11 Stitching Disable WLS9600...
Page 283 Standard Defaults Page Parameter Default Your Setting Number GS1 DataBar™ Omnidirectional GS1 DataBar™ Omnidirectional Enable/Disable Disable GS1 DataBar™ Omnidirectional GS1-128 Emulation Disable GS1 DataBar™ Omnidirectional Minimum Reads GS1 DataBar™ Expanded GS1 DataBar™ Expanded Enable/Disable Disable GS1 DataBar™ Expanded GS1-128 Emulation Disable GS1 DataBar™...
Page 284 Code 4 and 5 Common Configuration Items Code 4 and 5 Decoding Level Code 4 and Code 5 Minimum Reads Laser Features Laser Scan Angle 47 degrees Laser Idle Mode Disable Bi-Directional Read Decoding Enable Always On Scan Mode Timeout 5 Hours WLS9600...
Page 285: Sample Barcodes
Appendix C Sample Barcodes The sample barcodes in this appendix are typical representations for their symbology types. 1D Barcodes UPC-A EAN-13 978033029095 Code 39 Code 128 Code 128 Interleaved 2 of 5 Product Reference Guide...
Page 286 Sample Barcodes Sample Barcodes (continued) Code 32 Codabar 13579 Code 93 Code 11 123456789 WLS9600...
Page 287 Sample Barcodes GS1 DataBar™ (RSS) GS1 DataBar™ GS1 DataBar™ variants must be enabled to read the barcodes below (see Omnidirectional on page 191 GS1 DataBar™ Expanded Stacked 10293847560192837465019283746029478450366523 GS1 DataBar™ Expanded 1234890hjio9900mnb GS1 DataBar™ Limited 08672345650916 GS1 DataBar™-14 GS1 DataBar™ Omnidirectional Truncated 55432198673467 GS1 DataBar™...
Page 288 Sample Barcodes NOTES WLS9600...
Page 289: Keypad
Appendix D Keypad Use the barcodes in this appendix to enter numbers as you would select digits/characters from a keypad. Product Reference Guide...
Page 290 Keypad HID Variable PIN Code Cancel an incomplete HID Variable PIN Code Exit HID Variable PIN Code WLS9600...
Page 291 Keypad Product Reference Guide...
Page 292 Keypad NOTES WLS9600...
Page 293: Scancode Tables
Appendix E Scancode Tables Control Character Emulation Control character emulation selects from different scancode tables as listed in this appendix. Each of the control character sets below are detailed by interface type in the tables. These apply to Wedge and USB Keyboard platforms. Control Character 00 .
Page 294: Interface Type Pc At Ps/2, Usb-Keyboard Or Usb-Keyboard For Apple
ð ñ ò ó ô õ ö ÷ ø ù ú û ü ý þ ÿ Extended characters (sky blue) are sent through dedicated keys (when available in the selected country mode) or by using an Alt Mode sequence. WLS9600...
Page 295 Interface Type PC AT PS/2, USB-Keyboard or USB-Keyboard for APPLE (continued) Table 51. Scancode Set When Control Character is 02 Enter Ar↓ Ar↑ Al↓ Al ↑ Cl ↓ Cl ↑ Cr ↓ Cr ↑  S+ Tab Enter Pg Up Keypd Pg Dwn Home...
Page 296: Interface Type Pc At Ps/2 Alt Mode Or Usb-Keyboard Alt Mode
A+0217 A+0218 A+0219 A+0220 A+0221 A+0222 A+0223 A+0224 A+0225 A+0226 A+0227 A+0228 A+0229 A+0230 A+0231 A+0232 A+0233 A+0234 A+0235 A+0236 A+0237 A+0238 A+0239 A+0240 A+0241 A+0242 A+0243 A+0244 A+0245 A+0246 A+0247 A+0248 A+0249 A+0250 A+0251 A+052 A+0253 A+0254 A+0255 WLS9600...
Page 297 Interface type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode (continued) Table 53. Scancode Set When Control Character is 02 Enter Ar↓ Ar↑ Al↓ Al ↑ Cl ↓ Cl ↑ Cr ↓ Cr ↑  S+ Tab Enter Pg Up Keypd Pg Dwn Home...
Page 298: Digital Interface
Sh↓ Sh↑ (keyp)     Cl ↓ Cl ↑ Table 55. Scancode Set When Control Character is 02 Enter Cl ↓ Cl ↑ à S+ Tab Enter Keypd    Space “ & ‘ < > WLS9600...
Page 299: Ibm31Xx 102-Key
IBM31xx 102-key Table 56. Scancode Set When Control Character is 00 or 01 NULL C(S)+A C(S)+B C(S)+C C(S)+E C(S)+F C(S)+G C(S)+J C(S)+K C(S)+L Enter C(S)+N C(S)+O C(S)+P C(S)+Q C(S)+R C(S)+S C(S)+T C(S)+U C(S)+V C(S)+W C(S)+X C(S)+Y C(S)+Z C(S)+\ C(S)+^ C(S)+_ Space “...
Page 300: Ibm Xt
Table 59. Scancode Set when Control Character 02 Enter Ar↓ Ar↑ Al↓ Al ↑ Cl ↓ Cl ↑ Cr ↓ Cr ↑  S+ Tab Enter Pg Up Keypd Pg Dwn Home    Space “ & ‘ < > ‘ WLS9600...
Page 301: Microsoft Windows Codepage 1252
Scancode Tables Microsoft Windows Codepage 1252 Windows-1252 is a character encoding of the Latin alphabet, used by default in the legacy components of Microsoft Windows in English and some other Western languages. Product Reference Guide...
