Autocompensator Mechanism (Acm)-Standard Tray Removal - Lexmark X543 Service Manual

7525-xxx
Autocompensator mechanism (ACM)—standard tray removal
Remove the toner bottles, the waste toner container, and the imaging unit (IU). See
1.
removal" on page 4-45
Remove the rear shield. See
2.
Remove the left cover. See
3.
Remove the right cover. See
4.

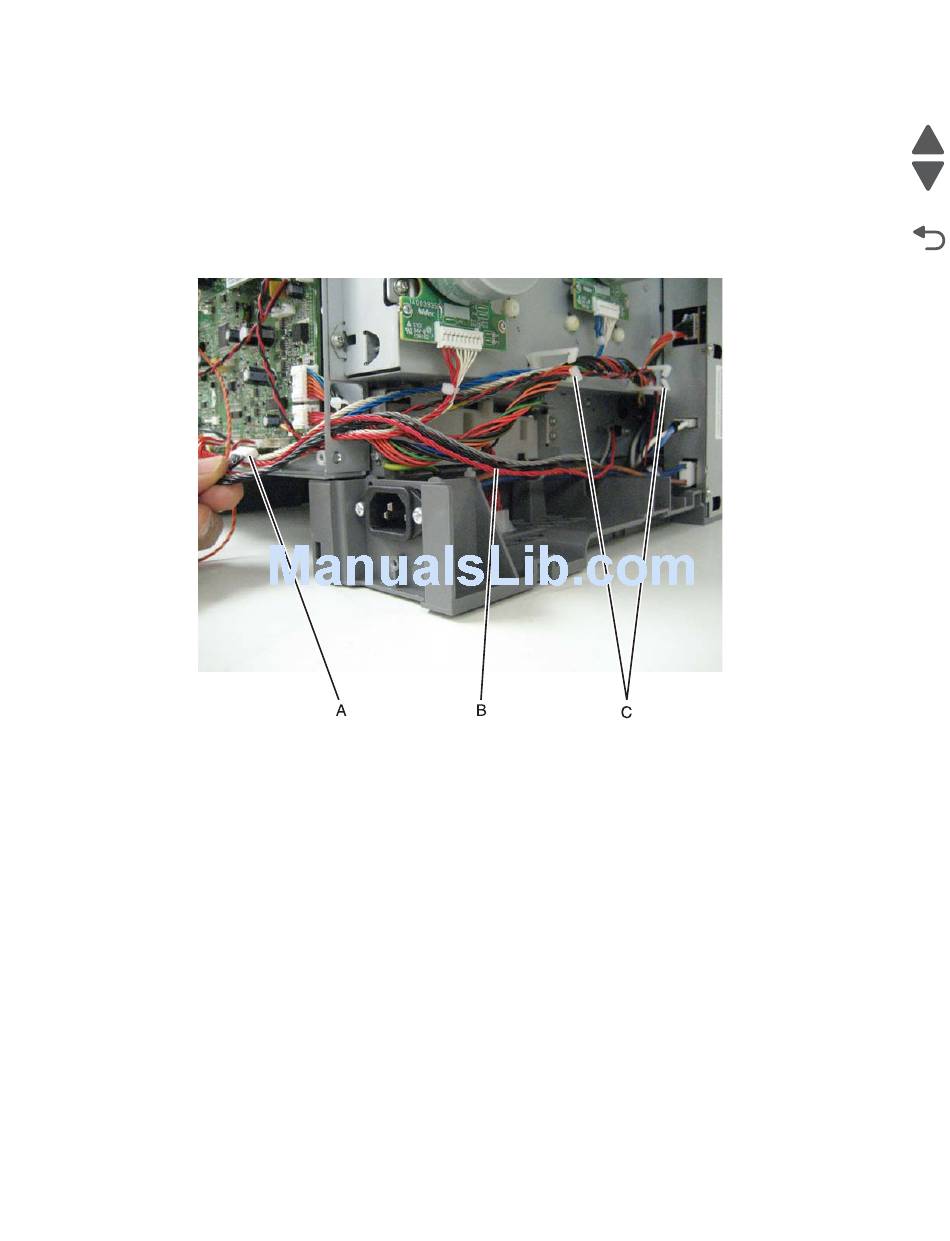

5. Disconnect the autocompensator mechanism (ACM) cable connector JSP1 (A) from the controller board.
Unclip the cable (B) from the retainers (C) on the left side.
6.
7. Reinstall the rear shield to protect the controller board. Turn the printer so the bottom is facing you.
Warning: For models with a wireless antenna, use supports to prevent the antenna from taking the weight
of the printer.
Carefully tilt the printer so the rear shield rests on the table.
8.
Service Manual
4-12
and see
"Waste toner bottle" on page
"Rear shield removal" on page
"Left cover removal" on page
"Right cover removal" on page
"Imaging unit (IU)
4-72.
4-7.
4-4.
4-7.
