Right upper cover removal

Note: First, remove the bridge unit, finisher and finisher docking bracket, if equipped.
1.

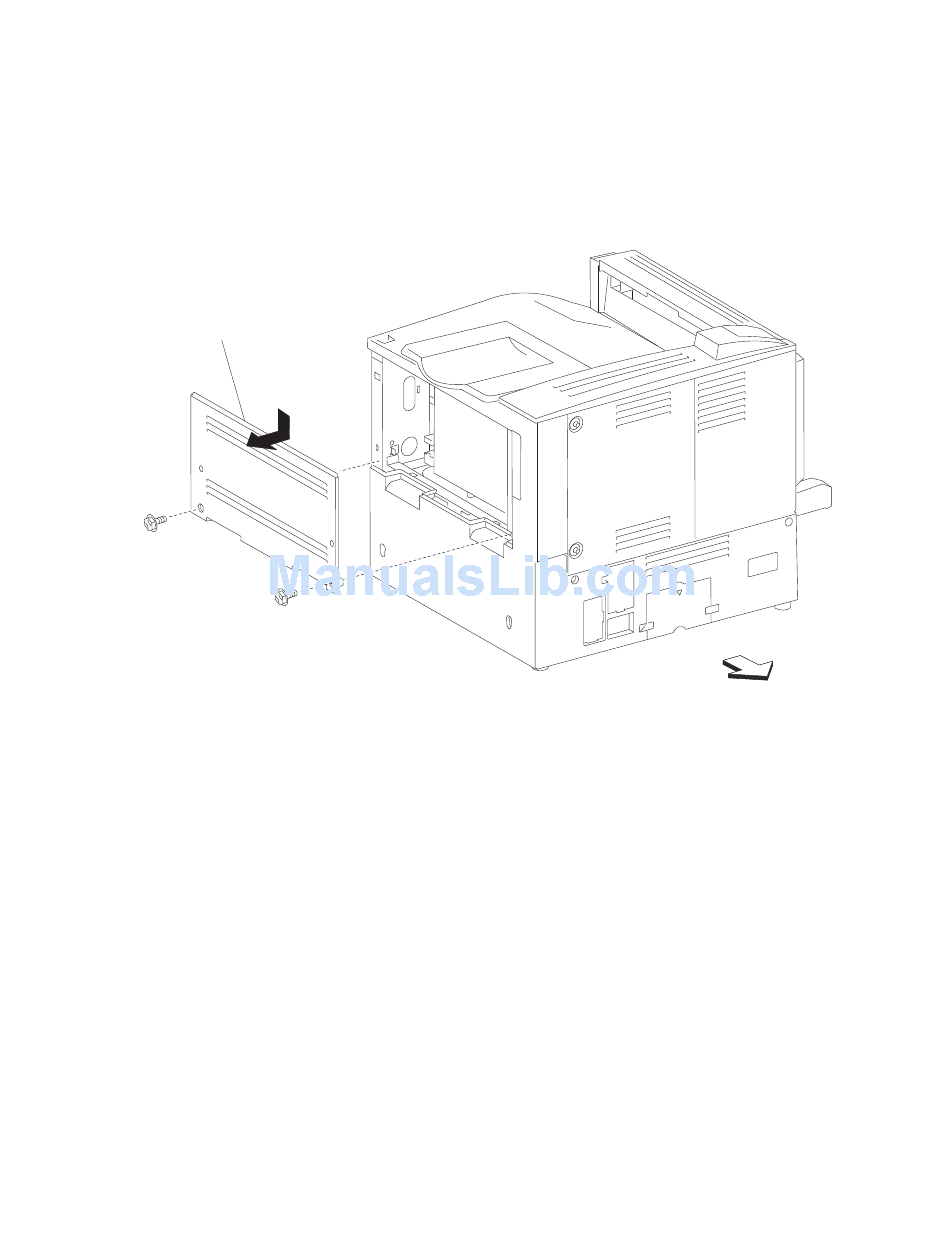

Remove the two screws securing the right upper cover (A).
2.
Move the upper edge of the right upper cover (A) downward and outward as shown by the arrow.
3.
Move the lower edge of the right upper cover (A) downward to release the right upper cover (A).
4.
Remove the right upper cover (A).
Note: The right upper cover (A) may take some extra force to remove.
