Vertical Drive Gear Assembly - Lexmark W850n Service Manual

4024-110

Vertical drive gear assembly

1.
Remove the MPF rear cover. See
2.
Remove the MPF feed unit assembly. See
3.
Remove the printer left door assembly. See
4.
Open the printer left lower door assembly.
5.

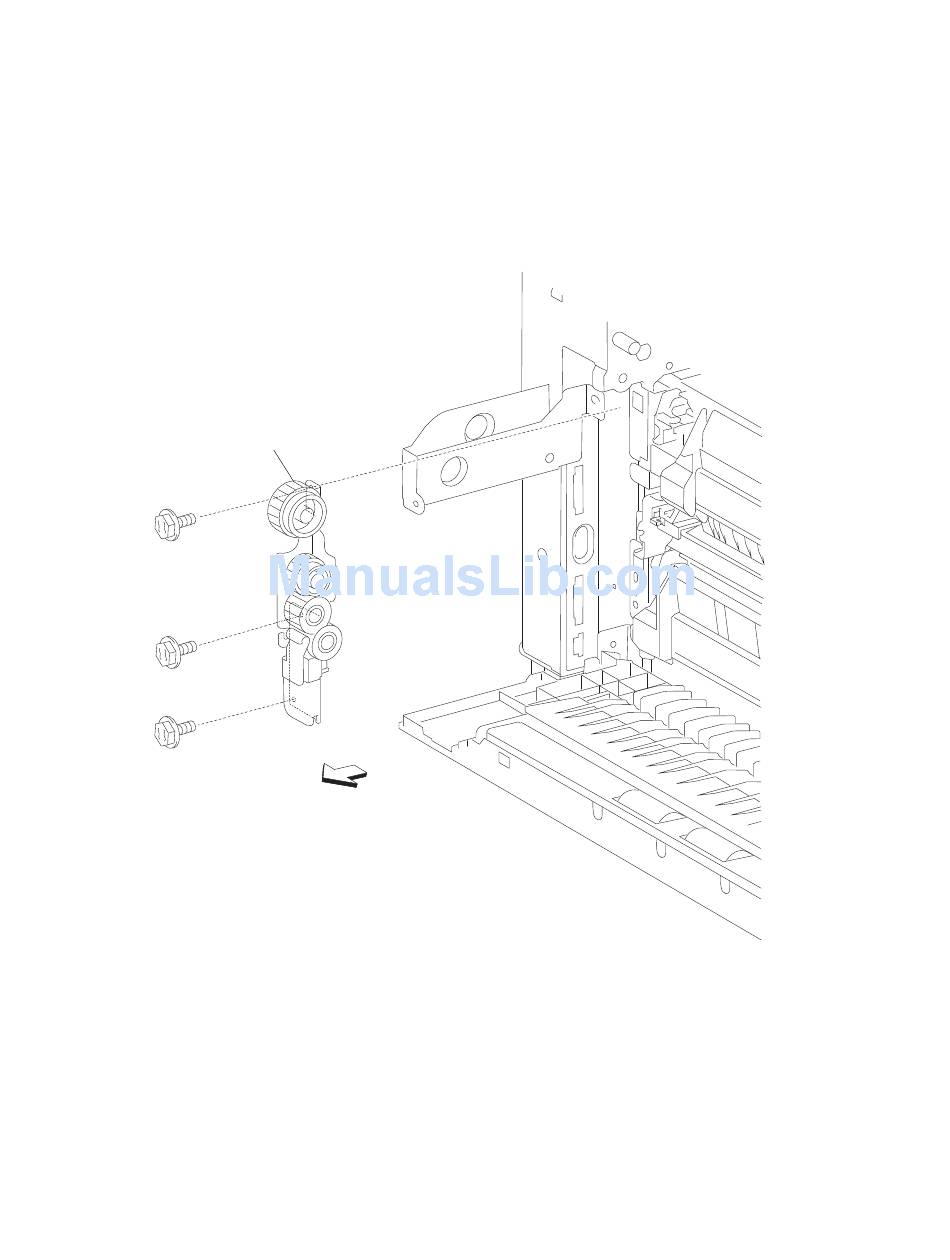

Remove the three screws securing the vertical drive gear assembly (A).
6.
Release the harness from the clamp on the vertical drive gear assembly (A).
7.
Remove the vertical drive gear assembly (A).
4-64
Printer Service Manual
"MPF rear cover removal" on page
A
Left
"MPF feed unit assembly removal" on page
"Printer left door support strap removal" on page
4-55.
4-51.
4-71.
