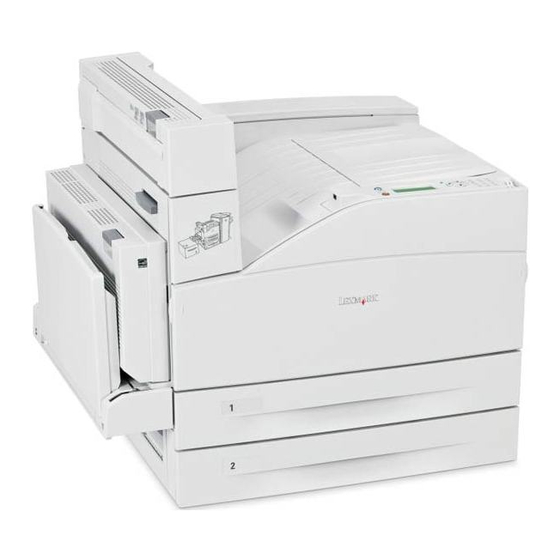

Lexmark W850 Technical Reference Manual

Technical reference
Hide thumbs Also See for W850:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Driver Manual, Administrator's Manual
X860de, X862de, X862dte, X864de,
X864dhe, W850n, W850dn

Technical Reference

April 2011
www.lexmark.com
Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other countries.
All other trademarks are the property of their respective owners.
© 2011 Lexmark International, Inc.
All rights reserved.
740 West New Circle Road
Lexington, Kentucky 40550
