4024-110
4.

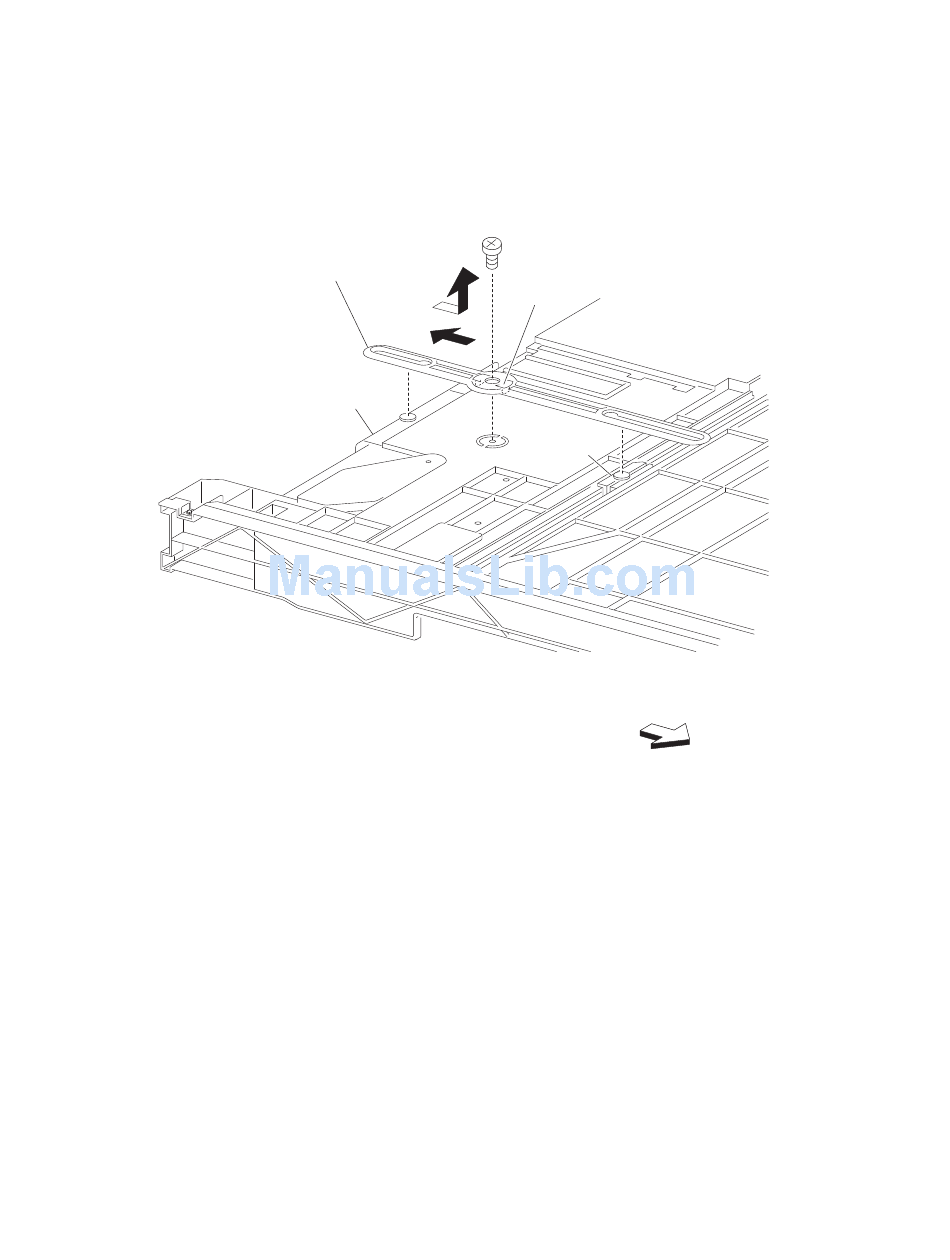

Turn the media tray assembly upside down, and remove the screw and the two hooks securing the
actuator link (B) to the media tray.
5.
Release the boss on the media end guide actuator (C) from the hole in the actuator link (B) by moving the
link in the direction of the arrow.
6.
Remove the media end guide actuator (C).
7.
Turn the media tray assembly right side up, and slide the media tray end guide (D) toward the center of the
media tray assembly to remove.
4-28
Printer Service Manual
B
C
Hook
End guide
Front
