Printer engine card assembly removal

1.
Remove the rear RIP card cover. See
2.
Remove the rear motor cover. See
3.
Remove the rear lower cover. See
4.

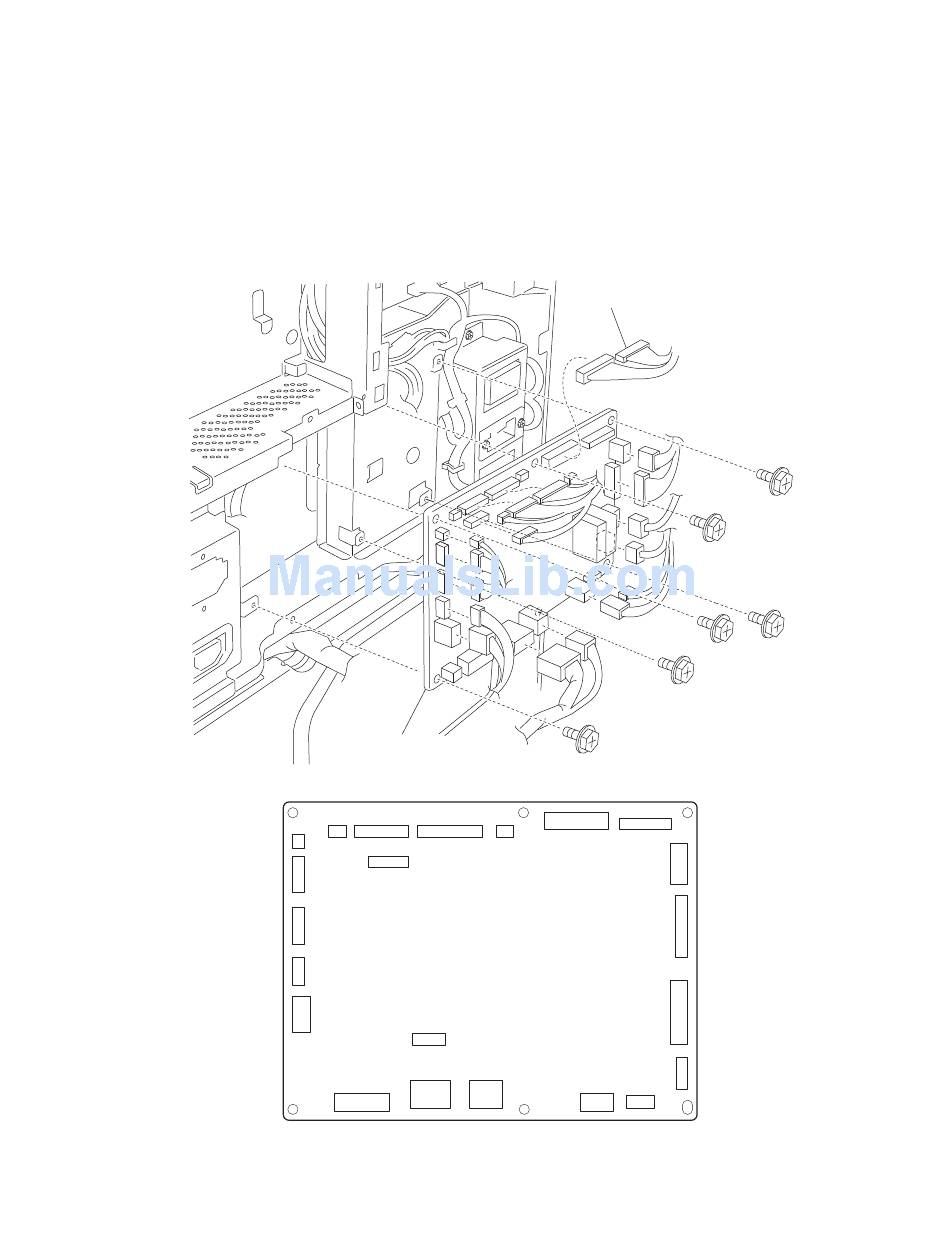

Disconnect all the connectors from the engine controller card assembly (A).
Note: Connectors P405, P414, P416, and P400 have a hook that must be released.
5.
Remove the six screws securing the printer engine card assembly (A).
6.
Remove the printer engine card assembly (A).
"Rear RIP card cover removal" on page
"Rear motor cover removal" on page
"Rear lower cover removal" on page
A
P407 P406
P420 P402
P404
P421 P419
P412
P401
P400
P429
P413 P417
P416
4-14.
4-15.
Connector
Rear
P403
P408
P405
P410
P409
P411
P414 P415
Repair information
4024-110
4-125.
4-119
