Operator Panel Assembly Removal - Lexmark W850n Service Manual

4024-110

Operator panel assembly removal

Warning: In the event of replacement of any one of the following components:
•
•
Replace only one component at a time. Replace the required component, and perform a POR before replacing a
second component listed above. If this procedure is not followed, the printer will be rendered inoperable. Never
replace two or more of the components listed above without a POR after installing each one or the printer will be
rendered inoperable.
Warning: Never install and remove components listed above as a method of troubleshooting components.
Once a component has been installed in a machine, it cannot be used in another machine. It must be
returned to the manufacturer.
1.

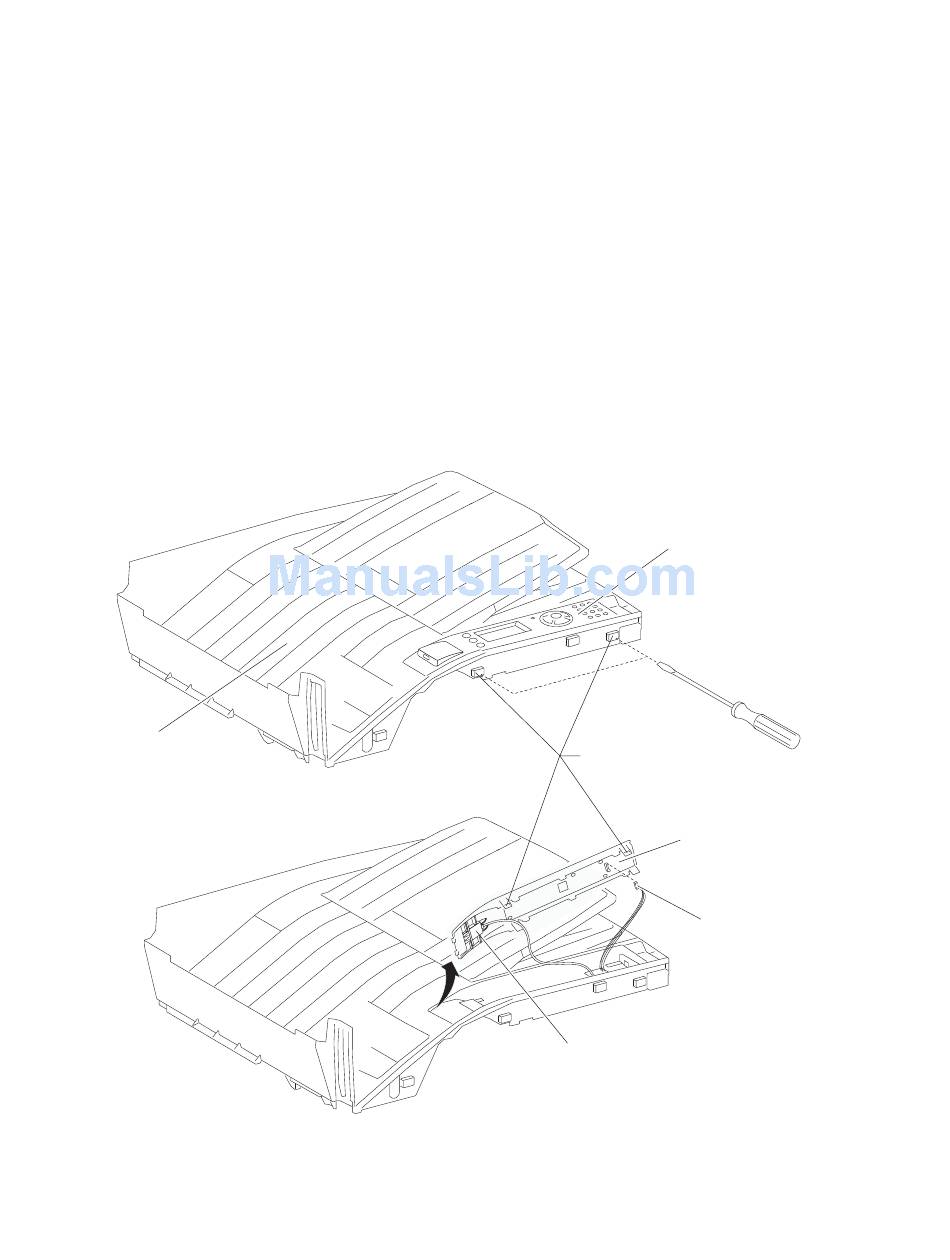

Release the two front hooks of the operator panel assembly (A) by inserting a flat-tip screwdriver into the
two slots on the top cover assembly (B).
2.
While releasing the hooks, lift the operator panel assembly (A) upward in the direction of the arrow.
3.
Remove the USB connector (C) from the operator panel assembly (A).
4.
Detach the operator panel connector (D) from the panel.
B
4-6
Printer Service Manual
Operator panel assembly
RIP card assembly
A
Hooks
A
D
C
