5.

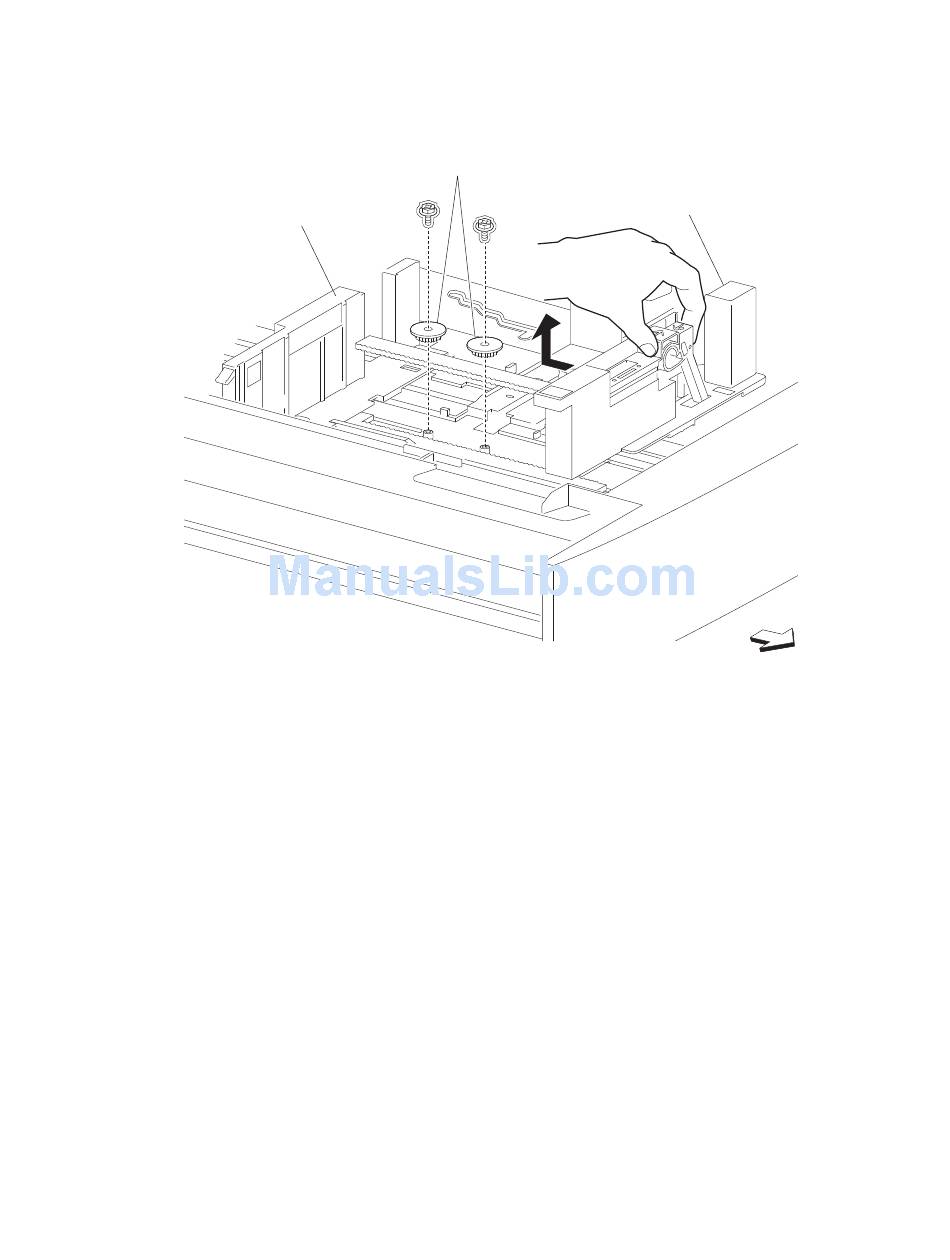

Remove the two screws securing the two pinion gears (C) to the media tray.
6.
Remove the pinion gears (C).
7.
Remove the front media guide assembly (D) and the rear media guide (E) by sliding them toward the
center of the media tray assembly, and lifting up.
E
C
4024-110
D
Front
Repair information
4-25
