4024-110

Media tray side guides removal

1.
Remove the media tray.
2.

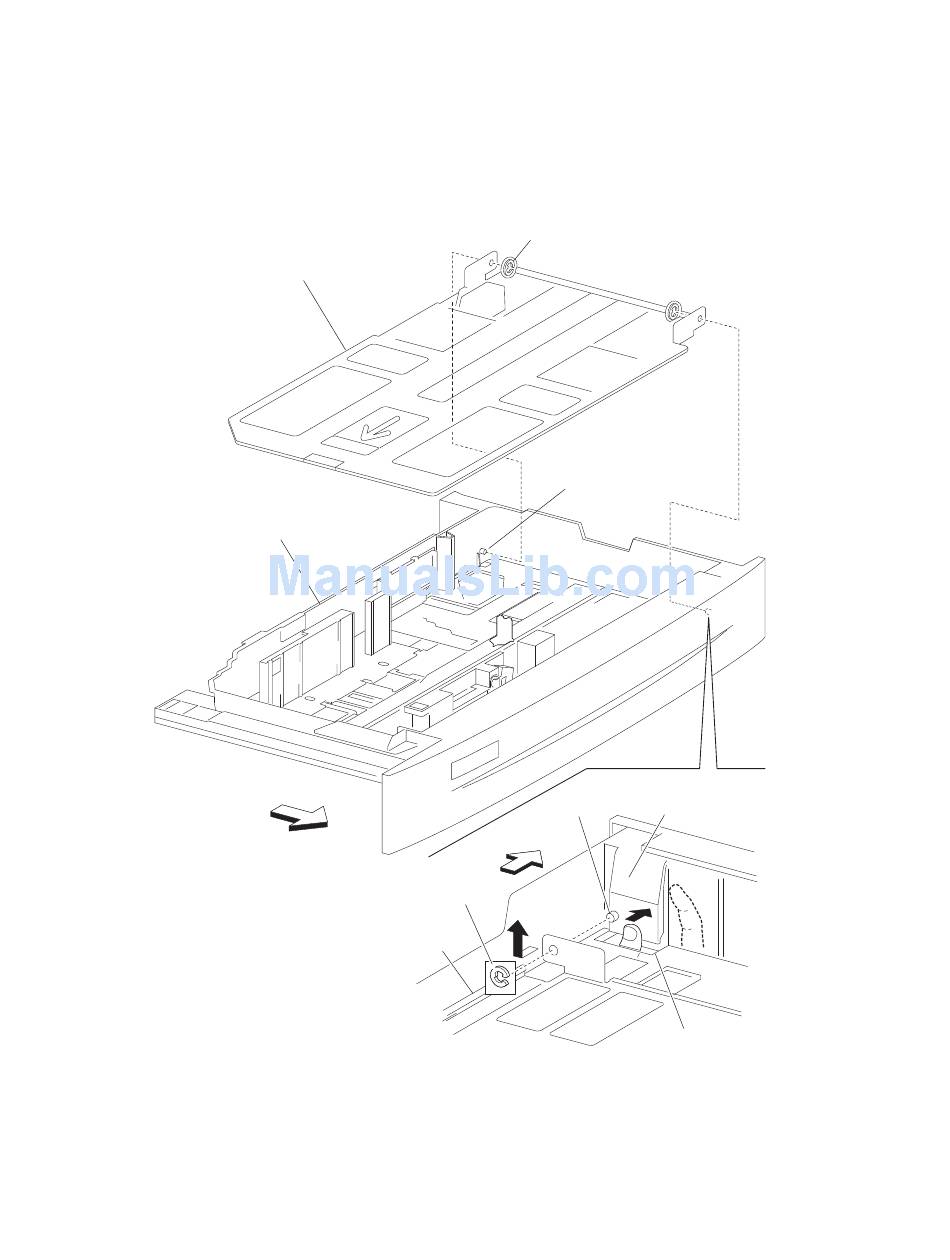

Remove the two e-rings securing the metal bottom plate (A) to the media tray using a small prying tool.
3.
Push the front hinge point (B) in the direction of the arrow to release the front boss from the metal bottom
plate (A).
4.
Remove the metal bottom plate (A) by sliding it off the rear boss.
4-24
Printer Service Manual
A
Tray
Front
E-ring
A
E-ring
Rear boss
Boss
B
Front
Square hole
