Operation

Front Panel Controls and Indicators

All of the switcher's controls and indicators, with the exception of the Reset button,
are on the front panel (figure 3-1). A label window above the input buttons can be
labeled with text and/or graphics. The 16 x 2 LCD display indicates the switcher
status, menu selections, the data rate, and the status of additional system features.

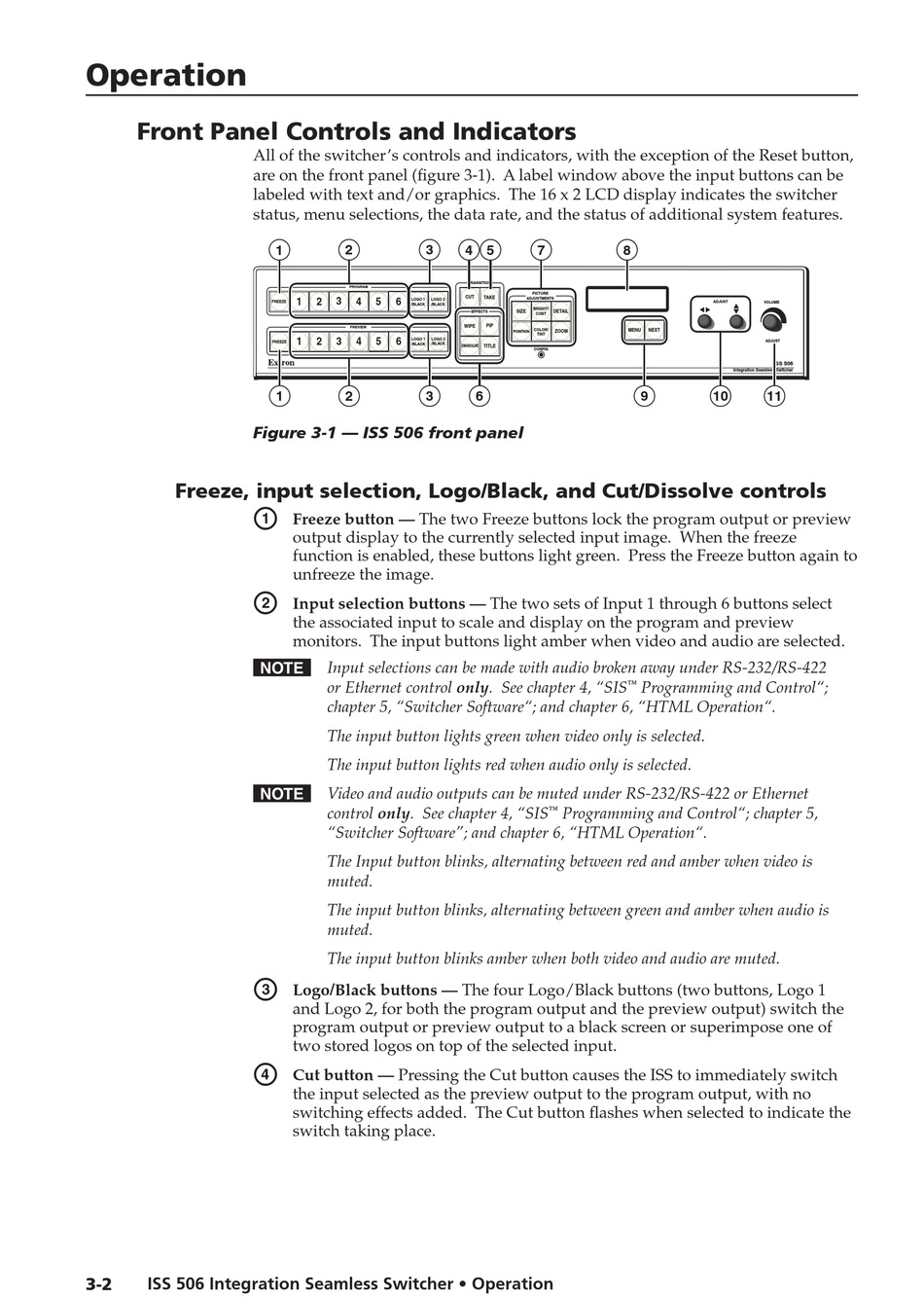

Figure 3-1 — ISS 506 front panel

Freeze, input selection, Logo/Black, and Cut/Dissolve controls

a
b
N Input selections can be made with audio broken away under RS-232/RS-422
N Video and audio outputs can be muted under RS-232/RS-422 or Ethernet
c
d
3-2 ISS 506 Integration Seamless Switcher • Operation
1 2 3
PROGRAM
3
1 2 4 5 6
LOGO 1 LOGO 2
FREEZE
/BLACK /BLACK
PREVIEW
1 2 3 4 5 6
LOGO 1 LOGO 2
FREEZE
/BLACK /BLACK
1 2 3
Freeze button — The two Freeze buttons lock the program output or preview
output display to the currently selected input image. When the freeze
function is enabled, these buttons light green. Press the Freeze button again to
unfreeze the image.
Input selection buttons — The two sets of Input 1 through 6 buttons select
the associated input to scale and display on the program and preview
monitors. The input buttons light amber when video and audio are selected.
or Ethernet control only. See chapter 4, "SIS
chapter 5, "Switcher Software"; and chapter 6, "HTML Operation".
The input button lights green when video only is selected.
The input button lights red when audio only is selected.
control only. See chapter 4, "SIS
"Switcher Software"; and chapter 6, "HTML Operation".
The Input button blinks, alternating between red and amber when video is
muted.
The input button blinks, alternating between green and amber when audio is
muted.
The input button blinks amber when both video and audio are muted.
Logo/Black buttons — The four Logo/Black buttons (two buttons, Logo 1
and Logo 2, for both the program output and the preview output) switch the
program output or preview output to a black screen or superimpose one of
two stored logos on top of the selected input.
Cut button — Pressing the Cut button causes the ISS to immediately switch
the input selected as the preview output to the program output, with no
switching effects added. The Cut button flashes when selected to indicate the
switch taking place.
4 5 7 8
TRANSITION
CUT
TAKE
ADJUSTMENTS
BRIGHT/
SIZE DETAIL
EFFECTS
CONT
WIPE PIP
COLOR/ MENU
ZOOM
POSITION
TINT
DISSOLVE TITLE
CONFIG
6 9
Programming and Control";
™
Programming and Control"; chapter 5,
™
ADJUST
VOLUME
NEXT
ADJUST
ISS 506
Integration Seamless Switcher
10 11
