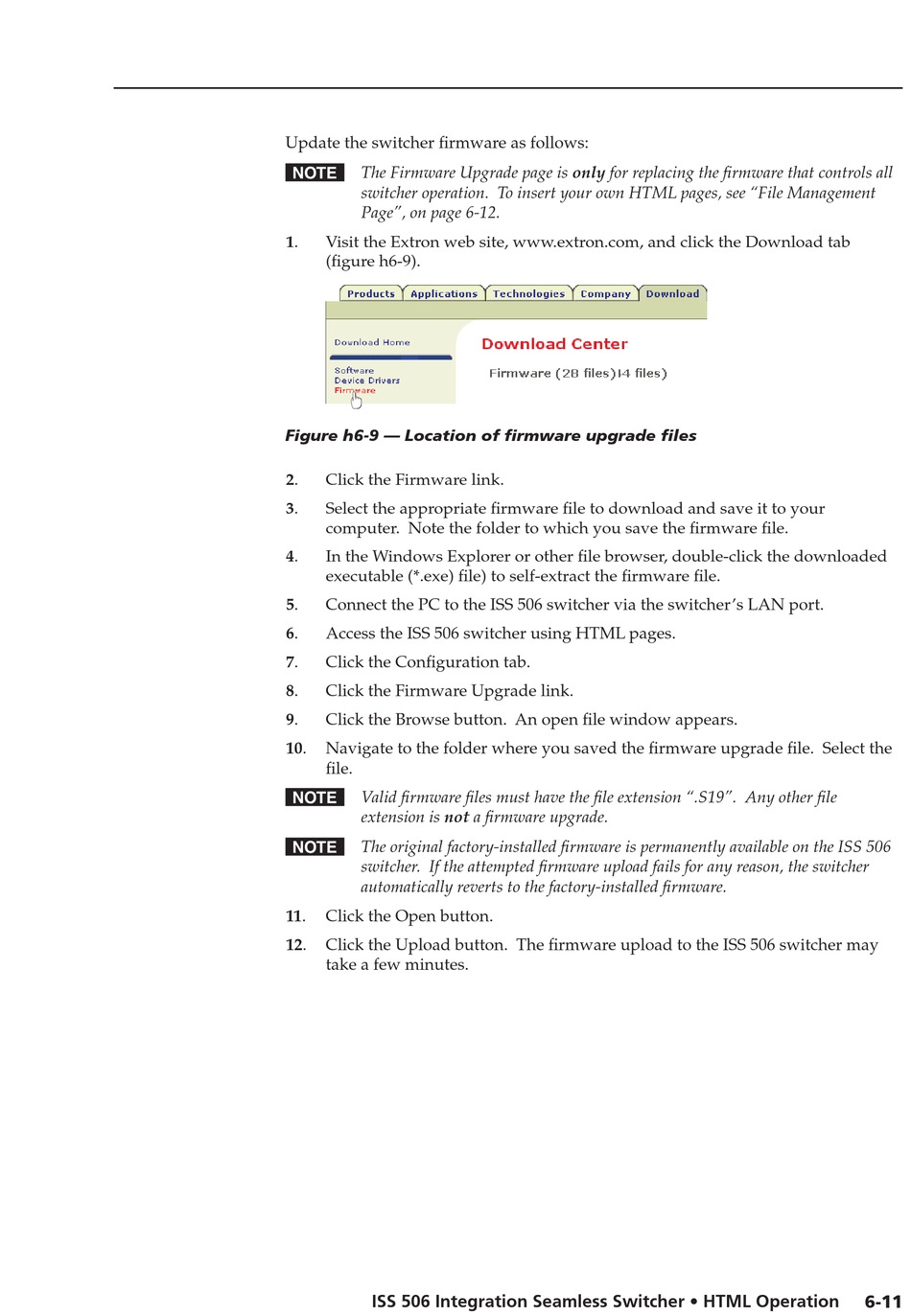

Extron electronics ISS 506 User Manual page 147

Update the switcher firmware as follows:
N The Firmware Upgrade page is only for replacing the firmware that controls all
switcher operation. To insert your own HTML pages, see "File Management
Page", on page 6-12.
1. Visit the Extron web site, www.extron.com, and click the Download tab
(figure h6-9).
Figure h6-9 — Location of firmware upgrade files
Click the Firmware link.
2.
3. Select the appropriate firmware file to download and save it to your
computer. Note the folder to which you save the firmware file.
4. In the Windows Explorer or other file browser, double-click the downloaded
executable (*.exe) file) to self-extract the firmware file.
5. Connect the PC to the ISS 506 switcher via the switcher's LAN port.
6. Access the ISS 506 switcher using HTML pages.
7. Click the Configuration tab.
8. Click the Firmware Upgrade link.
9. Click the Browse button. An open file window appears.
10. Navigate to the folder where you saved the firmware upgrade file. Select the
file.
N Valid firmware files must have the file extension ".S19". Any other file
extension is not a firmware upgrade.
N The original factory-installed firmware is permanently available on the ISS 506
switcher. If the attempted firmware upload fails for any reason, the switcher
automatically reverts to the factory-installed firmware.
11. Click the Open button.
12. Click the Upload button. The firmware upload to the ISS 506 switcher may
take a few minutes.
