Example network cabling topologies with Active-Passive

Two simple network cabling topologies using Active-Passive in high availability environments are
shown in Figure 26 (page

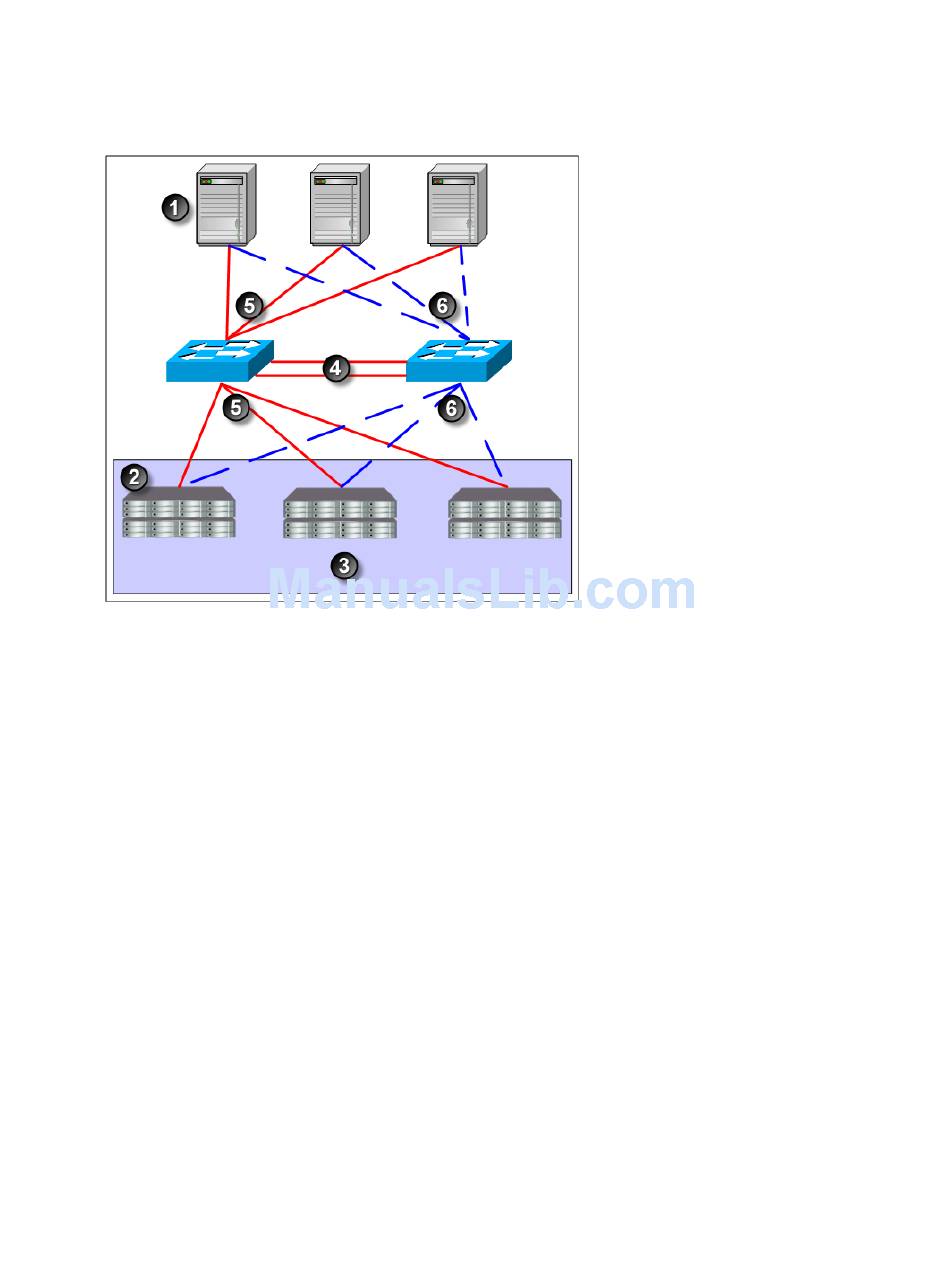

Figure 26 Active-Passive in a two-switch topology with server failover
1. Servers
2. HP LeftHand Storage systems
3. Storage cluster
4. GigE trunk
5. Active path
6. Passive path
The two-switch scenario in is a basic, yet effective, method for ensuring high availability. If either
switch fails, or a cable or NIC on one of the storage systems fails, the Active-Passive bond causes
the secondary connection to become active and take over.
56 Managing the network
56).
