Waste Toner Bottle Holder Removal; Developer Drive Assembly Removal - Lexmark X500n Service Manual

7100-XXX

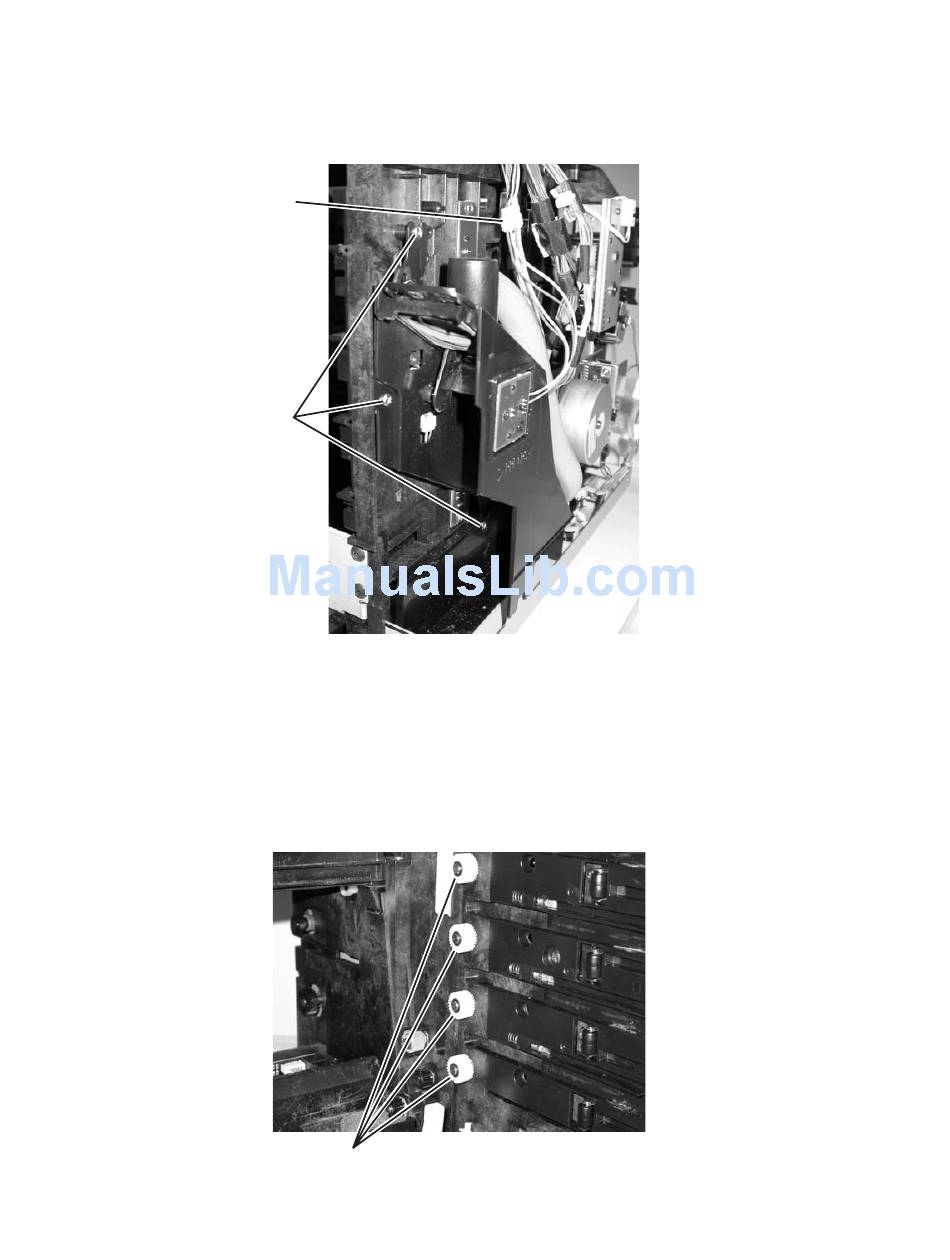

Waste toner bottle holder removal

1. Remove the right cover. See
2. Disconnect the waste toner bottle holder connector (A).
3. Remove three screws (B) from the waste toner bottle holder. The bottom screw is longer than the other
screws.
4. Remove the waste toner bottle holder from the MFP.

Developer drive assembly removal

1. Remove the main motor assembly. See
2. Remove the waste toner bottle holder. See
3. Remove four clips and the developer drive gears (A) from the inside of the MFP.
4-22
Service Manual
"Right cover removal" on page
A
B
"Main motor assembly removal" on page
"Waste toner bottle holder removal" on page
A
4-13.
4-26.
4-22.
