Erase Lamp Removal - Lexmark X500n Service Manual

7100-XXX

Erase lamp removal

1. Remove all the toner cartridges.
2. Remove the photodeveloper cartridge. See
3. Remove the transfer belt unit. See

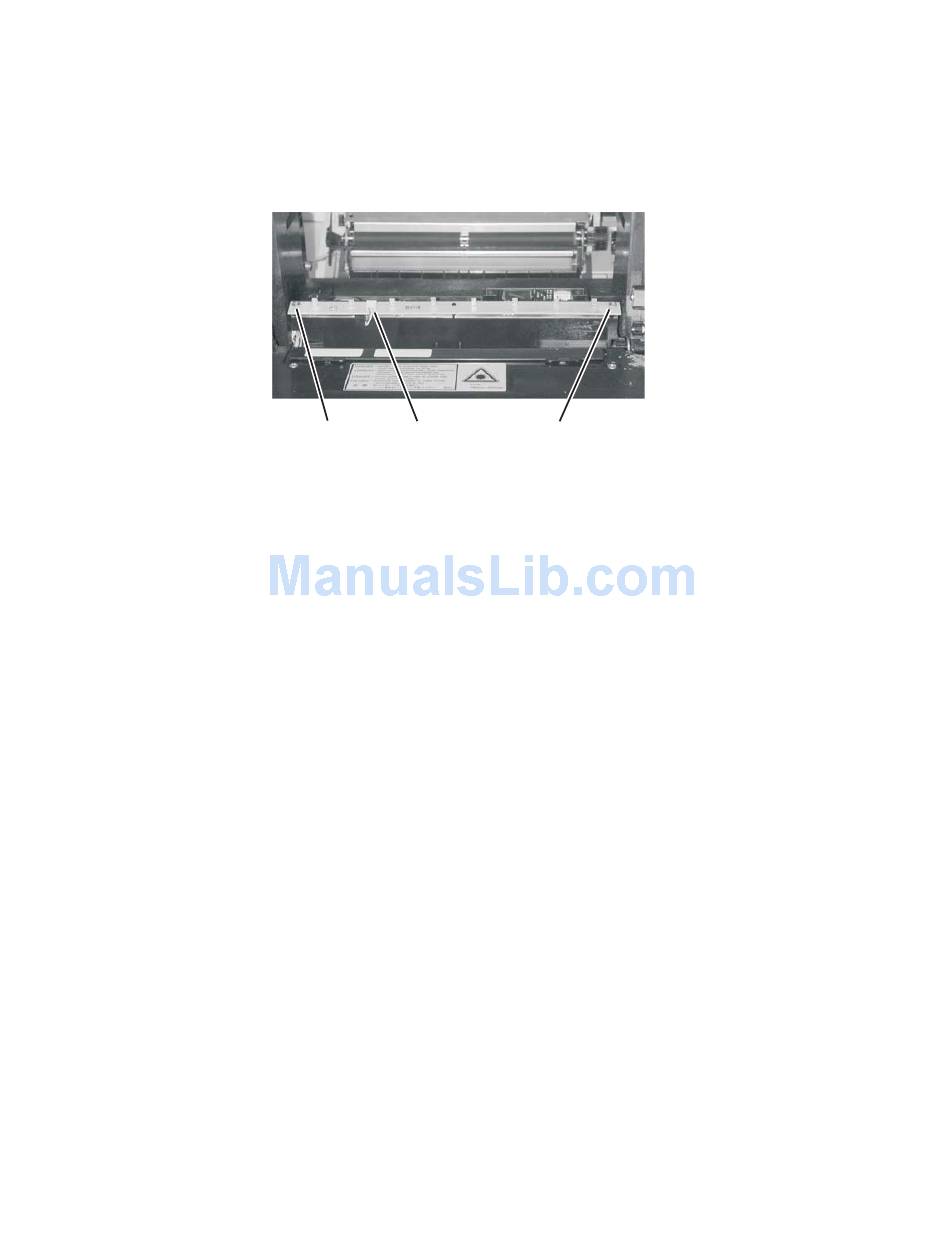

4. Remove the two screws (A).
5. Disconnect the erase lamp cable (B).
6. Remove the erase lamp.
4-20
Service Manual
"Photodeveloper cartridge removal" on page
"Transfer belt unit removal" on page
A B
4-5.
A
4-8.
