Mfp Removals; Cleaning Roller Cover Removal; Transfer Belt Cleaning Roller Removal - Lexmark X500n Service Manual

7100-XXX

MFP removals

There are FRU/CRUs and supply items that will need to be removed prior to some of the removal
procedures. The removal procedure will specify when the part must be removed.

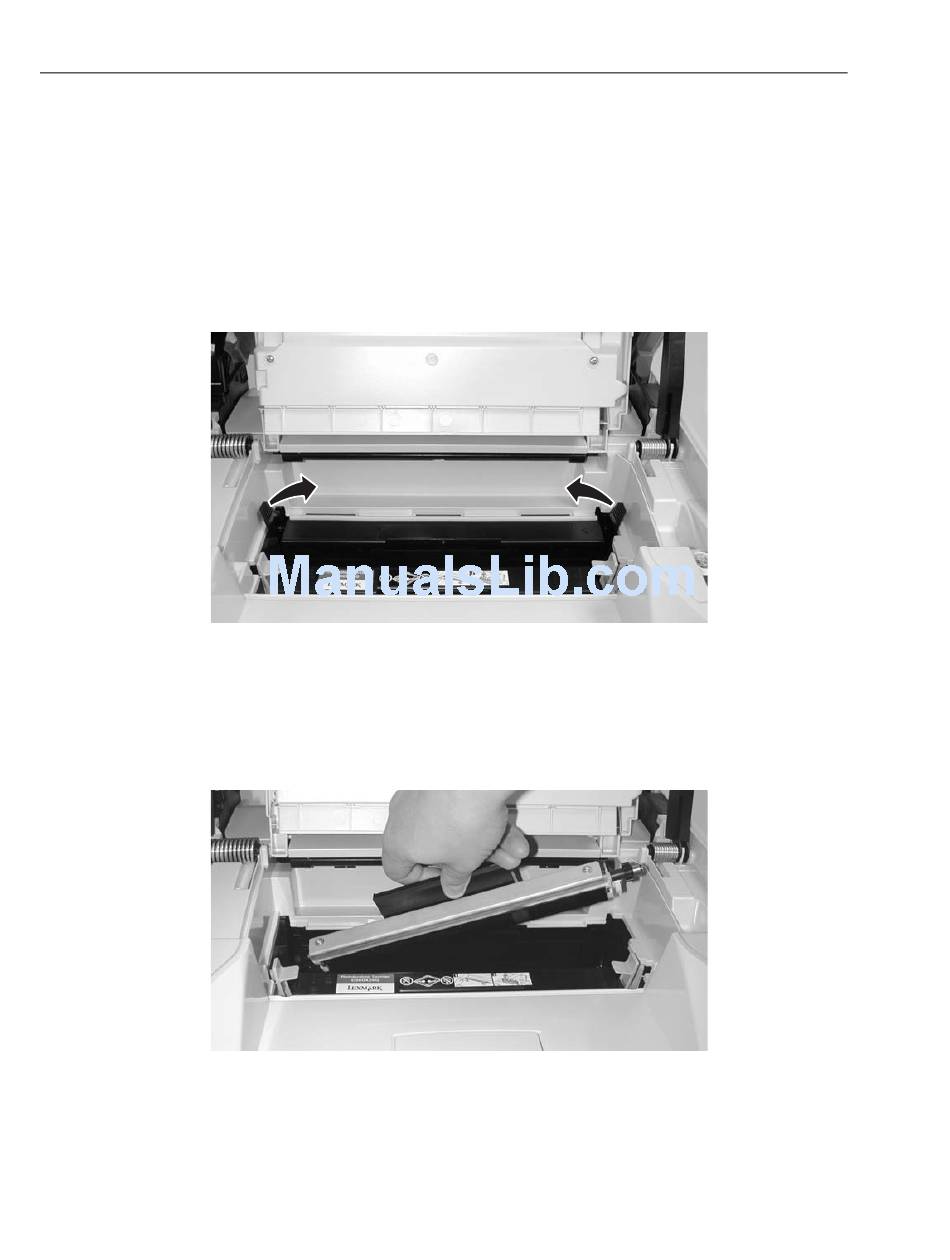

Cleaning roller cover removal

1. Raise the scanner unit.
2. Open the top cover.
3. Depress the tabs, and remove the cleaning roller cover.

Transfer belt cleaning roller removal

1. Remove the cleaning roller cover. See
2. Lift and remove the transfer belt cleaning roller.
4-4
Service Manual
"Cleaning roller cover removal" on page 4-4.
