7100-XXX

Left front cover removal

1. Remove the top cover assembly. See
"Top cover assembly removal" on page
4-10.

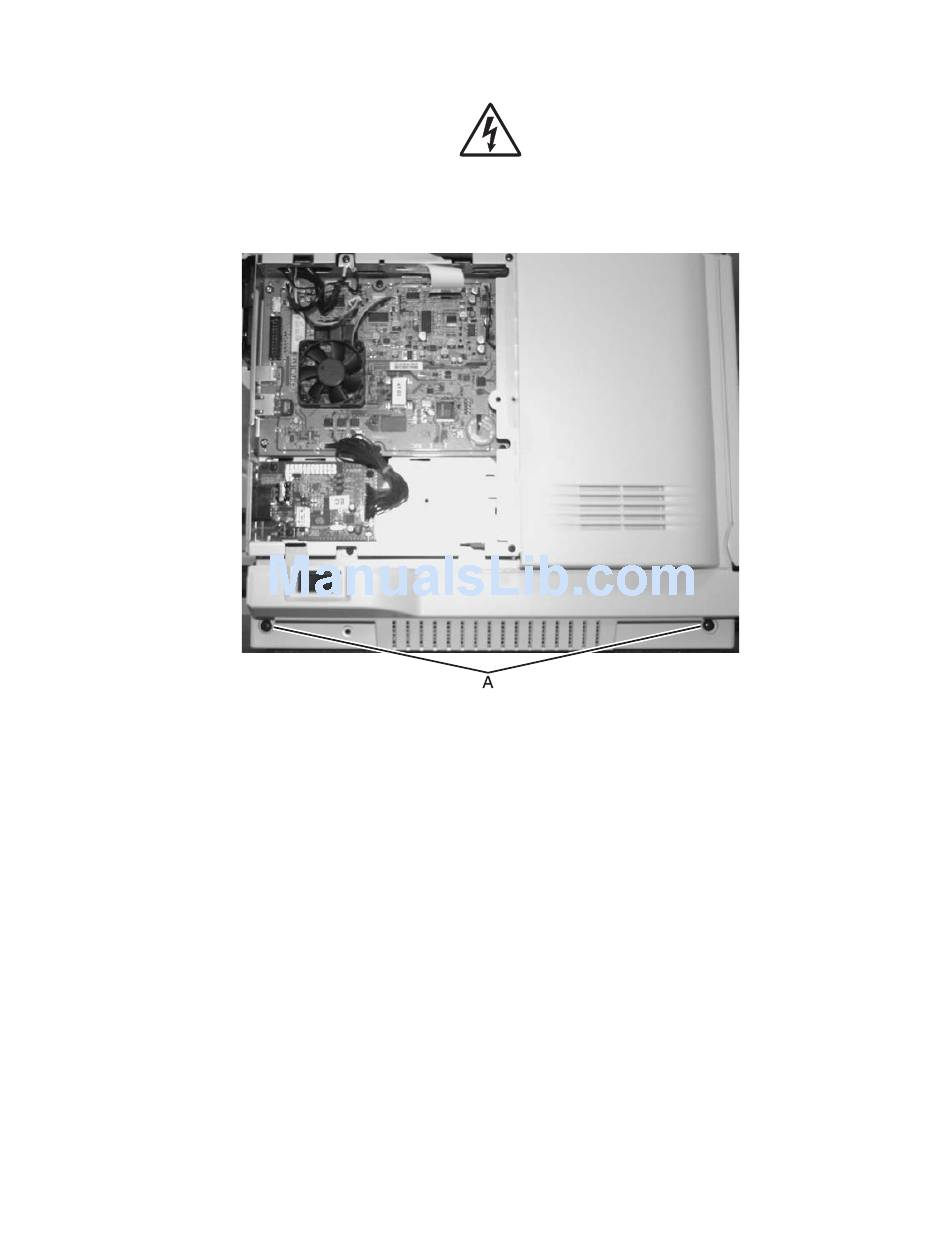

2. Remove two screws (A) from the bottom of the left front cover.
3. Remove the left cover from the MFP.
4-15
Repair information
