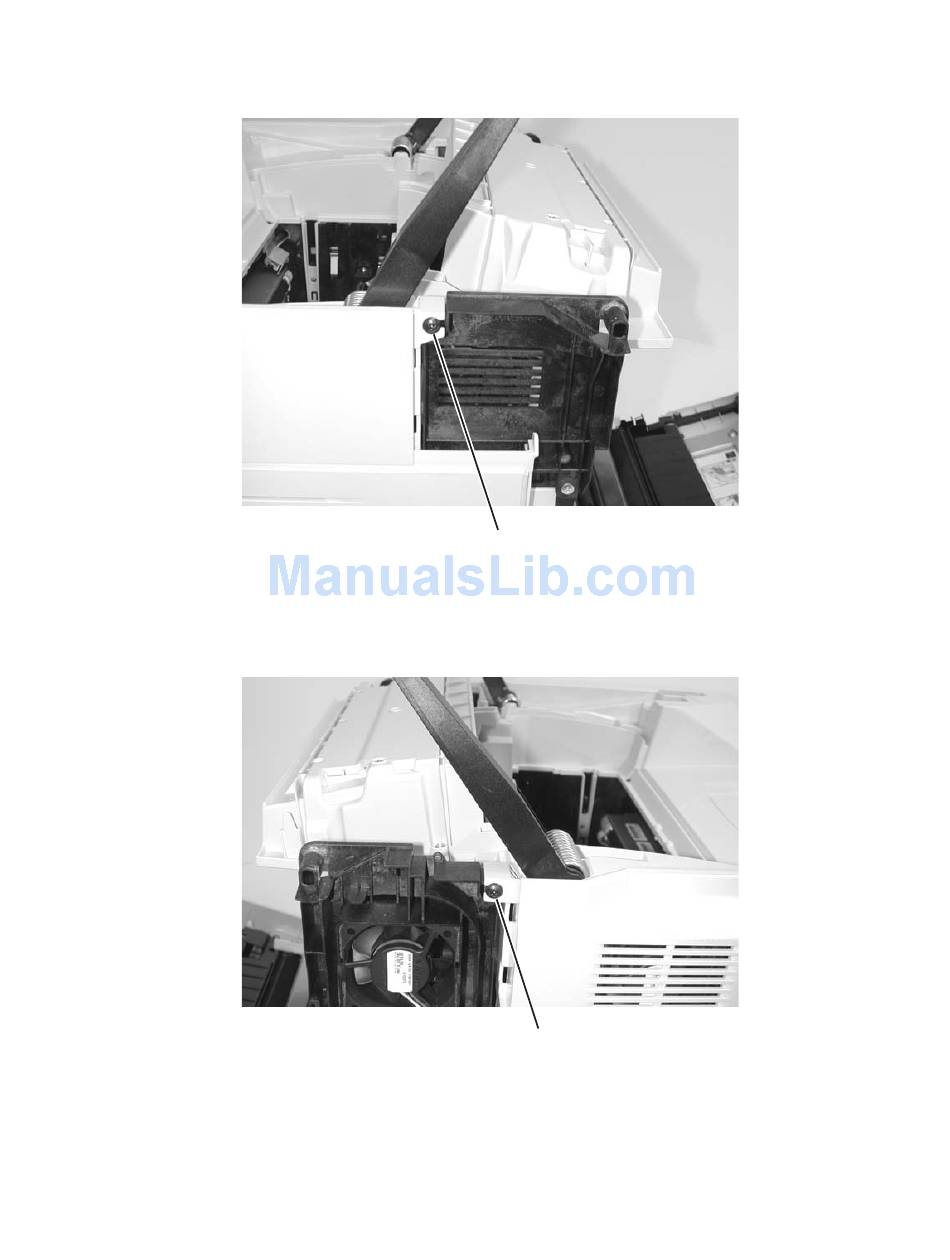

9. Remove the screw (B) which secures the top cover to the MFP frame.
B
10. Remove the upper left rear cover. See "Upper left rear cover removal" on page 4-17.
11. Remove the screw (C) which secures the top cover to the MFP frame.
C
12. Release the tabs on the front of the top cover assembly.
13. Lift the top cover assembly and remove.
Note: If you are replacing the top cover assembly, remove the scanner arms. They will be used on the new
top cover. See "Scanner arm removal" on page 4-52.
