Icom IC-7800 Instruction Manual page 162

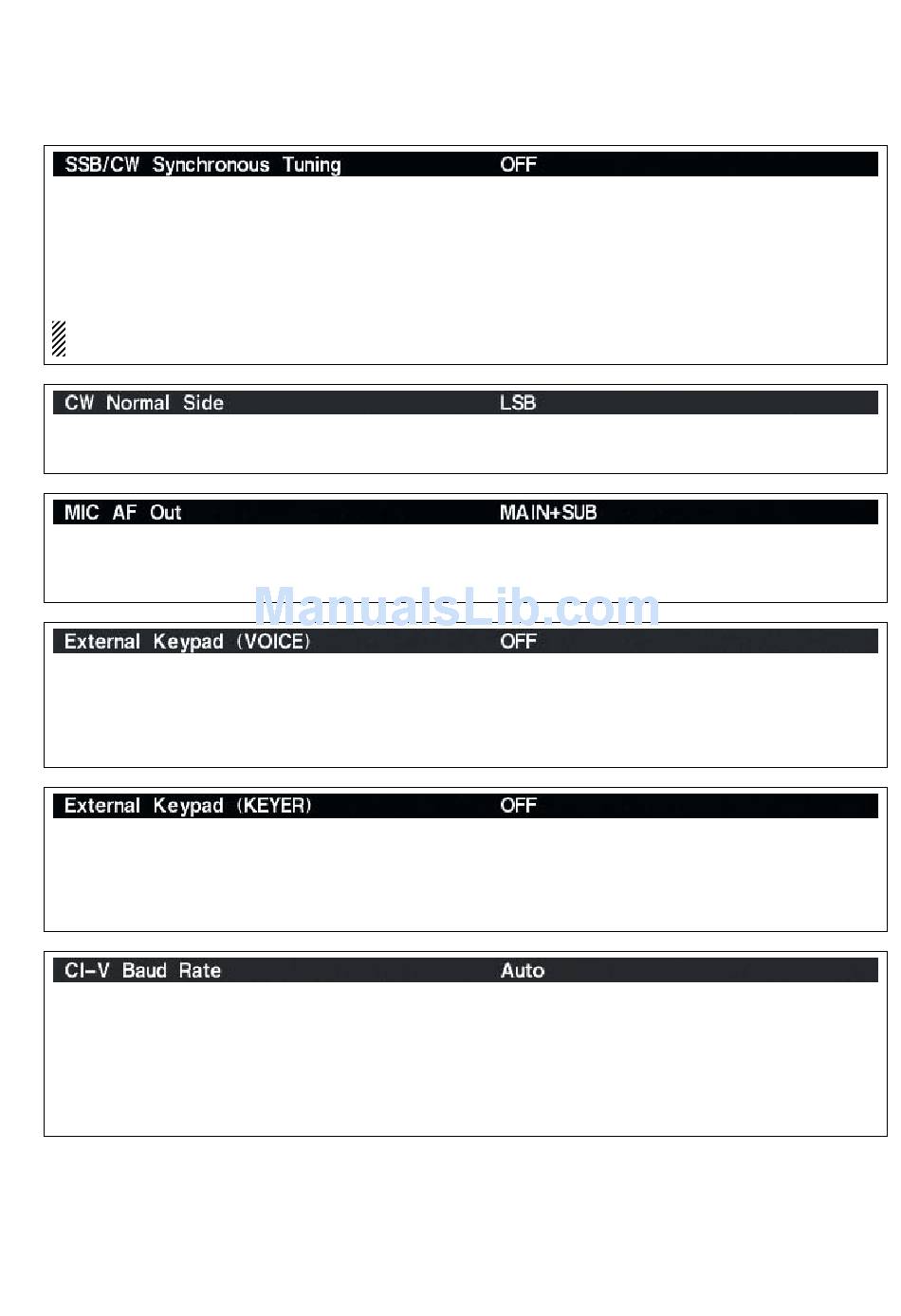

I Miscellaneous (Others) set mode
Selects the displayed frequency shift function from
ON and OFF. (default: OFF)
When this function is activated, the receiving signal
can be kept to receive even when the operating mode
is changed between SSB and CW.
The frequency shifting value may differ according
to the CW pitch setting.
Selects the side band used to receive CW in CW nor-
mal mode. (default: LSB)
Selects the desired band(s) for audio output from
[MIC] connector (pin 8) from MAIN+SUB and SUB.
(default: MAIN+SUB)
Sets the external keypad for voice memory transmis-
sion capability ON and OFF.
See page 2-6 for the equivalent circuit of an external
keypad and connection.
Sets the external keypad for keyer memory transmis-
sion capability ON and OFF.
See page 2-6 for the equivalent circuit of an external
keypad and connection.
Sets the CI-V data transfer rate. 300, 1200, 4800,
9600, 19200 bps and "Auto" are available. (default:
Auto)
When "Auto" is selected, the baud rate is automati-
cally set according to the data rate of connected con-
troller.
(continued)
• ON : The displayed frequency shifts when the op-
erating mode is changed between SSB and
CW.
• OFF : The displayed frequency does not shift.
• MAIN+SUB : Outputs both main and sub bands
audio.
• SUB : Outputs sub band audio only.
• ON : Pushing one of external keypad switches,
transmits the desired voice memory contents
during a phone mode operation.
• OFF : External keypad does not function. (default)
• ON : Pushing one of external keypad switches,
transmits the desired keyer memory contents
during CW mode operation.
• OFF : External keypad does not function. (default)
12-19
12
SET MODE
