ANTENNA TUNER OPERATION

I Antenna connection and selection

[ANT]
• Antenna selection mode: "Auto"
3.5/7 MHz 21/28 MHz
bands bands
ANT 1
ANT 2
• Antenna selection mode: "Manual"
[ANT]
• Antenna selection mode: "OFF"
50 MHz RX
bands only
ANT 4
ANT 3

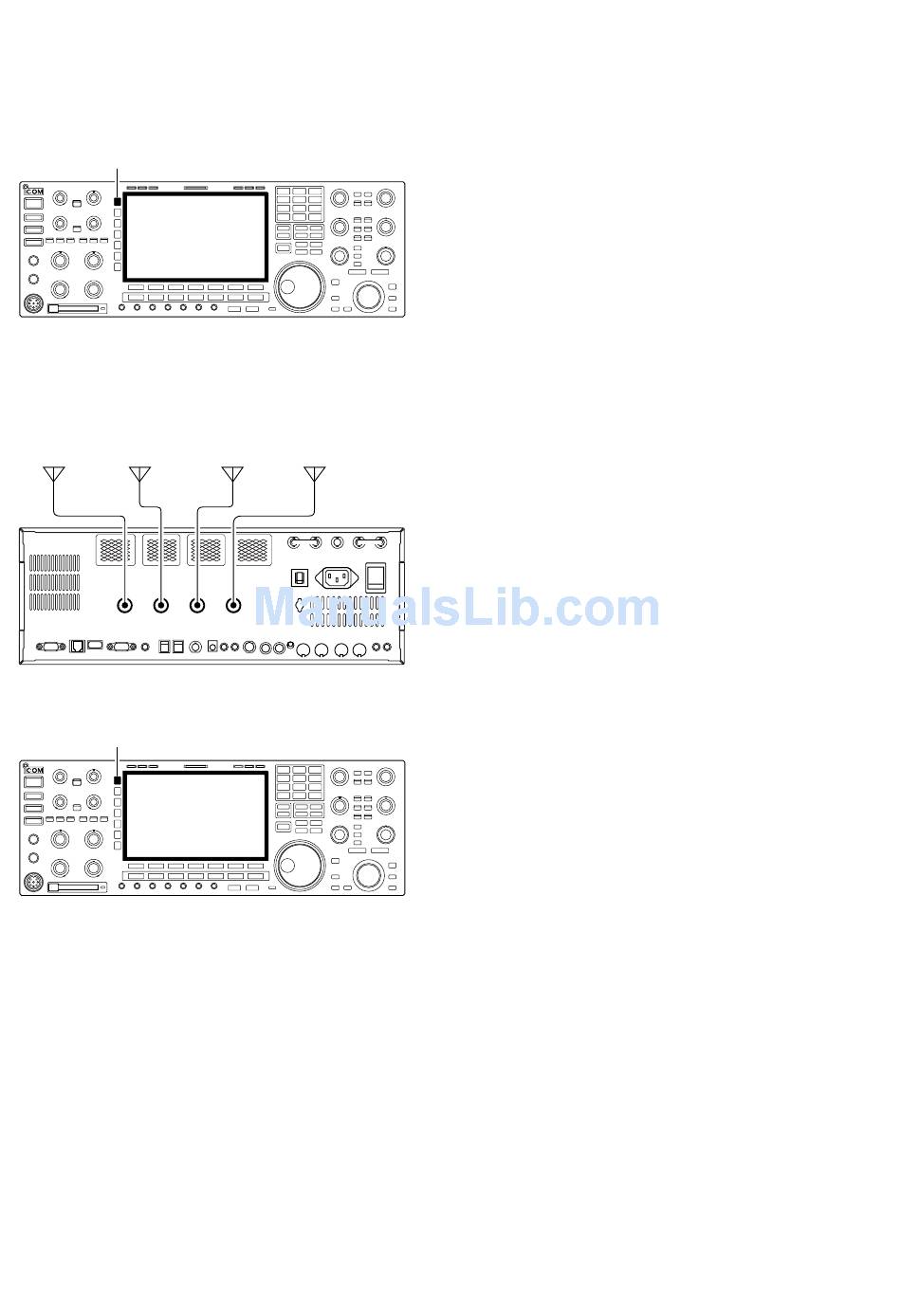

The IC-7800 has 4 antenna connectors for the
HF/50 MHz bands, [ANT1], [ANT2], [ANT3], and
[ANT4].
For each operating band the IC-7800 covers, there is a
band memory which can memorize a selected an-
tenna. When you change the operating frequency be-
yond a band, the previously used antenna is automat-
ically selected (see below) for the new band. This
function allows automatic switching of 4 separate an-
tennas for HF and 50 MHz bands operation.
After an antenna has been selected for use (by push-
ing [ANT]), the antenna is automatically selected
whenever that band is used.
[EXAMPLE]: a 3.5/7 MHz antenna is connected to
[ANT1], a 21/28 MHz antenna is connected to [ANT2],
a 50 MHz antenna is connected to [ANT3]. When the
antenna selector function is set to "Auto," an antenna
is automatically selected when changing bands.
[ANT4] can be used for receive only.
When "Manual" is selected, you can use the all an-
tenna connectors, [ANT1] [ANT2], [ANT3] and [ANT4],
however, band memory does not function. In this case
you must select an antenna manually.
In this case, only [ANT1] antenna connector can be
used. [ANT] switch does not function.
