2.9 Locking the System

Pedestal systems are protected by a key lock located on the front. Turning the key to
the left locks the front door. When the front door is locked, the top cover and side
panel latch cannot be accessed.

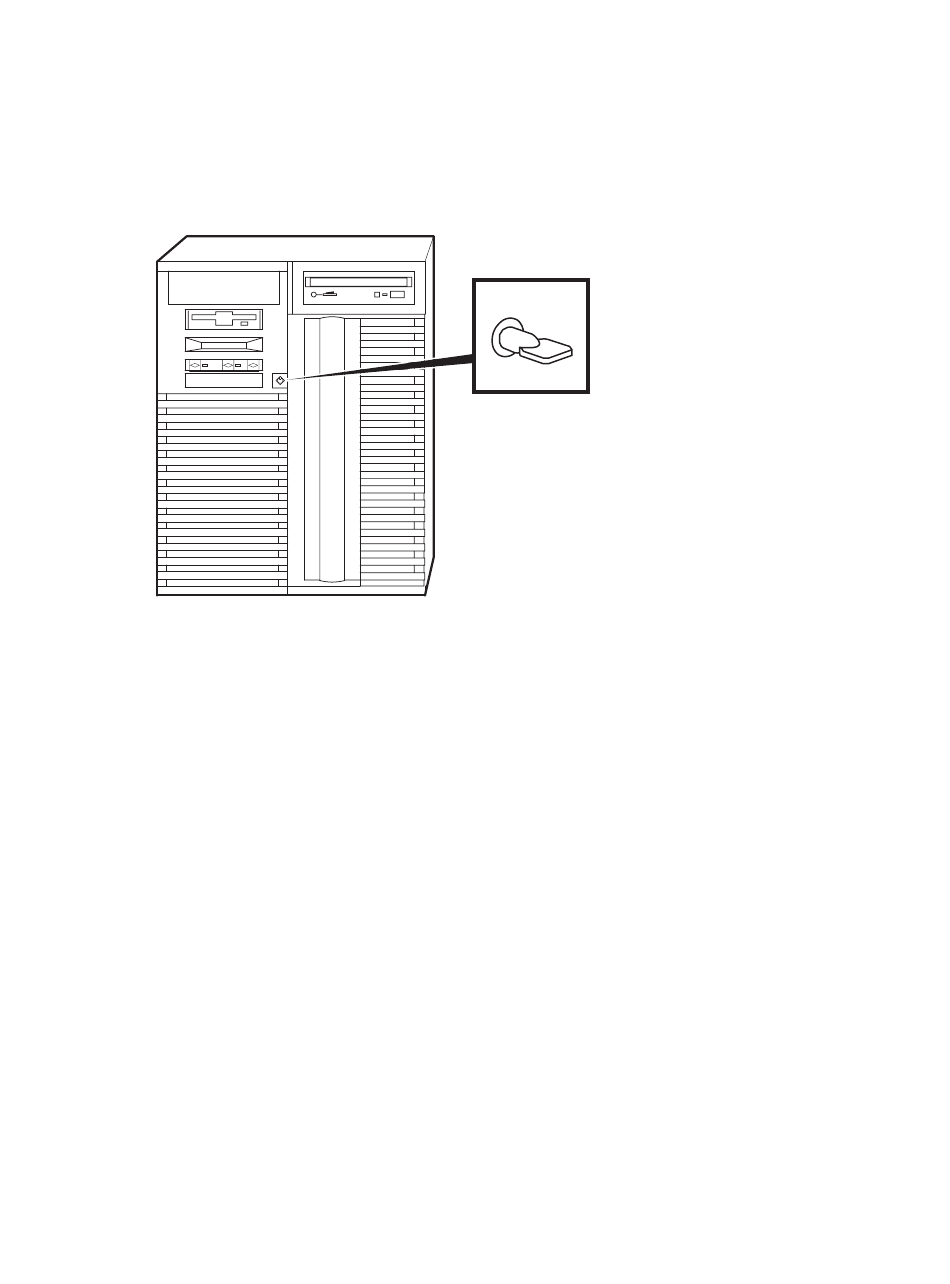

Figure 2–6 System Lock and Key
IP00192
Turning the key to the right unlocks the system unit and allows you access to install
or remove system components. When the system unit is unlocked, push the lock to
open the door. Figure 2–6 shows the system lock in the unlocked position.
Additional security is provided by a latching loop on the rear panel of the system
unit that allows you to attach the system unit to a post or other fixed object.
2-8 User's Guide
