NOTE: Before removing the CPU card, you must remove the memory card
adjacent to it. See Section 7.4 for the memory card removal procedure.
3. Unscrew the module handle that secures the outer edge of the CPU module (two
retainer screws).
4. Release the card by extending the handle clip on each end outward.
5. Holding the outer edge of the card, gently pull it out of the slot.
Installation
1. Slide the CPU card into the system board slot.
2. Visually align the CPU card with the system board white connector and press
the card into the connector. Check to see that the module handle clips are
aligned with the slot notches.
3. Press inward on the handle clip on each end of the card until they catch in a
closed position.
4. Secure the card by tightening the two captive retainer screws.
5. Replace the memory card.
Verification - DIGITAL UNIX and OpenVMS Systems
•
Issue the show cpu command to display the status of the new module.
Verification - Windows NT Systems
1. Start AlphaBIOS Setup, select Display System Configuration, and press Enter.
2. Using the arrow keys, select MC Bus Configuration to display the status of the
new module.

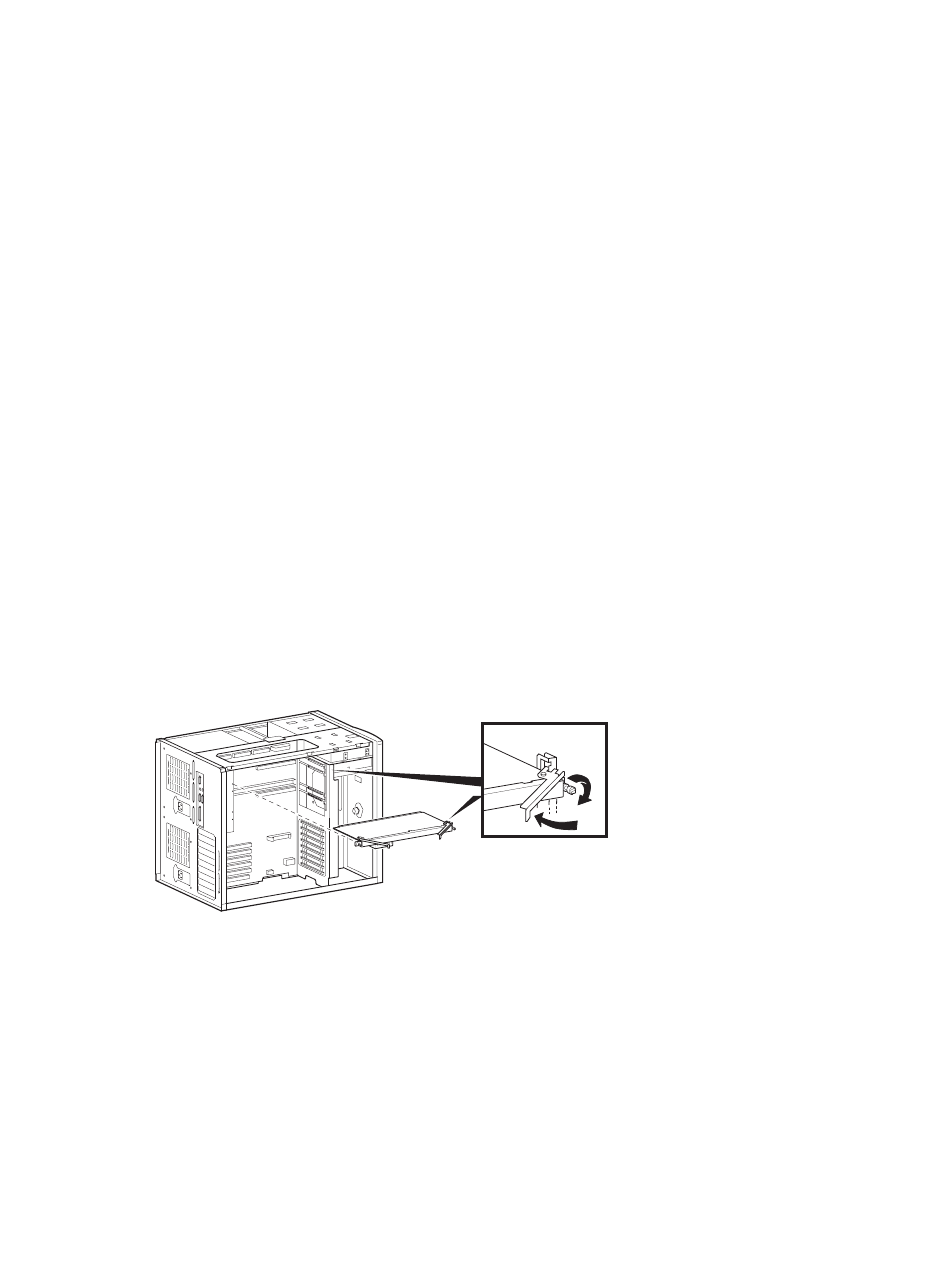

Figure 7–5 CPU Module Installation
IP00215
Installing Components
7-9
