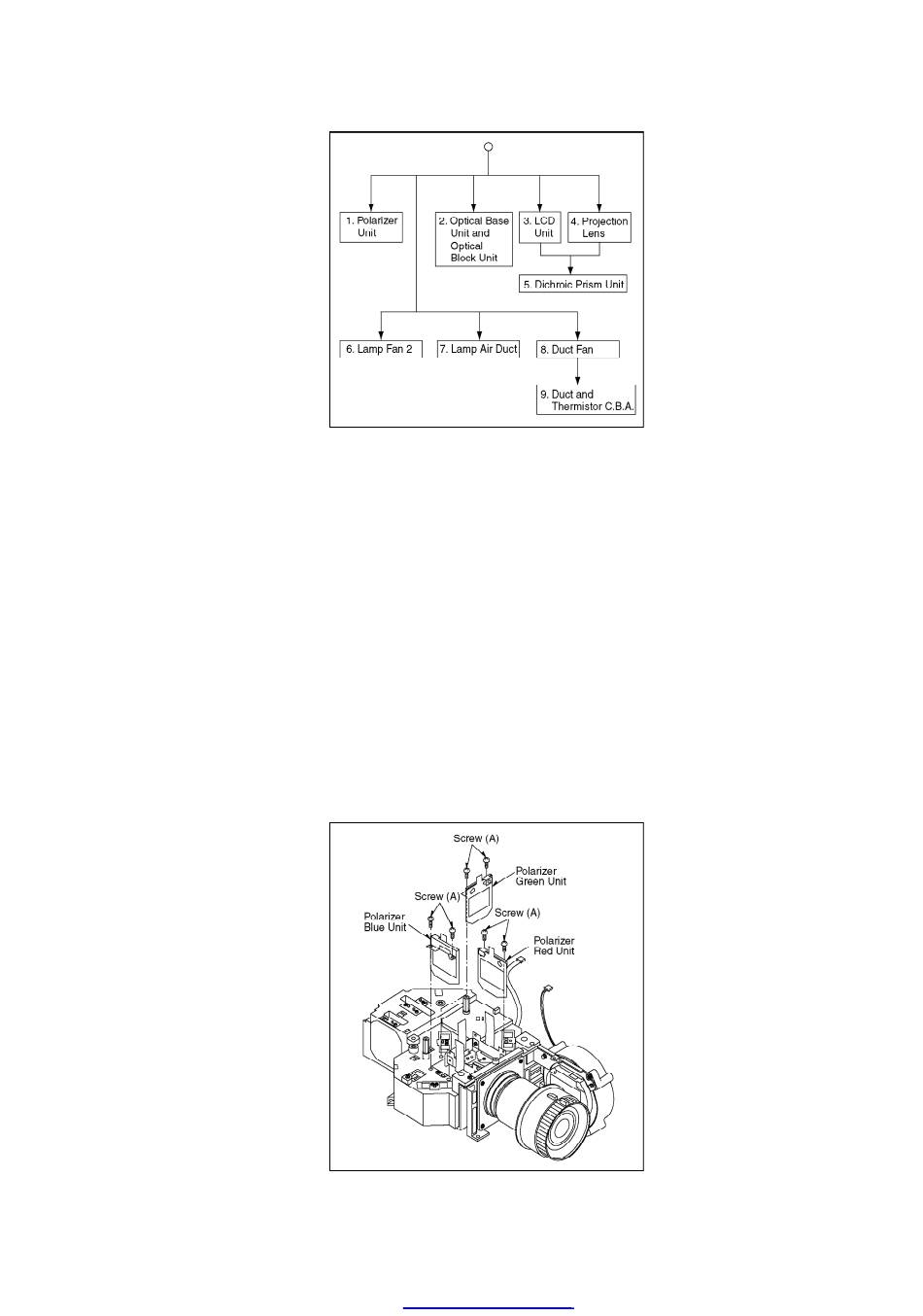

4.4. DISASSEMBLY METHOD OF OPTICAL UNIT
4.4.1. Removal of the Polarizer Units
1. Remove 6 screws (A) to remove the Polarizer Red Unit, the
Polarizer Green unit and the Polarizer Blue Unit as shown in Fig. 4-
4-1.
Note:
1. Use extreme care not to damage the Polarizer Units, when
servicing.
2. Make sure that no dust gets on the Polarizer Units. Clean the
Polarizer Units with cleaning paper moistened with lens cleaner if
necessary.
PDF created with pdfFactory Pro trial version
Fig. 4-4-1
27
