S P E C
F I L E

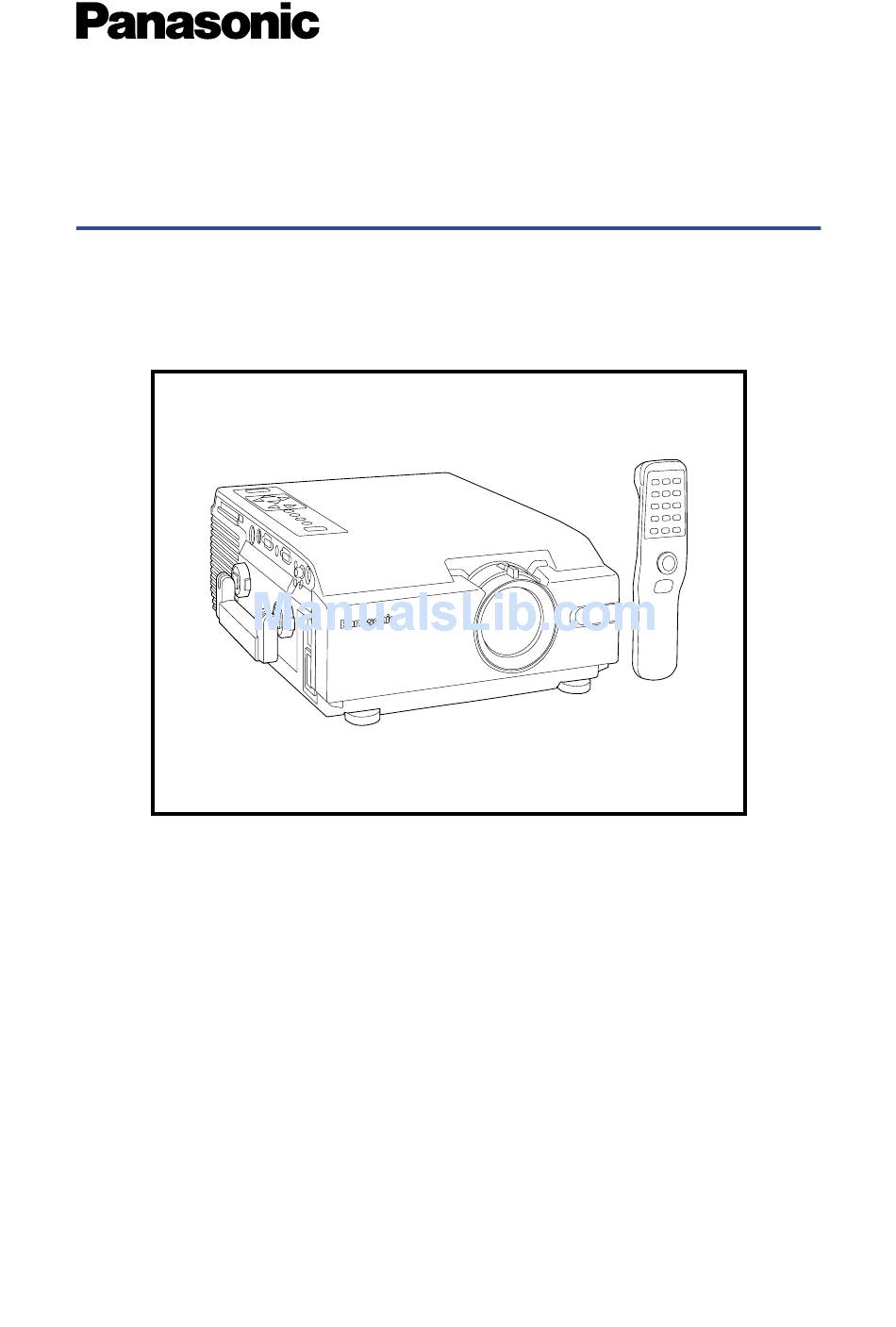

PRODUCT NO.: PT-L759X
PRODUCT NAME: Portable LCD Projector
MAJOR FEATURES
• 3100 ANSI Lumens High Brightness
• XGA (1024 x 768), Maximum UXGA (1600 x 1200) Resolution
• DVD-ready connection flexibility
• One-touch auto setup and digital keystone correction
• Wireless remote with mouse control, arrow key control and laser pointer
- 1 -
Advertisement
Related Manuals for Panasonic PT-L759X
Summary of Contents for Panasonic PT-L759X
- Page 1 S P E C F I L E PRODUCT NO.: PT-L759X PRODUCT NAME: Portable LCD Projector MAJOR FEATURES • 3100 ANSI Lumens High Brightness • XGA (1024 x 768), Maximum UXGA (1600 x 1200) Resolution • DVD-ready connection flexibility • One-touch auto setup and digital keystone correction •...
-
Page 2: Specifications
S P E C F I L E PT-L759X Portable LCD Projector Specifications Main Unit Power supply: 100 – 240 V AC, 50/60 Hz Power consumption: 370 W (during standby mode with fan stopped: Max. 20 W) Colour system: composite:... - Page 3 S P E C F I L E PT-L759X Portable LCD Projector Specifications (continued) Remote Control Unit Power supply: 3 V DC (AA-size battery x 2) Operation range: Approx. 7 m when operated from directly in front of the signal...
- Page 4 S P E C F I L E PT-L759X Portable LCD Projector Terminals 8 9 10 DVD-I VIDEO AUDIO IN RS-232C RGB OUT AUDIO IN RGB IN S-VIDEO MOUSE AUDIO OUT VIDEO IN DVI-D connector RGB input connector (D-sub 15-pin)
-
Page 5: Standard Setting-Up Positions
PC-CARD AUDIO VIDEO 166 –170 Projected image Edge of projected image Projected image unit: mm NOTE: Illustrations show the PT-L759X installed using optional celing bracket. Screen size (diagonal) 20˝ 0.8 m 4 cm 40˝ 1.3 – 1.7 m 9 cm 60˝...
