114 | DR 100s | Software Console
X-ray modality status frame
1
2
3
Ready for exposure status
1.
The status bar displays the exam type.
Modality position
2.
DAP value
3.
DR detector switch
4.
Filter status
5.
Grid status
6.
Button to enable or disable the preview of the acquired image
7.
Radiation status
8.
Power status

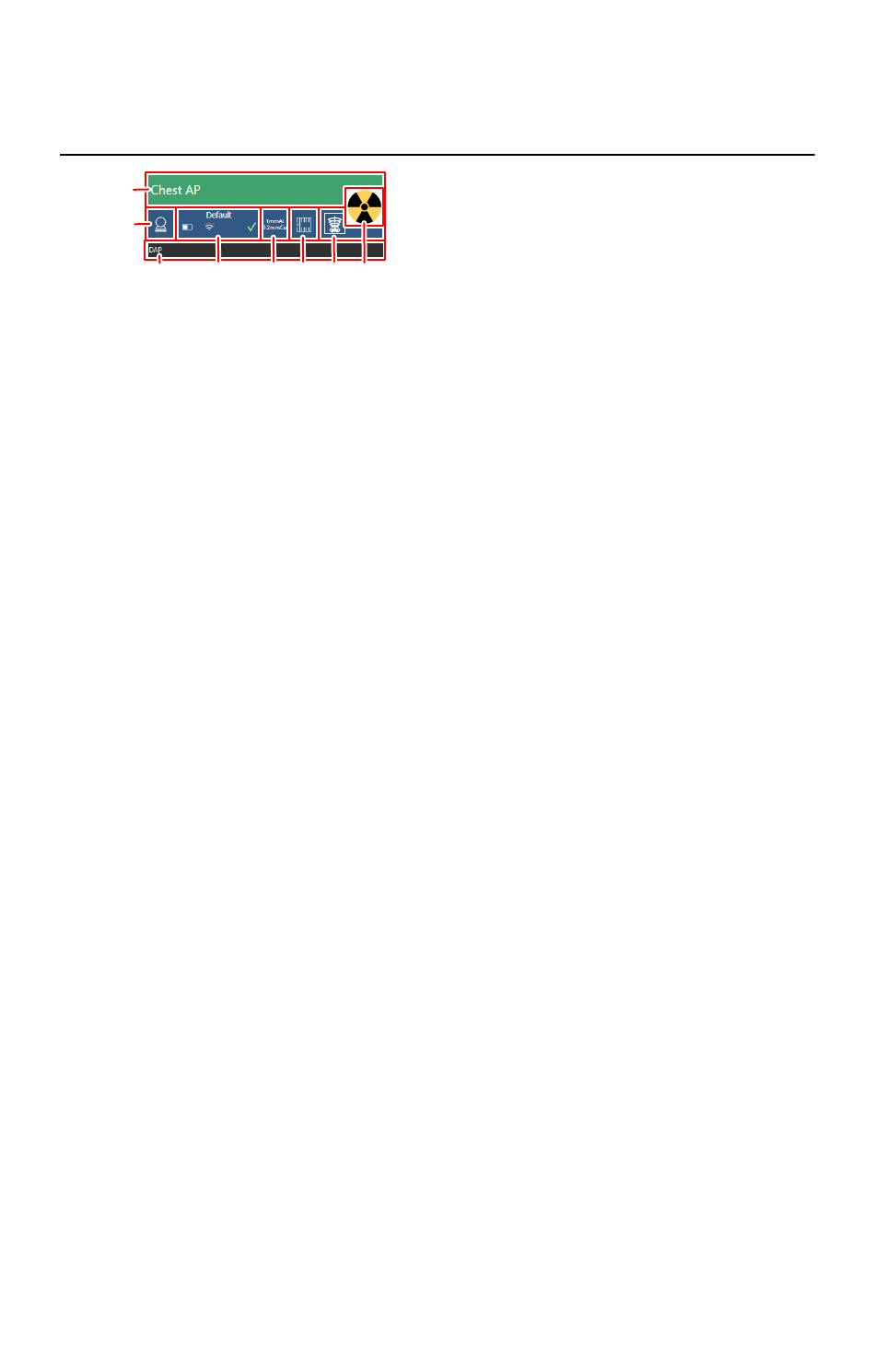

Figure 54: X-ray modality status frame
On the tube head display, the patient demographics are displayed right above
the status bar.
On the tube head display, clicking the status bar will show a list of the planned
exposures.
Topics:
•
Ready for exposure status
•
Modality Position
•
DR detector switch
•
DR Detector Status
•
Unknown status
•
Filter Status
•
Anti-scatter grid status
•
Radiation status
•
Power status
•
DAP Value
0411D EN 20220627 1040
4
5 6
7
8
