Barcode reader
The barcode reader setup includes following components :
• A battery powered barcode reader
• A charging stand connected to power outlet to store the barcode reader
and charge the battery.
Status LED
1.
The LED is flashing amber while charging.
The LED is solid green when fully charged.
Scan button.
2.
To scan a barcode, press the scan button while pointing the device to a
barcode.
Delete button.
3.
Not used.
Battery level indicators.
4.
The battery level is indicated while charging.
Battery level button.
5.
Bluetooth LED.
6.
The bluetooth LED flashes every 4 seconds when the barcode reader is
ready for operation.
The bluetooth LED flashes fast for a few seconds when it has lost
connection to the USB access point.
Bluetooth button.
7.

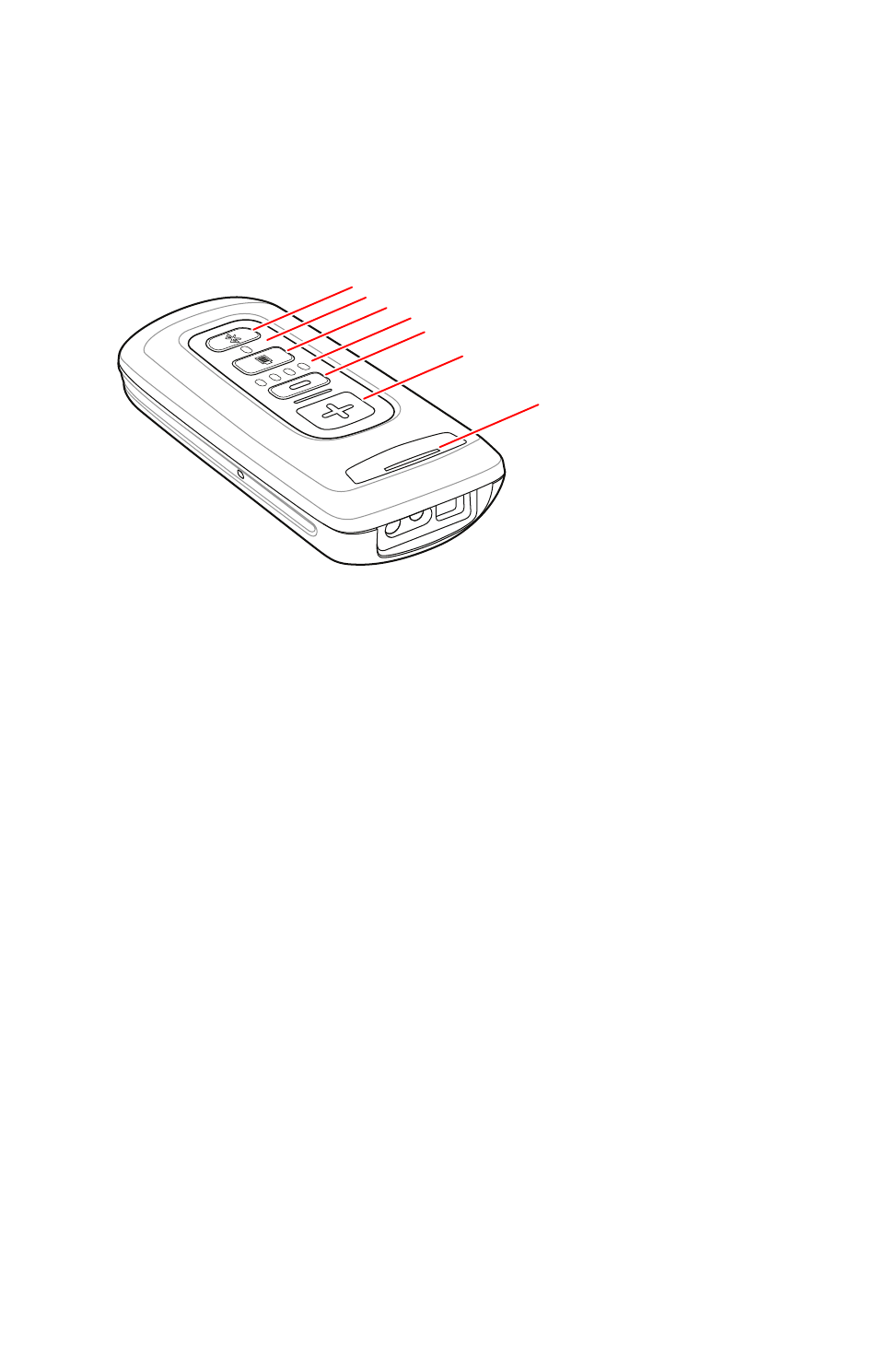

Figure 22: Operation controls of the barcode reader
For more details about operating and configuring the barcode reader, refer to
the documentation provided by the manufacturer.
Related Links
Bluetooth connection of barcode reader is broken
