User's Manual
•
Add a New Bridge: Select this option and then click Next; a different 'Network
Bridging' screen appears, allowing you to add a bridge over the unbridged
connections, by selecting their respective check boxes.
Important notes:
•
The same connections cannot be shared by two bridges.
•
A bridge cannot be bridged.
•
Bridged connections lose their IP settings.
5. Click Next; the screen 'Connection Summary' opens, corresponding to your changes.
Figure 12-55: Connection Summary - Configure Existing Bridge
6. Select the check box 'Edit the Connection' to be routed to the new connection's
configuration screen after clicking Finish.
7. Click Finish to save the settings; the new bridge is added to the network connections
list; it's configurable like any other bridge.
Version 4.4.3

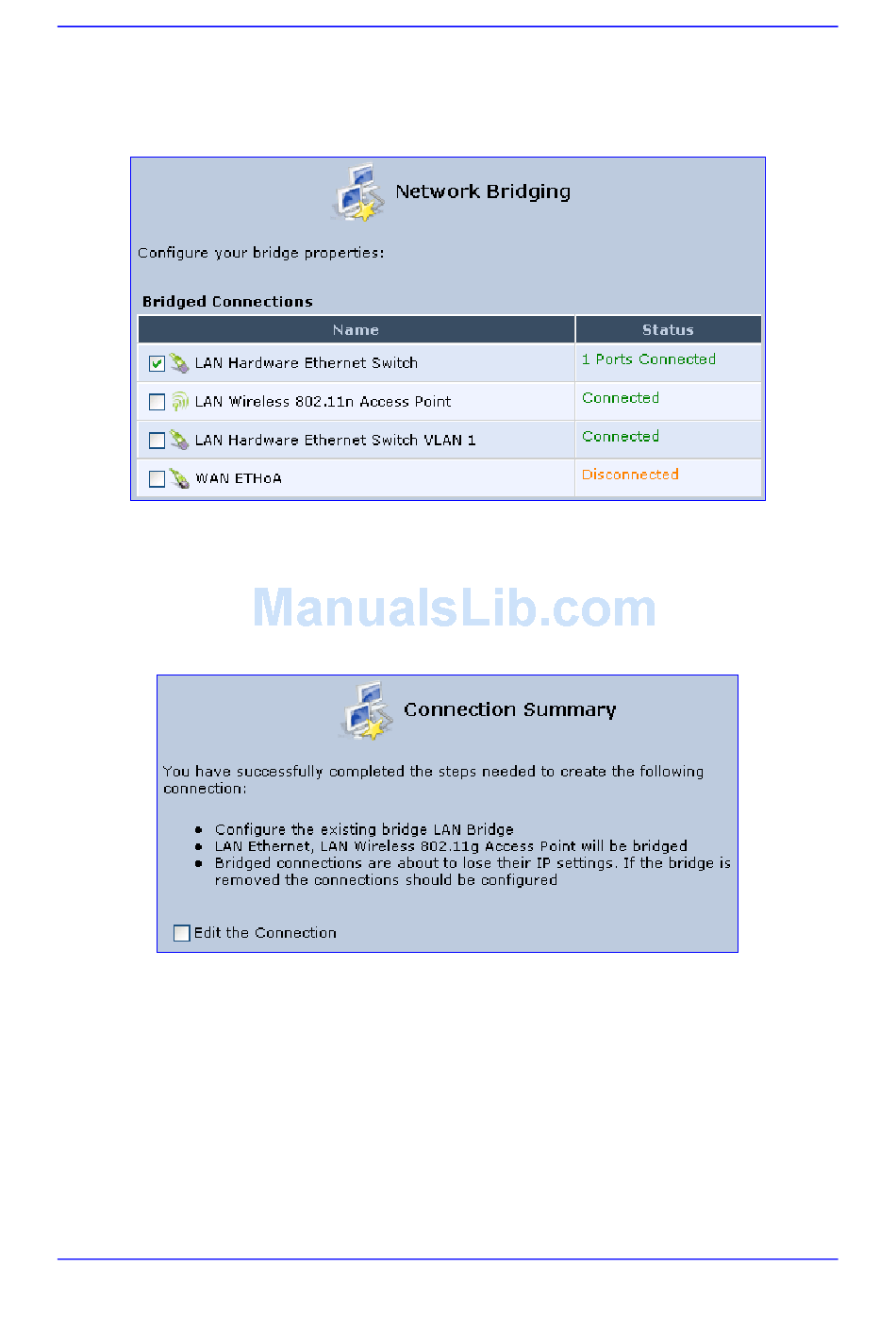

Figure 12-54: Adding New Network Bridging

171
12. Network Connections
MP-20x Multimedia Home Gateway
