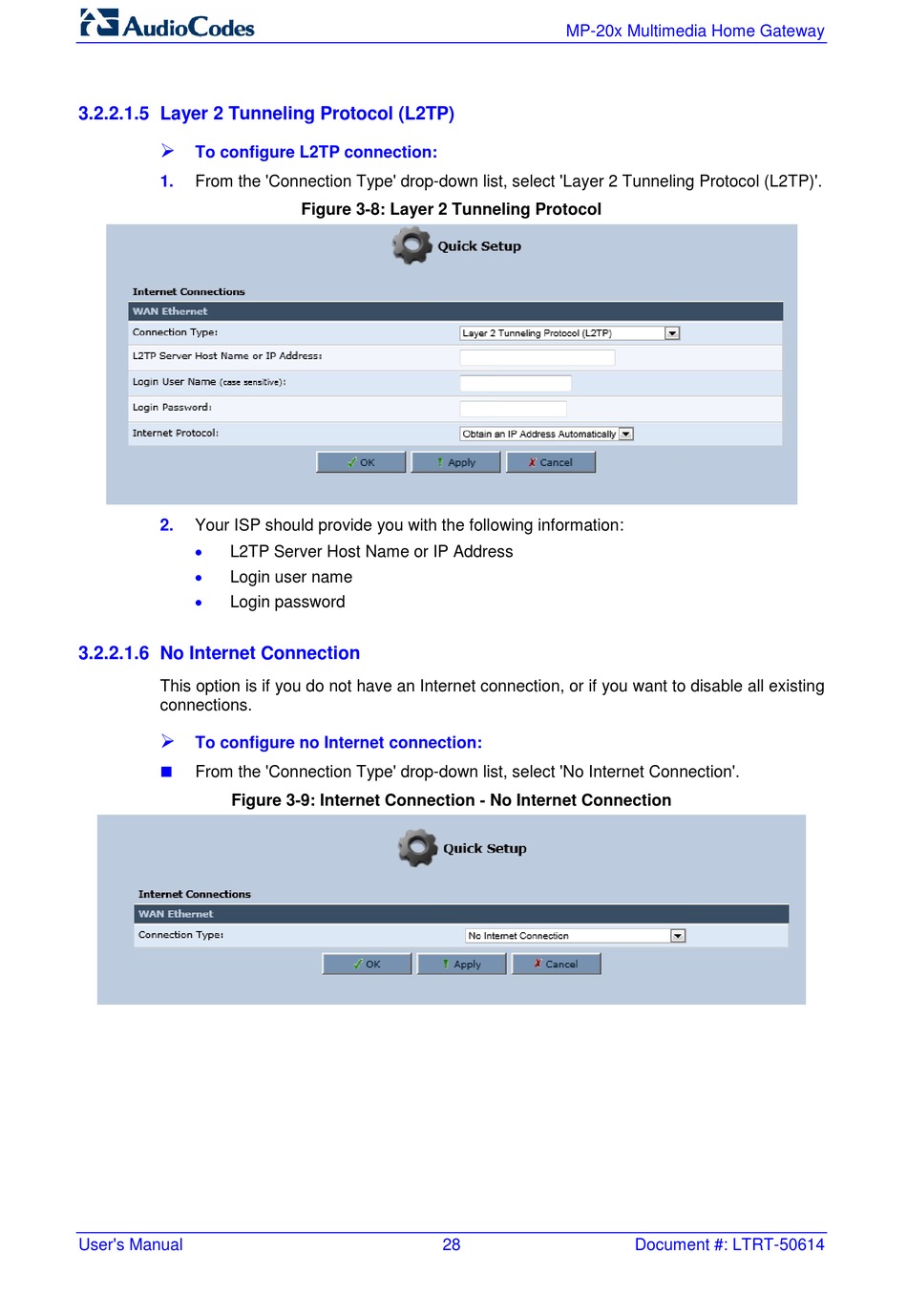

3.2.2.1.5 Layer 2 Tunneling Protocol (L2TP)

To configure L2TP connection:
1. From the 'Connection Type' drop-down list, select 'Layer 2 Tunneling Protocol (L2TP)'.
2. Your ISP should provide you with the following information:
•
L2TP Server Host Name or IP Address
•
Login user name
•
Login password
3.2.2.1.6 No Internet Connection
This option is if you do not have an Internet connection, or if you want to disable all existing
connections.

To configure no Internet connection:

From the 'Connection Type' drop-down list, select 'No Internet Connection'.

Figure 3-9: Internet Connection - No Internet Connection
