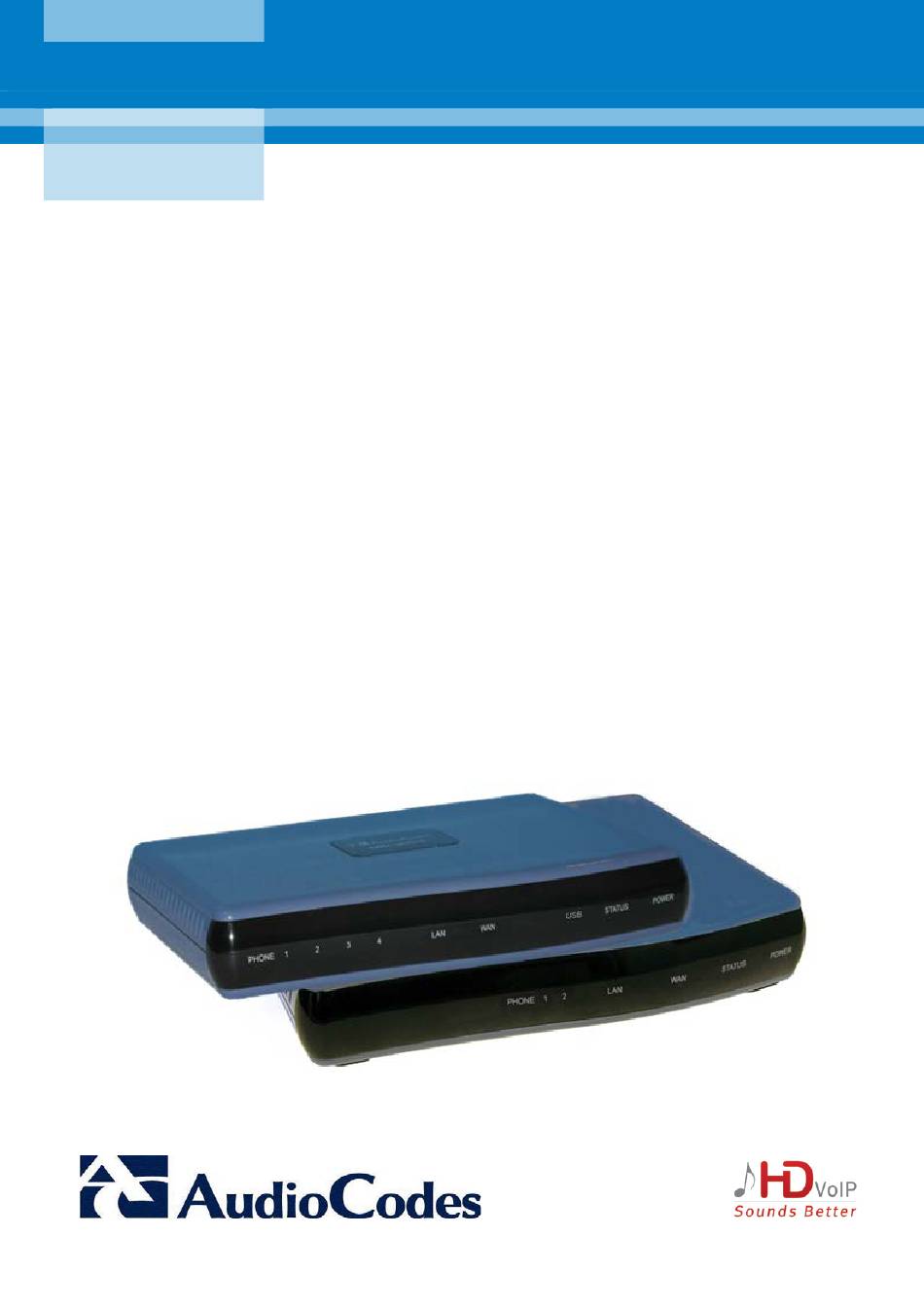

- Page 1 AudioCodes CPE & Access Gateway Products MP-20x Multimedia Home Gateway Quick Guide MediaPack 20x for BroadSoft’s BroadCloud™ PacketSmart™ Monitoring Version 4.4.4 Document #: LTRT-25313...
-
Page 3: Table Of Contents
Quick Guide Contents Table of Contents Before Installing ....................9 Cabling and Installing MP-20x ................. 11 Configuring Network Parameters ..............13 Configuring the Device for PacketSmart ............15 Configuring PacketSmart through the Web Interface ..........15 Configuring PacketSmart through the CLI ............18 Upgrading PacketSmart on the Fly ............... - Page 4 PacketSmart Monitoring List of Figures Figure 2-1: Cabling and Installing MP-20x .....................11 Figure 4-1: Login ............................15 Figure 4-2: PacketSmart Configuration ....................16 Figure 4-3: PacketSmart Login Screen ....................20 Figure 4-4: PacketSmart Web Portal – Selecting the Device ..............21 Quick Guide Document #: LTRT-25313...
-
Page 5: List Of Tables
Quick Guide Contents List of Tables Table 2-1: MP-20x LEDs Description .....................12 Table 4-1: PacketSmart Configuration Parameters Description ............17 Version 4.4.4 MediaPack 20x... - Page 6 PacketSmart Monitoring This page is intentionally left blank. Quick Guide Document #: LTRT-25313...
-
Page 7: Weee Eu Directive
Customer Support Customer technical support and services are provided by AudioCodes or by an authorized AudioCodes Service Partner. For more information on how to buy technical support for AudioCodes products and for contact information, please visit our Web site at www.audiocodes.com/support. - Page 8 25313 Changes made to PacketSmart chapter. Documentation Feedback AudioCodes continually strives to produce high quality documentation. If you have any comments (suggestions or errors) regarding this document, please fill out the Documentation Feedback form on our Web site at http://www.audiocodes.com/downloads.
-
Page 9: Before Installing
Quick Guide 1. Before Installing Before Installing Congratulations on purchasing your AudioCodes MediaPack 20x. Before you begin using the device, make sure that the following items are included in the shipped box: AudioCodes' MP-20x A 12V AC/DC power cord adaptor (use only supplied) ... - Page 10 PacketSmart Monitoring This page is intentionally left blank. Quick Guide Document #: LTRT-25313...
-
Page 11: Cabling And Installing Mp-20X
Quick Guide 2. Cabling and Installing MP-20x Cabling and Installing MP-20x The procedure below describes how to cable and install the MP-20x to enable BroadCloud PacketSmart monitoring. To cable and install MP-20x: Connect the MP-20x's Ethernet connector labeled WAN to your router, using the Ethernet cable. -
Page 12: Table 2-1: Mp-20X Leds Description
PacketSmart Monitoring MP-20x provides LEDs on the front panel for indicating various operating status, as described in the table below: Table 2-1: MP-20x LEDs Description Color State Description Green Power received by MP-20x POWER MP-20x has been powered off Green System start-up successful STATUS Reboot (automatic, by default) -
Page 13: Configuring Network Parameters
Quick Guide 3. Configuring Network Parameters Configuring Network Parameters The procedure below describes how to configure the Network parameters. To configure network parameters: On your PC, verify that the Local Area Connection status is 'Connected', by clicking Start > Settings > Network Connections, and then double-clicking the Local Area Connection icon. - Page 14 PacketSmart Monitoring This page is intentionally left blank. Quick Guide Document #: LTRT-25313...
-
Page 15: Configuring The Device For Packetsmart
Quick Guide 4. Configuring the Device for PacketSmart Configuring the Device for PacketSmart The device can be configured for PacketSmart through the Web interface or the CLI. Note: PacketSmart is only applicable to MP-202R and MP-204R devices. Configuring PacketSmart through the Web Interface This section shows how to configure PacketSmart through the Web interface. -
Page 16: Figure 4-2: Packetsmart Configuration
PacketSmart Monitoring Figure 4-2: PacketSmart Configuration Quick Guide Document #: LTRT-25313... -
Page 17: Table 4-1: Packetsmart Configuration Parameters Description
Quick Guide 4. Configuring the Device for PacketSmart Use the table below as reference when configuring PacketSmart. Table 4-1: PacketSmart Configuration Parameters Description Parameter Description Enabled Select this option to enable the embedded PacketSmart probe software. • Disabled (Default) • Enabled PacketSmart SW Version (Read-only) Displays the PacketSmart probe software... -
Page 18: Configuring Packetsmart Through The Cli
PacketSmart Monitoring Configuring PacketSmart through the CLI You can alternatively configure PacketSmart through the device's Command Line Interface (CLI). To configure PacketSmart through the CLI: Open a Telnet connection to the MP-20x device (Default: telnet 192.168.2.1) Log in with administrator privileges (Default: admin/admin) Run the following commands under the MP20x>... -
Page 19: Upgrading Packetsmart On The Fly
Quick Guide 4. Configuring the Device for PacketSmart Upgrading PacketSmart on the Fly It is now possible to automatically upgrade PacketSmart by either: Changing the configuration_upgrade_server_url parameter in the configuration file on the Device Management server (DMS) Running CLI command. ... -
Page 20: Accessing The Packetsmart Web Portal
PacketSmart Monitoring Accessing the PacketSmart Web Portal This section shows how to access BroadSoft's PacketSmart Web Portal and find analyzed information. To access the PacketSmart Web Portal: Open a Web browser and in the URL field, enter https://packetsmart.broadsoft.com/dashboard/ In the PacketSmart Login screen that opens, enter the required fields and then click the Login button. -
Page 21: Figure 4-4: Packetsmart Web Portal - Selecting The Device
Quick Guide 4. Configuring the Device for PacketSmart Figure 4-4: PacketSmart Web Portal – Selecting the Device Note: Active devices are indicated with a green tick. For more information, visit the PacketSmart Help website: https://packetsmart.broadsoft.com/help/ Version 4.4.4 MediaPack 20x... - Page 22 AudioCodes CPE & Access Gateway Products MP-20x Multimedia Home Gateway Quick Guide MediaPack 20x for BroadSoft’s BroadCloud™ PacketSmart™ Monitoring Version 4.4.4 Document #: LTRT-25313 www.audiocodes.com...
