Invacare HomeFillII AW Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Service Manual
HomeFill
II AW
®
Compressor

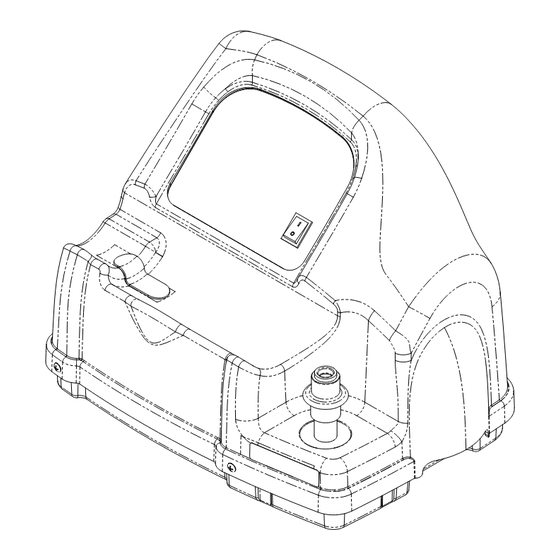

NOTE: Compressor shown without cylinder attached.
DEALER: Keep this manual. The
procedures in this manual MUST be
performed by a qualified technician.
For more information regarding
Invacare products, parts, and services,
please visit www.invacare.com
