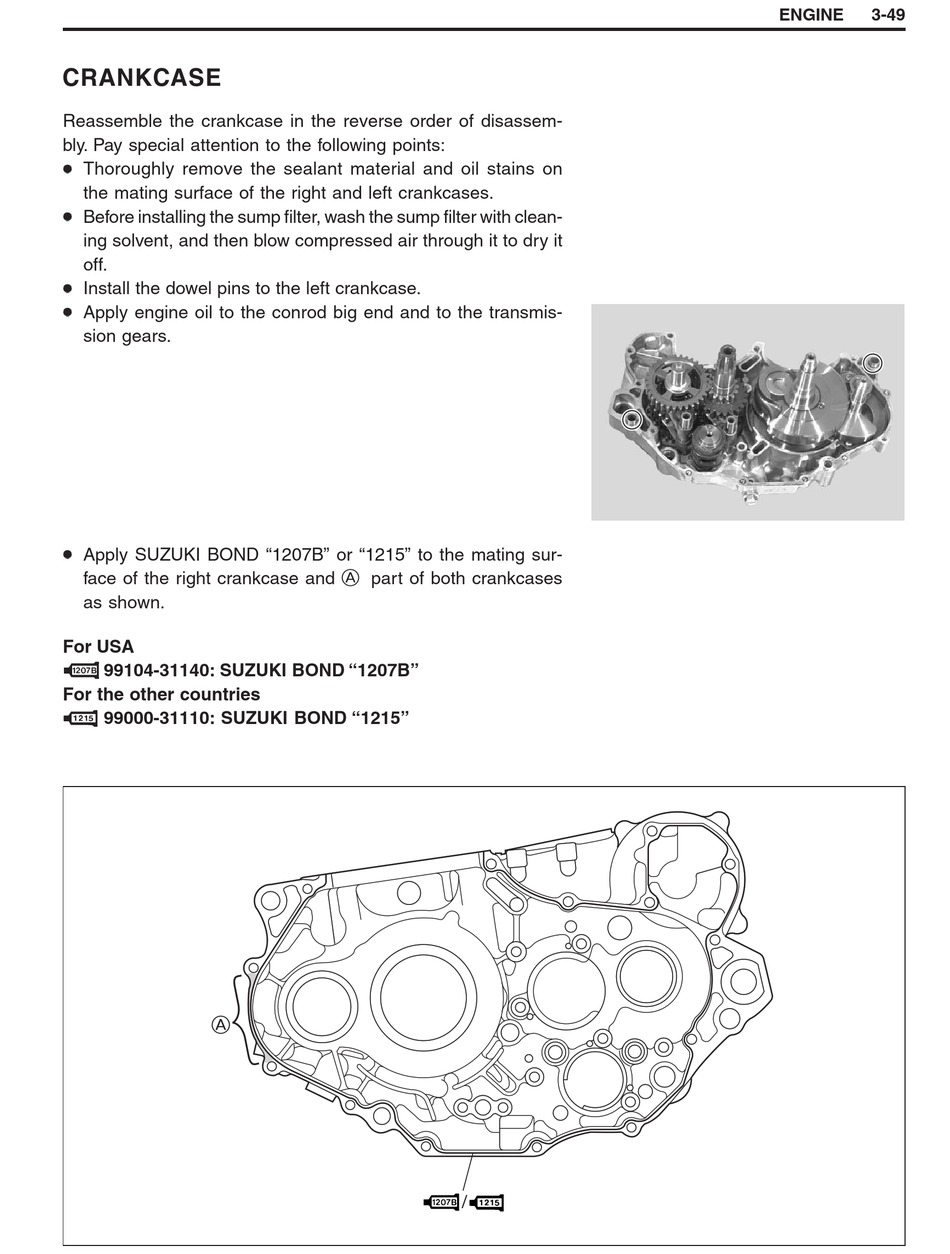

CRANKCASE

Reassemble the crankcase in the reverse order of disassem-
bly. Pay special attention to the following points:
Thoroughly remove the sealant material and oil stains on
the mating surface of the right and left crankcases.
Before installing the sump filter, wash the sump filter with clean-
ing solvent, and then blow compressed air through it to dry it
off.
Install the dowel pins to the left crankcase.
Apply engine oil to the conrod big end and to the transmis-
sion gears.
Apply SUZUKI BOND "1207B" or "1215" to the mating sur-
face of the right crankcase and A part of both crankcases
as shown.
For USA
99104-31140: SUZUKI BOND "1207B"
For the other countries
99000-31110: SUZUKI BOND "1215"
A
/
ENGINE 3-49
