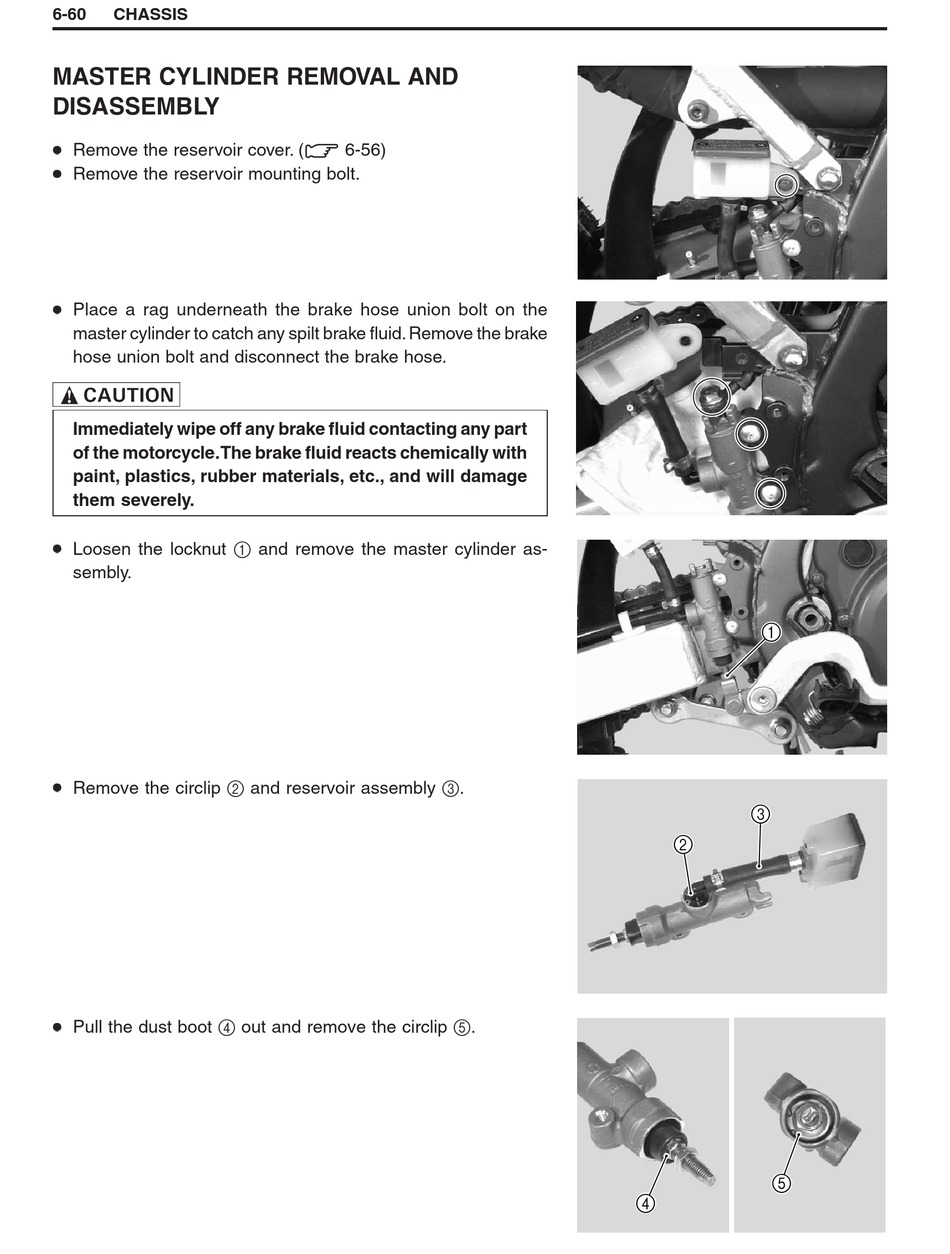

6-60 CHASSIS
MASTER CYLINDER REMOVAL AND
DISASSEMBLY
Remove the reservoir cover. (
Remove the reservoir mounting bolt.
Place a rag underneath the brake hose union bolt on the
master cylinder to catch any spilt brake fluid. Remove the brake
hose union bolt and disconnect the brake hose.
Immediately wipe off any brake fluid contacting any part
of the motorcycle. The brake fluid reacts chemically with
paint, plastics, rubber materials, etc., and will damage
them severely.
Loosen the locknut 1 and remove the master cylinder as-
sembly.
Remove the circlip 2 and reservoir assembly 3.
Pull the dust boot 4 out and remove the circlip 5.
6-56)
1
3
2
5
4
