4-4 FUEL AND LUBRICATION SYSTEM

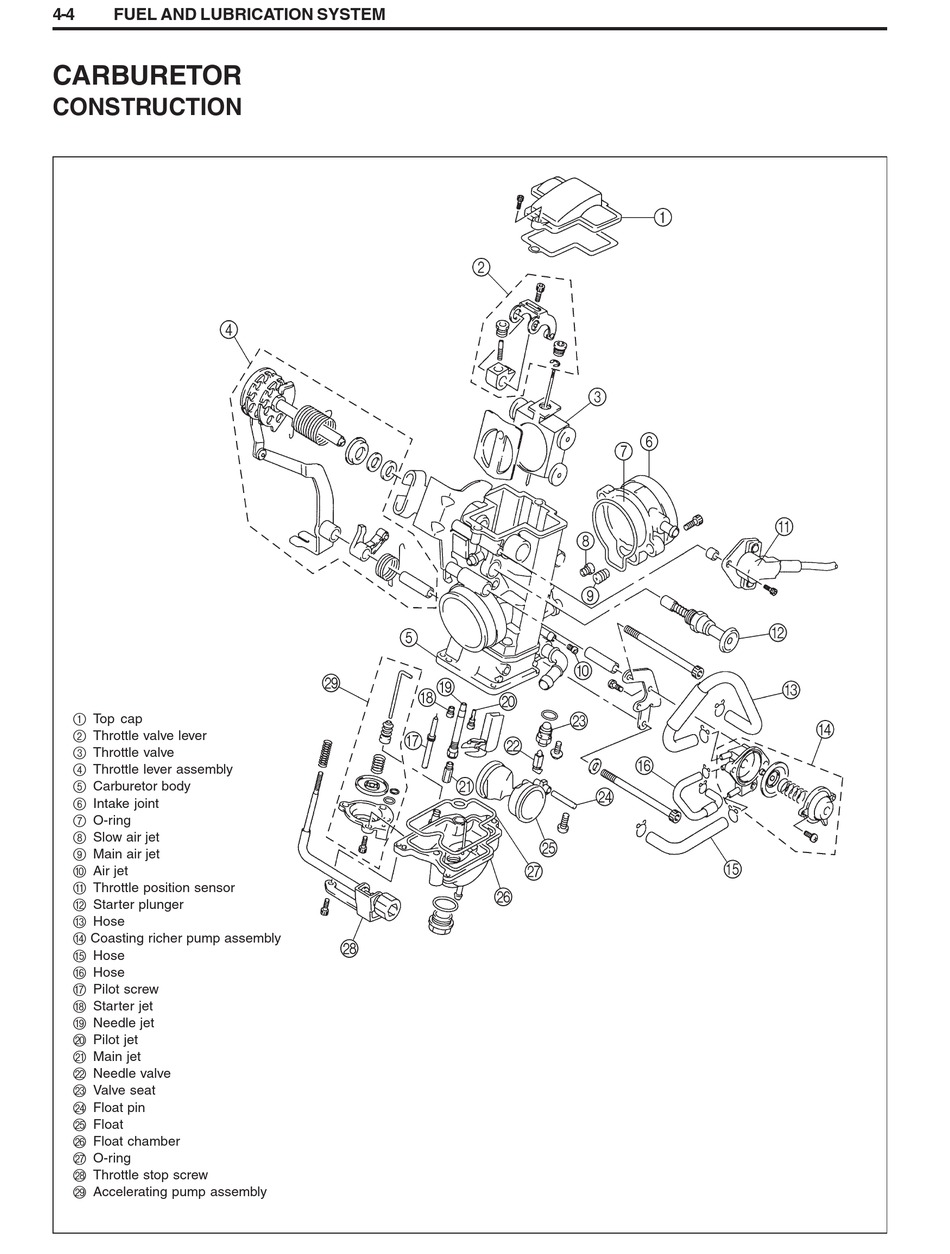

CARBURETOR

CONSTRUCTION

1 Top cap
2 Throttle valve lever
3 Throttle valve
4 Throttle lever assembly
5 Carburetor body
6 Intake joint
7 O-ring
8 Slow air jet
9 Main air jet
0 Air jet
A Throttle position sensor
B Starter plunger
C Hose
D Coasting richer pump assembly
E Hose
F Hose
G Pilot screw
H Starter jet
I Needle jet
J Pilot jet
K Main jet
L Needle valve
M Valve seat
N Float pin
O Float
P Float chamber
Q O-ring
R Throttle stop screw
S Accelerating pump assembly
