COOLING SYSTEM 5-3

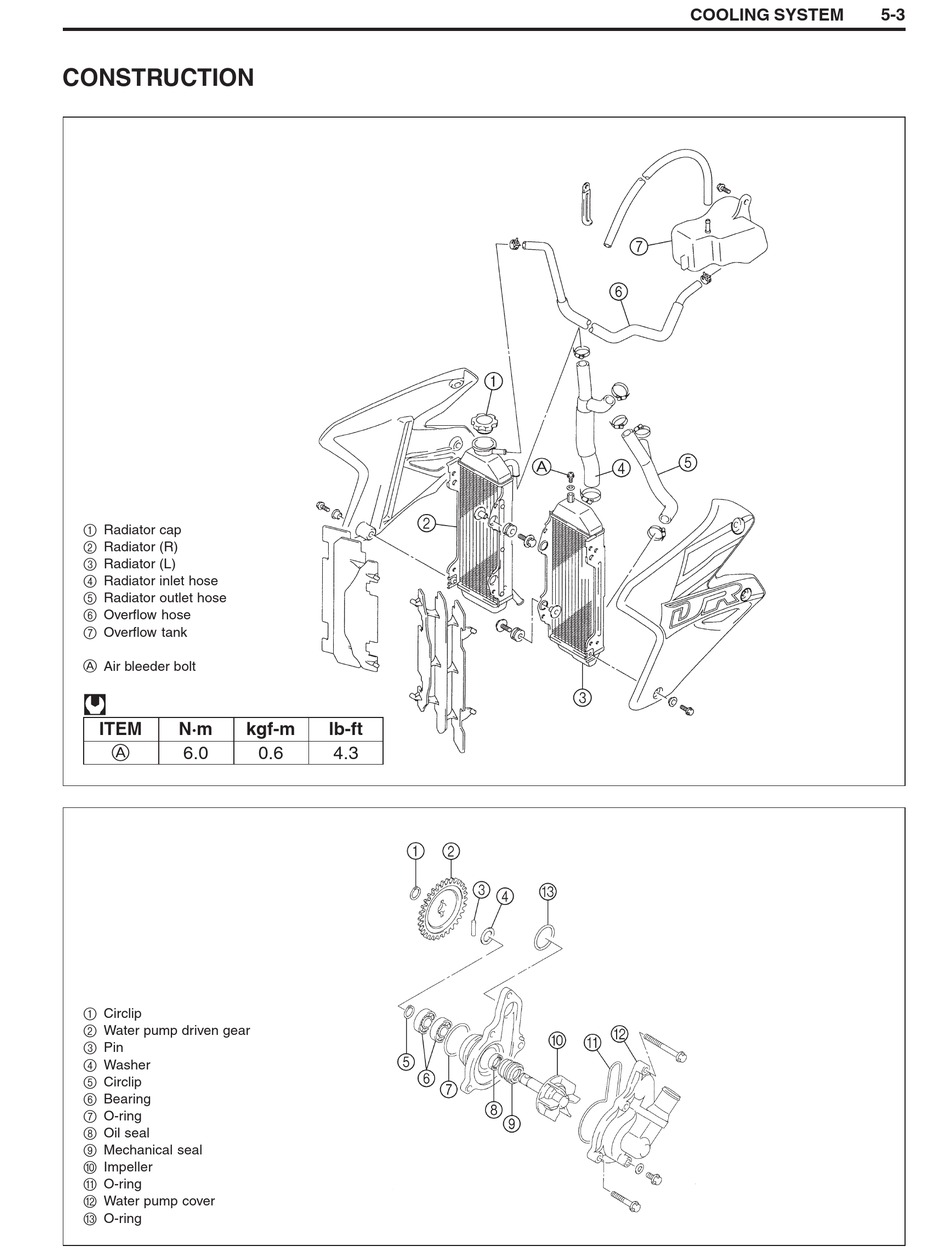

CONSTRUCTION

1 Radiator cap
2 Radiator (R)
3 Radiator (L)
4 Radiator inlet hose
5 Radiator outlet hose
6 Overflow hose
7 Overflow tank
A Air bleeder bolt
ITEM N·m kgf-m lb-ft
A
6.0 0.6 4.3
1 Circlip
2 Water pump driven gear
3 Pin
4 Washer
5 Circlip
6 Bearing
7 O-ring
8 Oil seal
9 Mechanical seal
0 Impeller
A O-ring
B Water pump cover
C O-ring
