Inspection - Suzuki drz 400E Service Manual

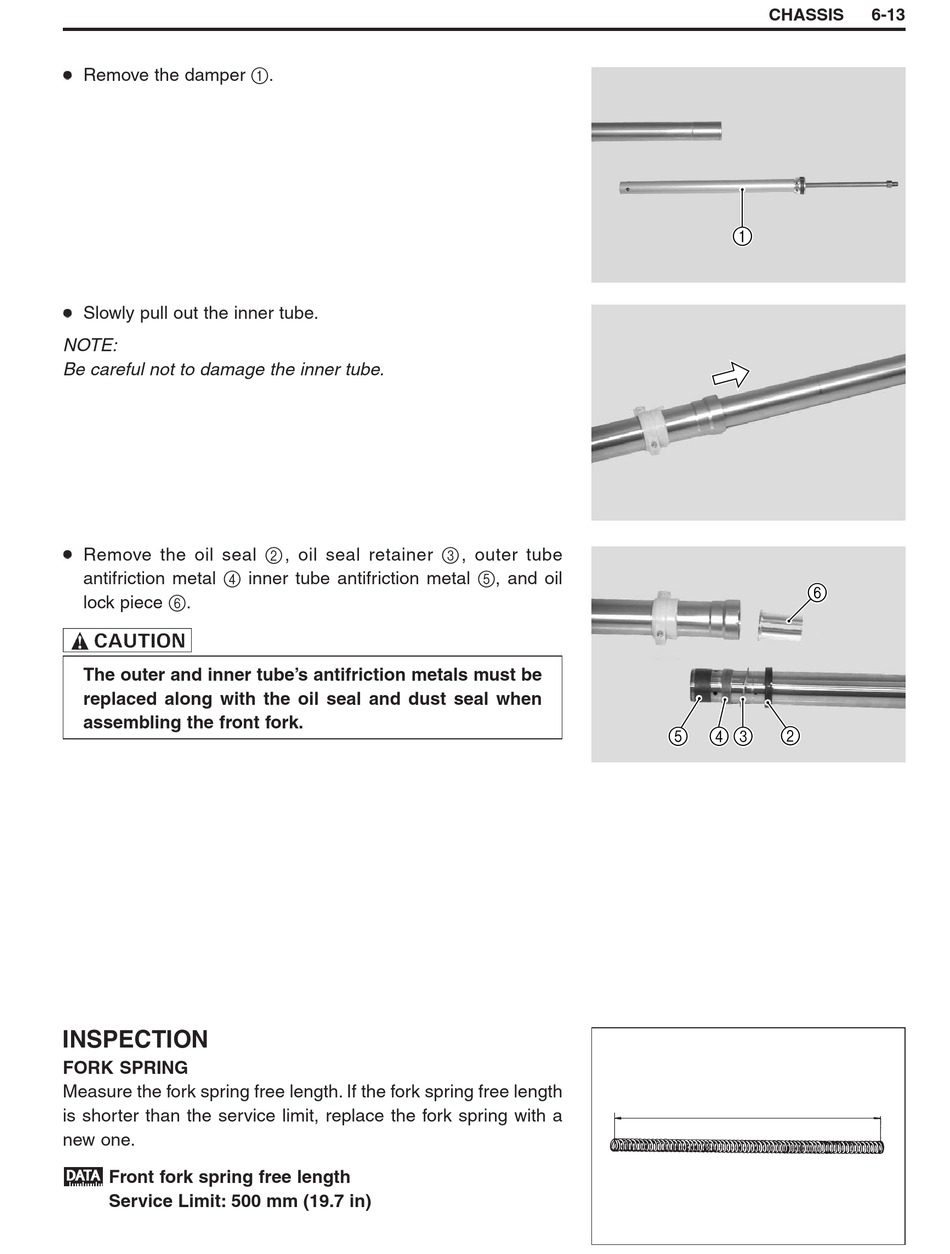

Remove the damper 1.
Slowly pull out the inner tube.
NOTE:
Be careful not to damage the inner tube.
Remove the oil seal 2 , oil seal retainer 3 , outer tube
antifriction metal 4 inner tube antifriction metal 5, and oil
lock piece 6.
The outer and inner tube's antifriction metals must be
replaced along with the oil seal and dust seal when
assembling the front fork.

INSPECTION

FORK SPRING
Measure the fork spring free length. If the fork spring free length
is shorter than the service limit, replace the fork spring with a
new one.
Front fork spring free length
Service Limit: 500 mm (19.7 in)
CHASSIS
1
6
3 2
3 5 3 4 3 3
6-13
