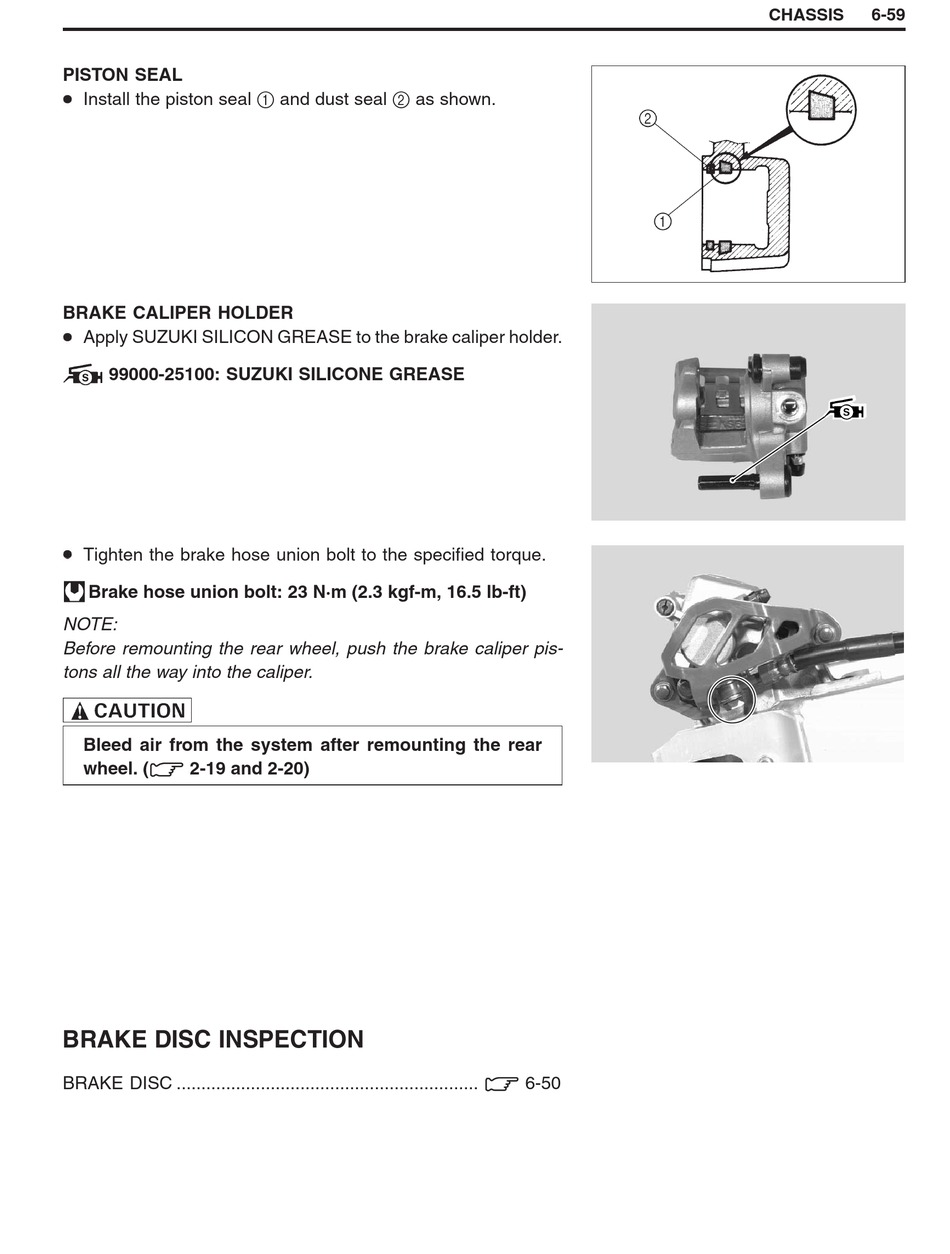

PISTON SEAL
Install the piston seal 1 and dust seal 2 as shown.
BRAKE CALIPER HOLDER
Apply SUZUKI SILICON GREASE to the brake caliper holder.
99000-25100: SUZUKI SILICONE GREASE
Tighten the brake hose union bolt to the specified torque.
Brake hose union bolt: 23 N·m (2.3 kgf-m, 16.5 lb-ft)
NOTE:
Before remounting the rear wheel, push the brake caliper pis-
tons all the way into the caliper.
Bleed air from the system after remounting the rear
wheel. ( 2-19 and 2-20)

BRAKE DISC INSPECTION

BRAKE DISC ............................................................. 6-50
CHASSIS 6-59
