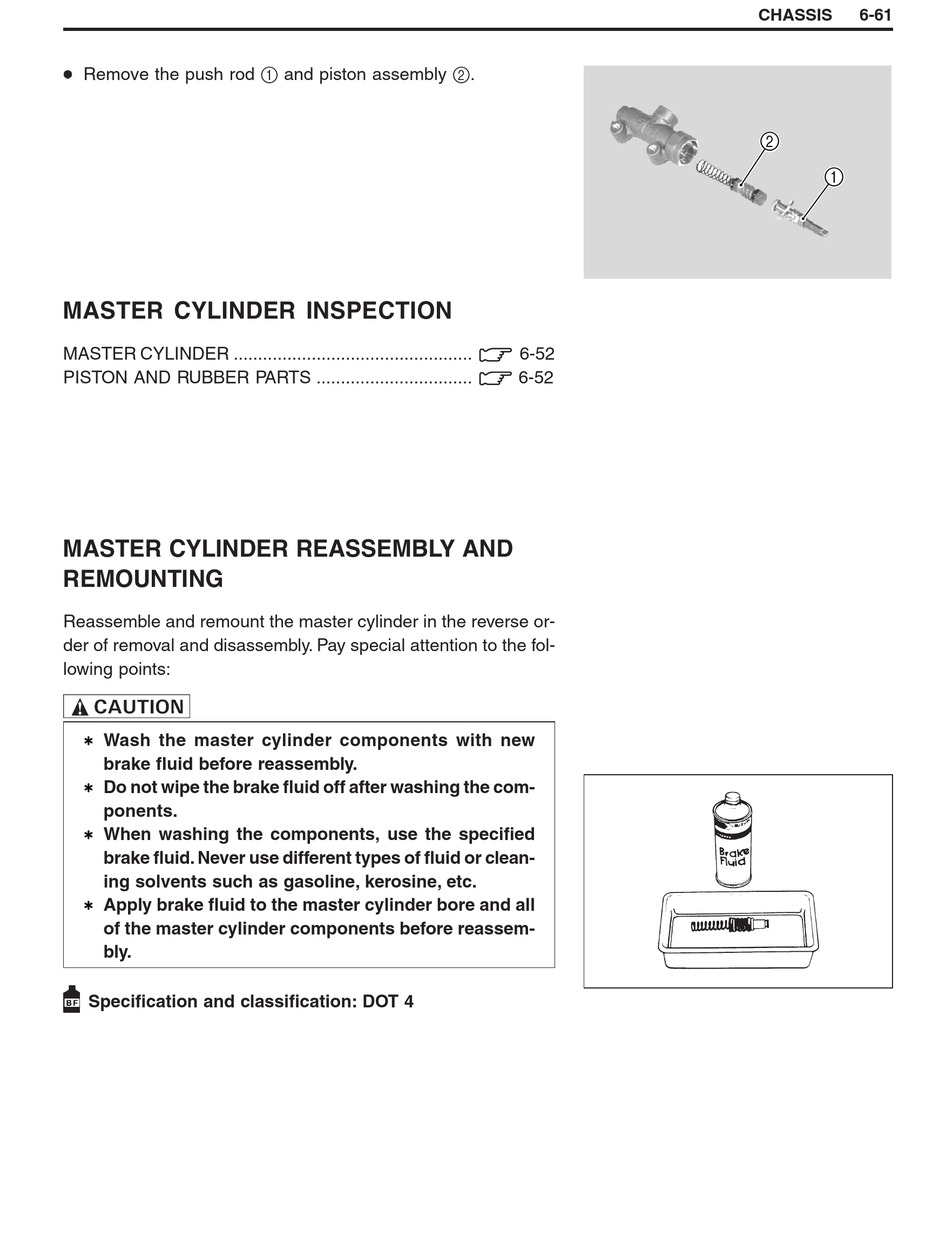

Remove the push rod 1 and piston assembly 2.

MASTER CYLINDER INSPECTION

MASTER CYLINDER .................................................
PISTON AND RUBBER PARTS ................................
MASTER CYLINDER REASSEMBLY AND
REMOUNTING
Reassemble and remount the master cylinder in the reverse or-
der of removal and disassembly. Pay special attention to the fol-
lowing points:
Wash the master cylinder components with new
brake fluid before reassembly.
Do not wipe the brake fluid off after washing the com-
ponents.
When washing the components, use the specified
brake fluid. Never use different types of fluid or clean-
ing solvents such as gasoline, kerosine, etc.
Apply brake fluid to the master cylinder bore and all
of the master cylinder components before reassem-
bly.
Specification and classification: DOT 4
6-52
6-52
