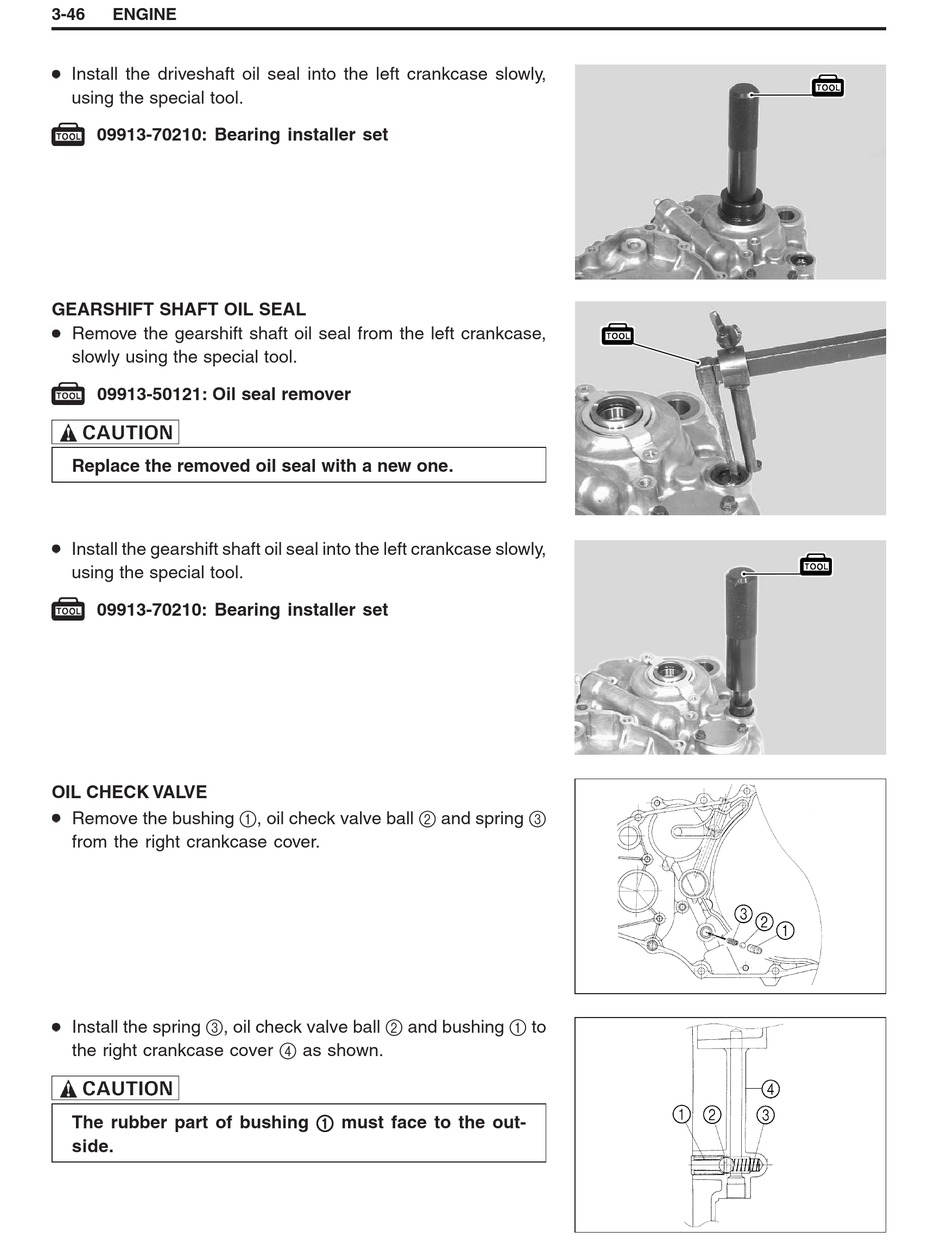

ENGINE
Install the driveshaft oil seal into the left crankcase slowly,
using the special tool.
09913-70210: Bearing installer set
GEARSHIFT SHAFT OIL SEAL
Remove the gearshift shaft oil seal from the left crankcase,
slowly using the special tool.
09913-50121: Oil seal remover
Replace the removed oil seal with a new one.
Install the gearshift shaft oil seal into the left crankcase slowly,
using the special tool.
09913-70210: Bearing installer set
OIL CHECK VALVE
Remove the bushing 1, oil check valve ball 2 and spring 3
from the right crankcase cover.
Install the spring 3, oil check valve ball 2 and bushing 1 to
the right crankcase cover 4 as shown.
The rubber part of bushing 1 1 1 1 1 must face to the out-
side.
