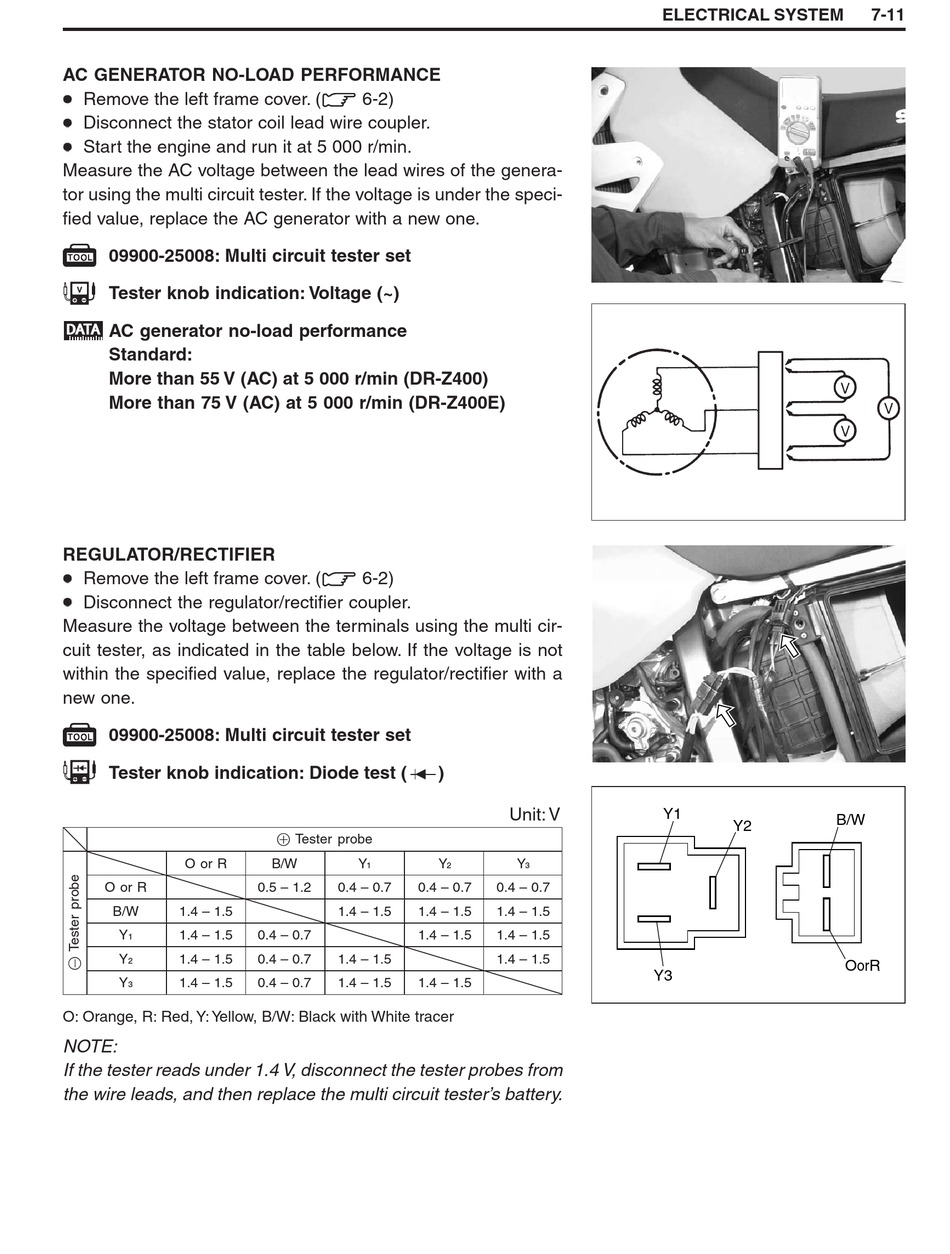

AC GENERATOR NO-LOAD PERFORMANCE
Remove the left frame cover. (
Disconnect the stator coil lead wire coupler.
Start the engine and run it at 5 000 r/min.
Measure the AC voltage between the lead wires of the genera-
tor using the multi circuit tester. If the voltage is under the speci-
fied value, replace the AC generator with a new one.
09900-25008: Multi circuit tester set
Tester knob indication: Voltage (~)
AC generator no-load performance
Standard:
More than 55 V (AC) at 5 000 r/min (DR-Z400)
More than 75 V (AC) at 5 000 r/min (DR-Z400E)
REGULATOR/RECTIFIER
Remove the left frame cover. (
Disconnect the regulator/rectifier coupler.
Measure the voltage between the terminals using the multi cir-
cuit tester, as indicated in the table below. If the voltage is not
within the specified value, replace the regulator/rectifier with a
new one.
09900-25008: Multi circuit tester set
Tester knob indication: Diode test (
O or R
O or R
B/W 1.4 – 1.5
Y 1.4 – 1.5
1
Y 1.4 – 1.5
2
Y 1.4 – 1.5
3
O: Orange, R: Red, Y: Yellow, B/W: Black with White tracer
NOTE:
If the tester reads under 1.4 V, disconnect the tester probes from
the wire leads, and then replace the multi circuit tester's battery.
6-2)
6-2)
)
+ Tester probe
B/W Y Y
1
0.5 – 1.2 0.4 – 0.7 0.4 – 0.7
1.4 – 1.5 1.4 – 1.5
0.4 – 0.7 1.4 – 1.5
0.4 – 0.7 1.4 – 1.5
0.4 – 0.7 1.4 – 1.5 1.4 – 1.5
Unit: V
Y
2 3
0.4 – 0.7
1.4 – 1.5
1.4 – 1.5
1.4 – 1.5
ELECTRICAL SYSTEM
Y1
Y2
Y3
7-11
B/W
OorR
