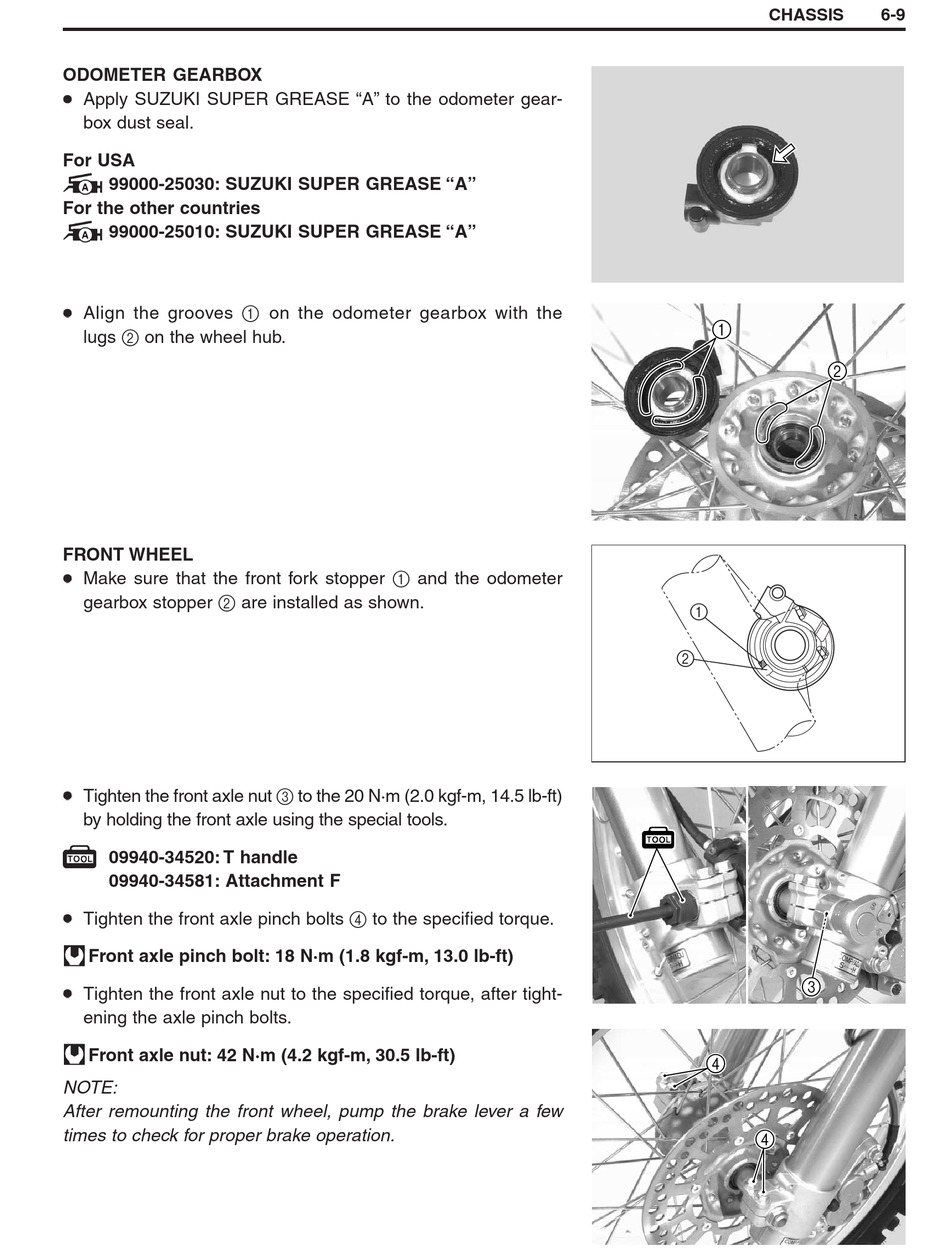

Suzuki drz 400E Service Manual page 140

ODOMETER GEARBOX
Apply SUZUKI SUPER GREASE "A" to the odometer gear-
box dust seal.
For USA
99000-25030: SUZUKI SUPER GREASE "A"
For the other countries
99000-25010: SUZUKI SUPER GREASE "A"
Align the grooves 1 on the odometer gearbox with the
lugs 2 on the wheel hub.
FRONT WHEEL
Make sure that the front fork stopper 1 and the odometer
gearbox stopper 2 are installed as shown.
Tighten the front axle nut 3 to the 20 N·m (2.0 kgf-m, 14.5 lb-ft)
by holding the front axle using the special tools.
09940-34520: T handle
09940-34581: Attachment F
Tighten the front axle pinch bolts 4 to the specified torque.
Front axle pinch bolt: 18 N·m (1.8 kgf-m, 13.0 lb-ft)
Tighten the front axle nut to the specified torque, after tight-
ening the axle pinch bolts.
Front axle nut: 42 N·m (4.2 kgf-m, 30.5 lb-ft)
NOTE:
After remounting the front wheel, pump the brake lever a few
times to check for proper brake operation.
CHASSIS
1
2
1
2
3
4
4
6-9
