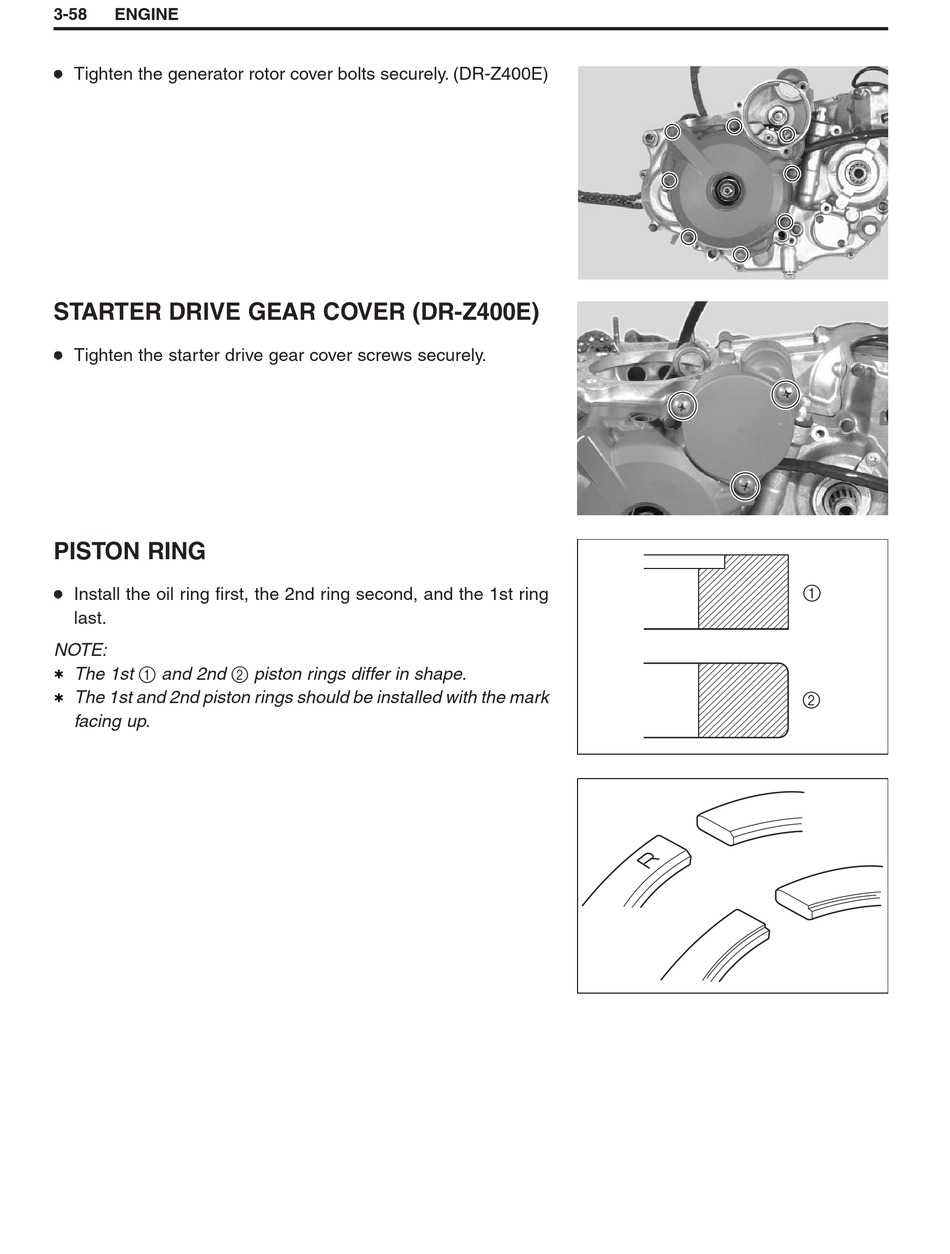

3-58 ENGINE
Tighten the generator rotor cover bolts securely. (DR-Z400E)

STARTER DRIVE GEAR COVER (DR-Z400E)

Tighten the starter drive gear cover screws securely.

PISTON RING

Install the oil ring first, the 2nd ring second, and the 1st ring
last.
NOTE:
The 1st 1 and 2nd 2 piston rings differ in shape.
The 1st and 2nd piston rings should be installed with the mark
facing up.
1
2
