SERVICE WORK ON THE CHASSIS

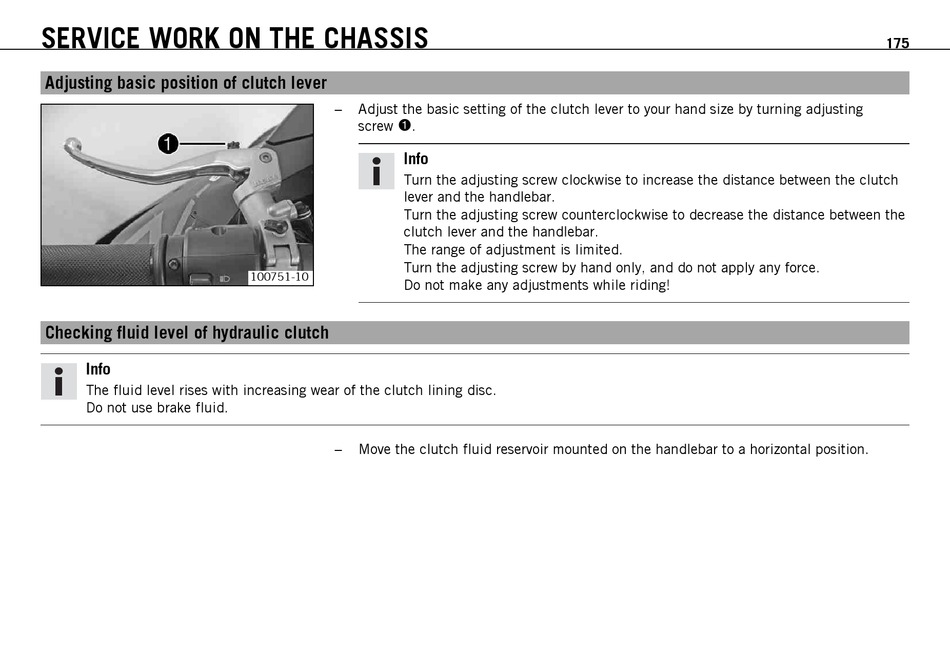

Adjusting basic position of clutch lever
10.16
Checking fluid level of hydraulic clutch
10.17
Info
The fluid level rises with increasing wear of the clutch lining disc.
Do not use brake fluid.
–
Adjust the basic setting of the clutch lever to your hand size by turning adjusting
screw
.
1
Info
Turn the adjusting screw clockwise to increase the distance between the clutch
lever and the handlebar.
Turn the adjusting screw counterclockwise to decrease the distance between the
clutch lever and the handlebar.
The range of adjustment is limited.
Turn the adjusting screw by hand only, and do not apply any force.
100751-10
Do not make any adjustments while riding!
–
Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
175
