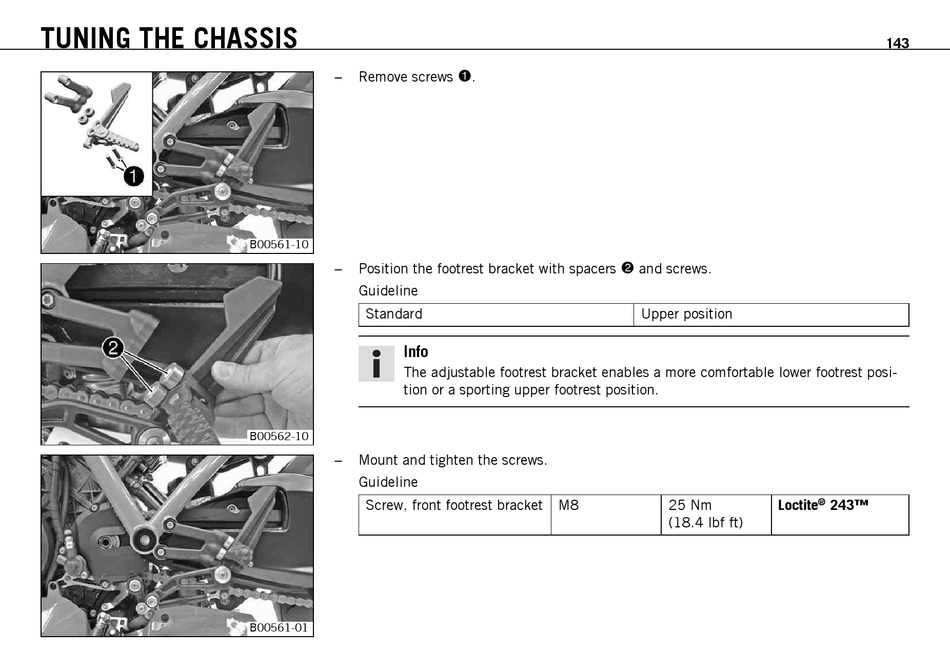

TUNING THE CHASSIS
–
Remove screws
B00561-10
–
Position the footrest bracket with spacers
Guideline
Standard
Info
The adjustable footrest bracket enables a more comfortable lower footrest posi-
tion or a sporting upper footrest position.
B00562-10
–
Mount and tighten the screws.
Guideline
Screw, front footrest bracket M8
B00561-01
.
1
2
and screws.
Upper position
25 Nm Loctite ®
(18.4 lbf ft)
143
243™
