TUNING THE CHASSIS

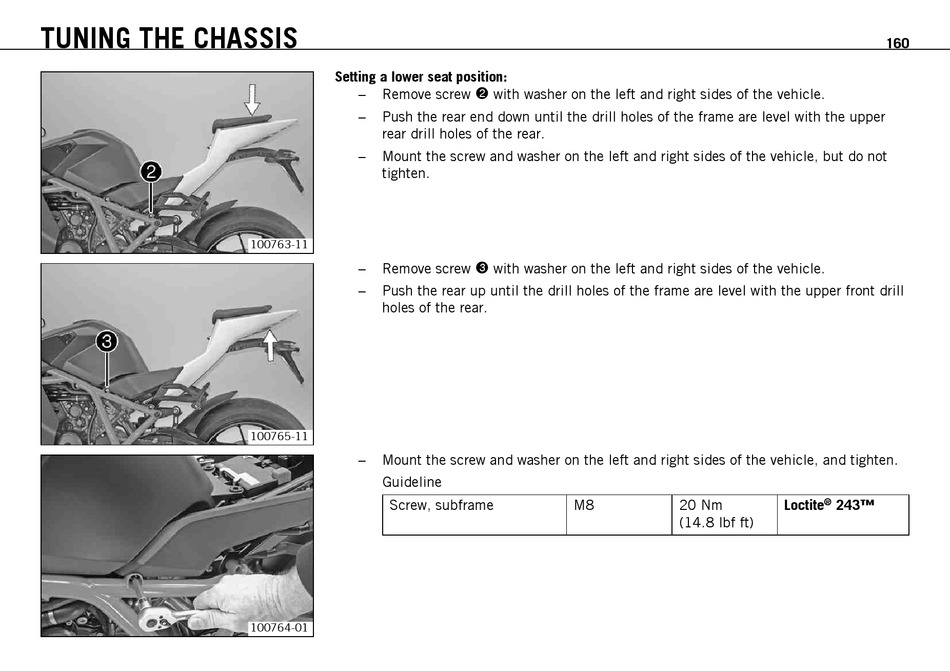

Setting a lower seat position:
–
Remove screw
–
Push the rear end down until the drill holes of the frame are level with the upper
rear drill holes of the rear.
–
Mount the screw and washer on the left and right sides of the vehicle, but do not
tighten.
100763-11
–
Remove screw
–
Push the rear up until the drill holes of the frame are level with the upper front drill
holes of the rear.
100765-11
–
Mount the screw and washer on the left and right sides of the vehicle, and tighten.
Guideline
Screw, subframe
100764-01
with washer on the left and right sides of the vehicle.
2
with washer on the left and right sides of the vehicle.
3
M8 20 Nm Loctite ® 243™
(14.8 lbf ft)
