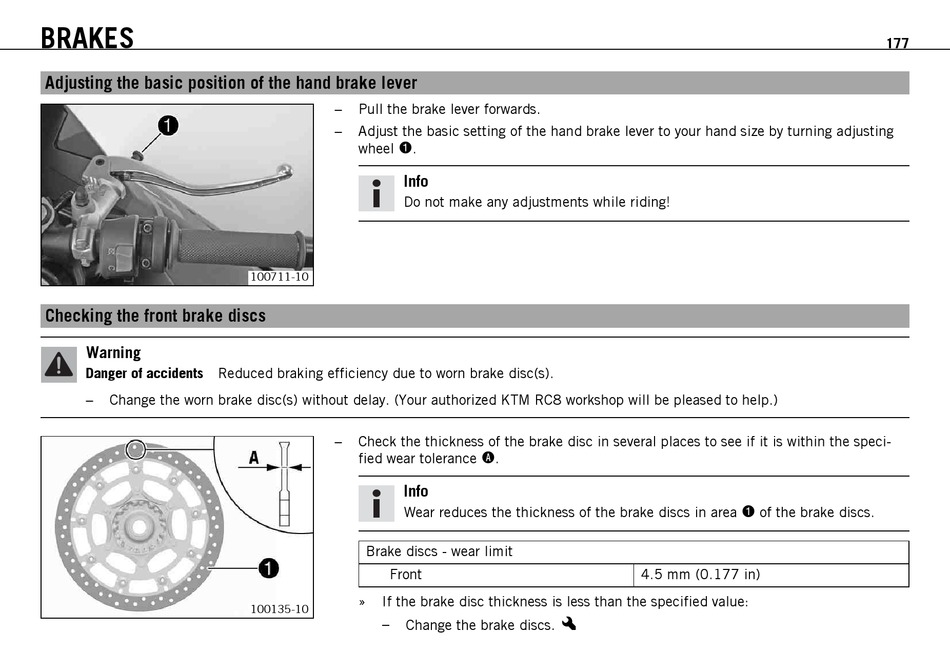

BRAKES

Adjusting the basic position of the hand brake lever

11.1

Checking the front brake discs

11.2
Warning
Danger of accidents Reduced braking efficiency due to worn brake disc(s).
–
Change the worn brake disc(s) without delay. (Your authorized KTM RC8 workshop will be pleased to help.)
–
Pull the brake lever forwards.
–
Adjust the basic setting of the hand brake lever to your hand size by turning adjusting
wheel .
1
Info
Do not make any adjustments while riding!
100711-10
–
Check the thickness of the brake disc in several places to see if it is within the speci-
fied wear tolerance
Info
Wear reduces the thickness of the brake discs in area
Brake discs - wear limit
Front
» If the brake disc thickness is less than the specified value:
100135-10
–
Change the brake discs.
.
A
4.5 mm (0.177 in)
x
177
of the brake discs.
1
