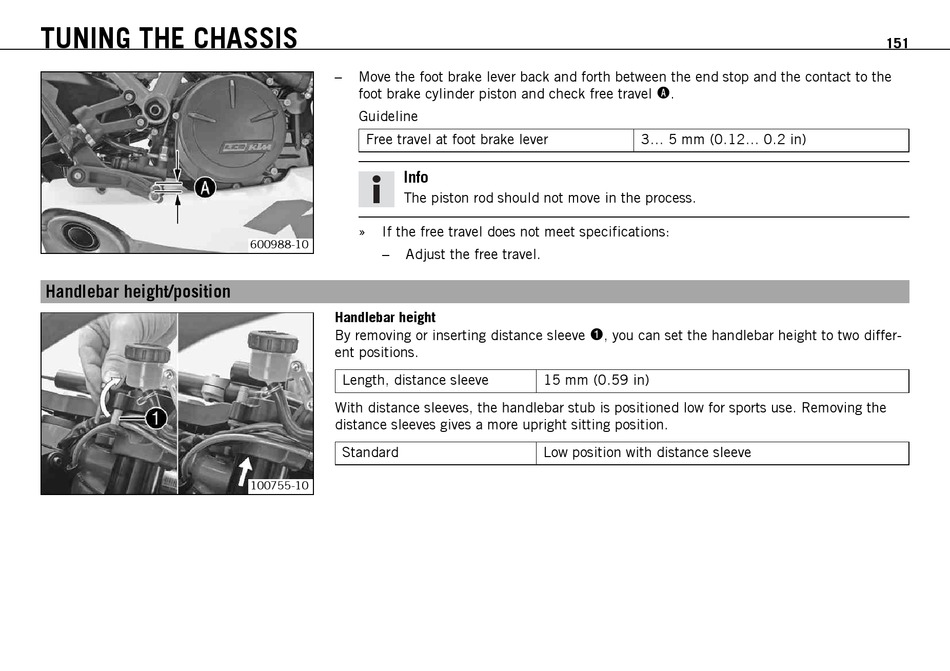

TUNING THE CHASSIS
Handlebar height/position
9.22
–
Move the foot brake lever back and forth between the end stop and the contact to the
foot brake cylinder piston and check free travel
Guideline
Free travel at foot brake lever
Info
The piston rod should not move in the process.
»
If the free travel does not meet specifications:
600988-10
–
Adjust the free travel.
Handlebar height
By removing or inserting distance sleeve
ent positions.
Length, distance sleeve
With distance sleeves, the handlebar stub is positioned low for sports use. Removing the
distance sleeves gives a more upright sitting position.
Standard
100755-10
.
A
3... 5 mm (0.12... 0.2 in)
, you can set the handlebar height to two differ-
1
15 mm (0.59 in)
Low position with distance sleeve
